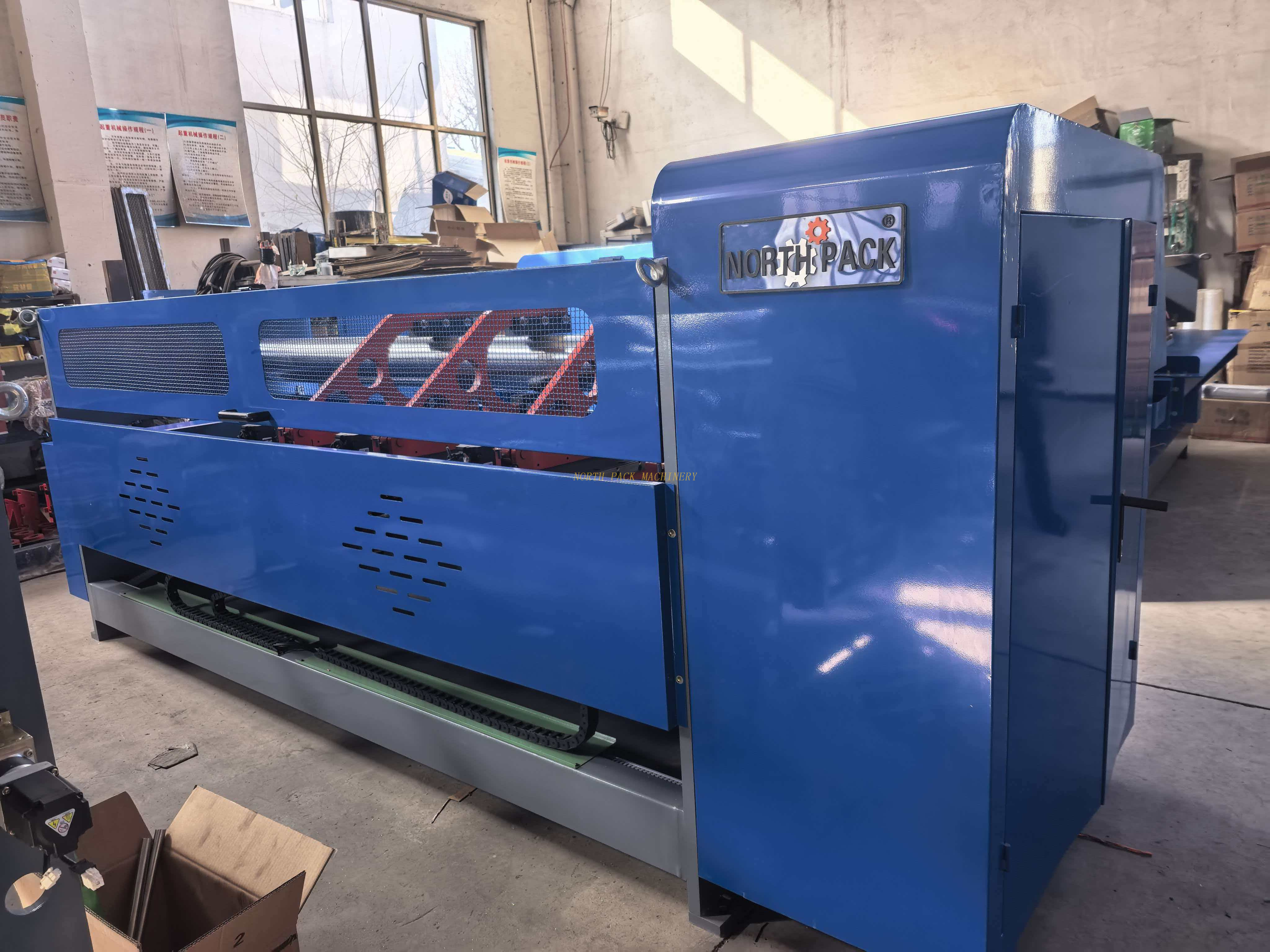

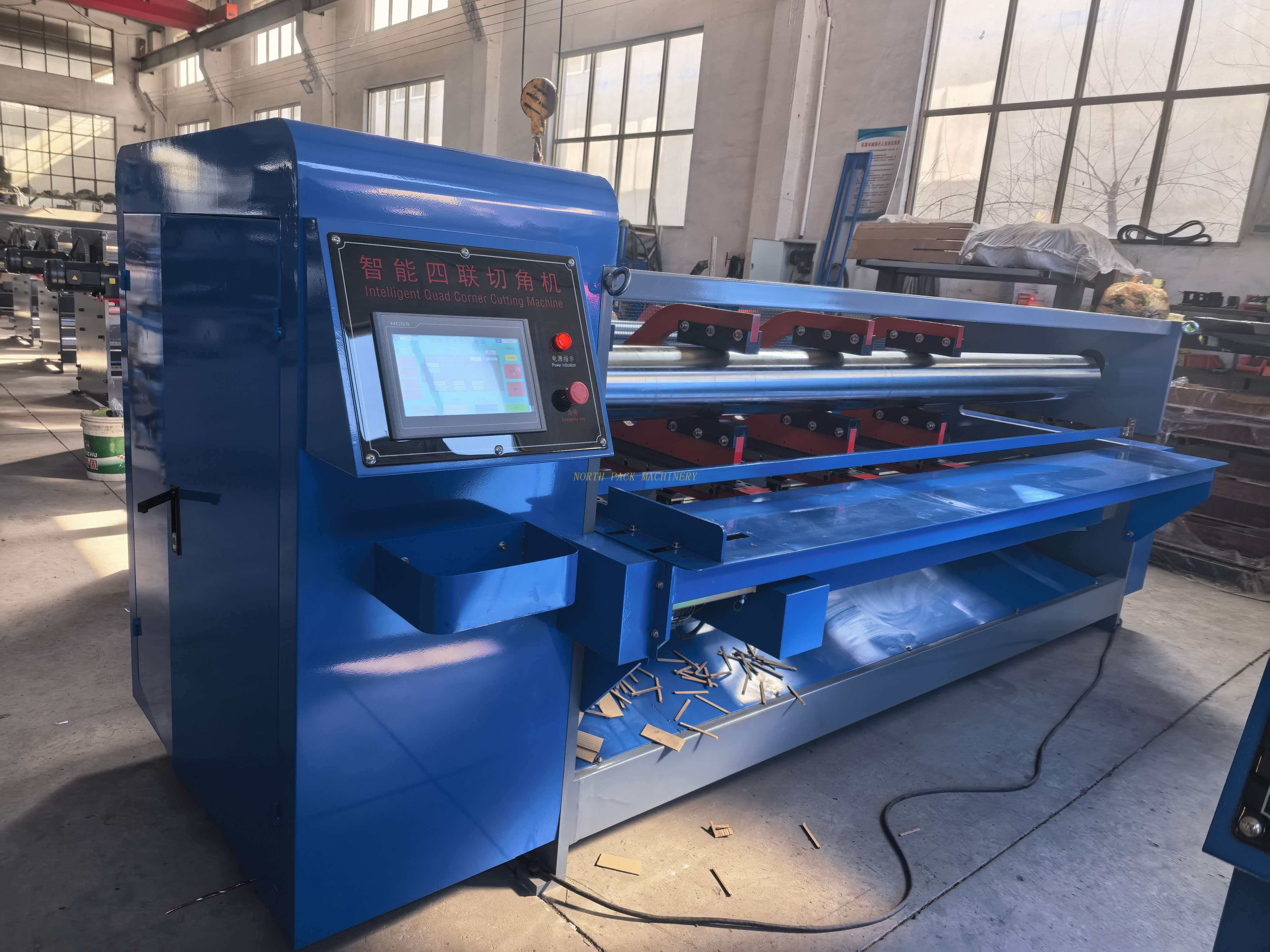

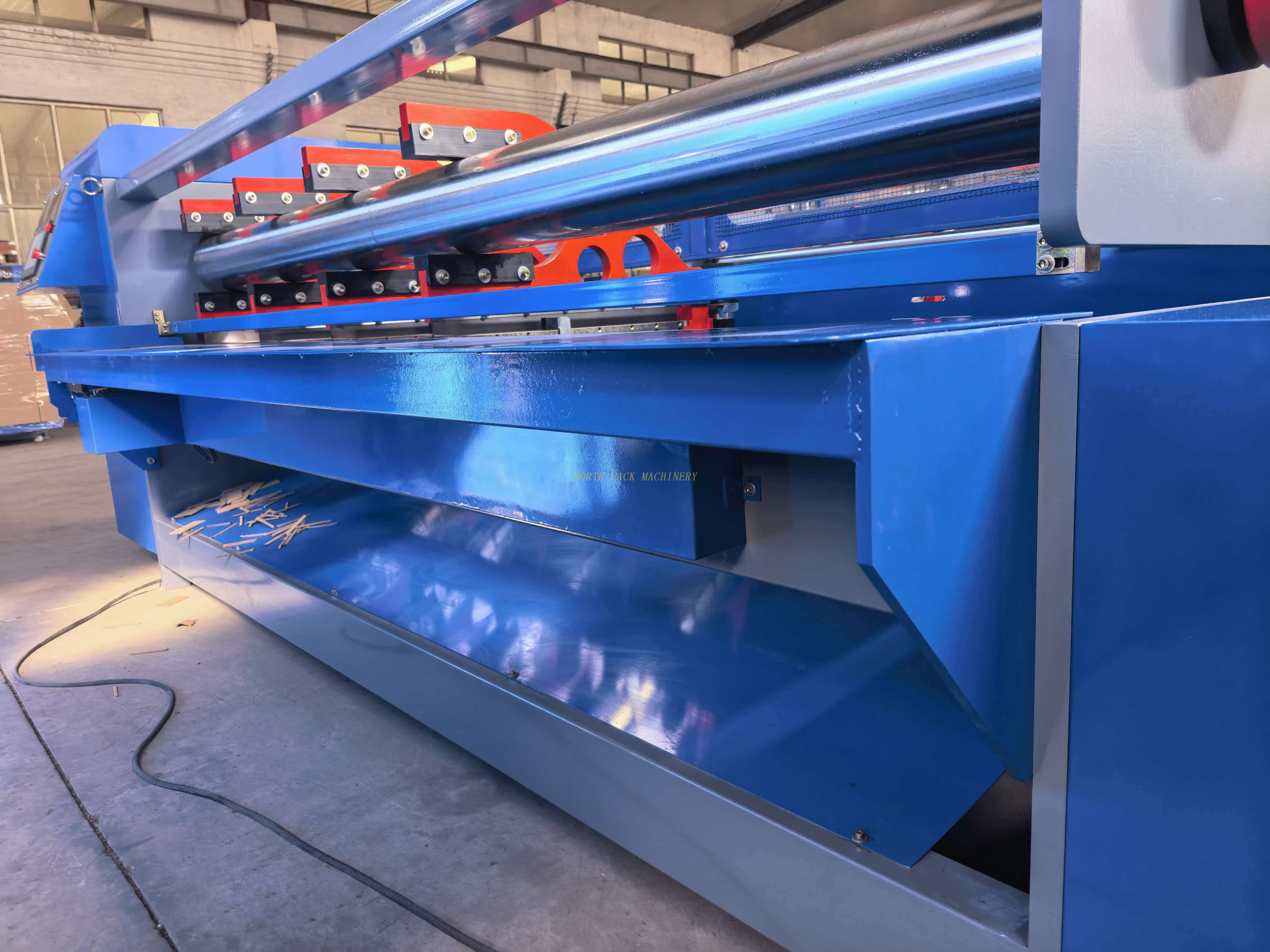

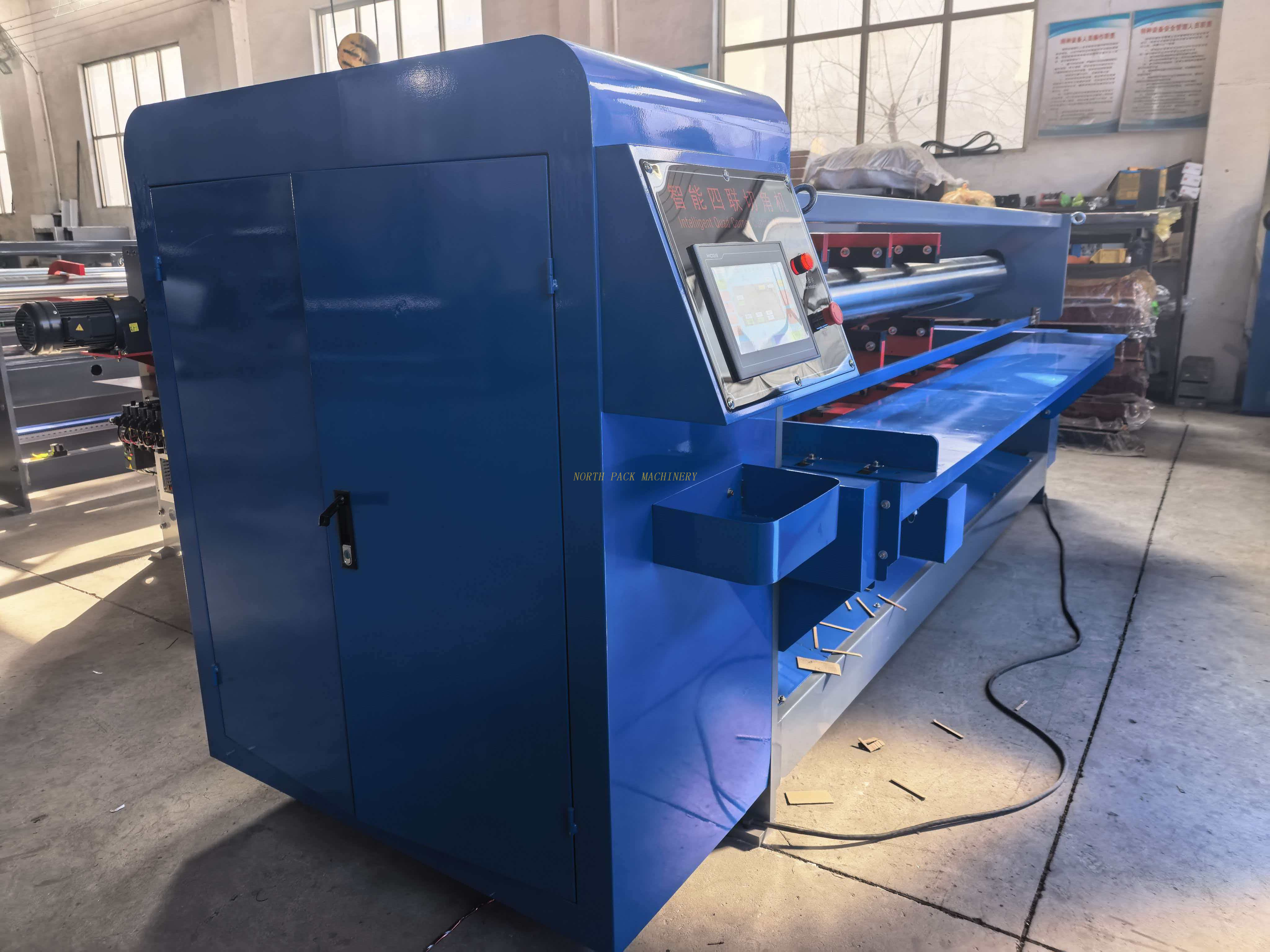

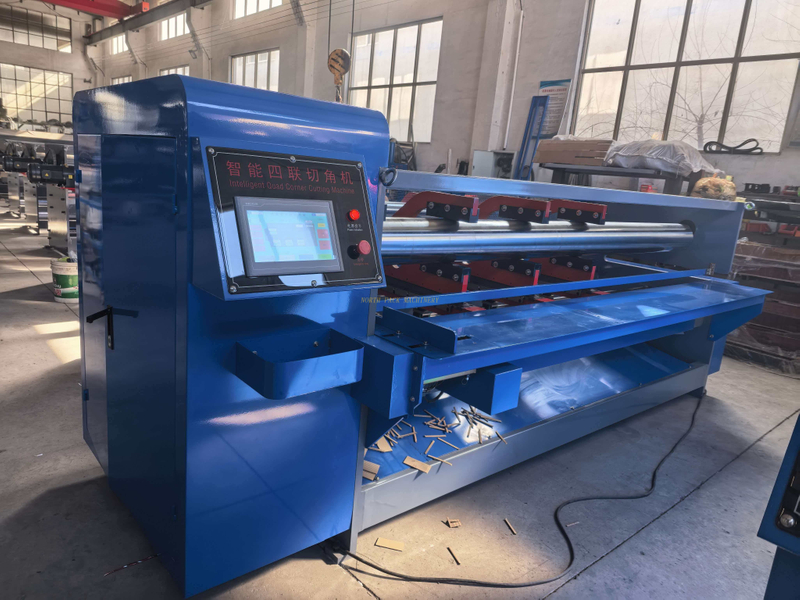

Automatic CNC Intelligent Corner Cutting Machine
Each knife is adjusted by an independent servo motor. The depth of the slot and the length of the tongue are adjusted by a servo motor.

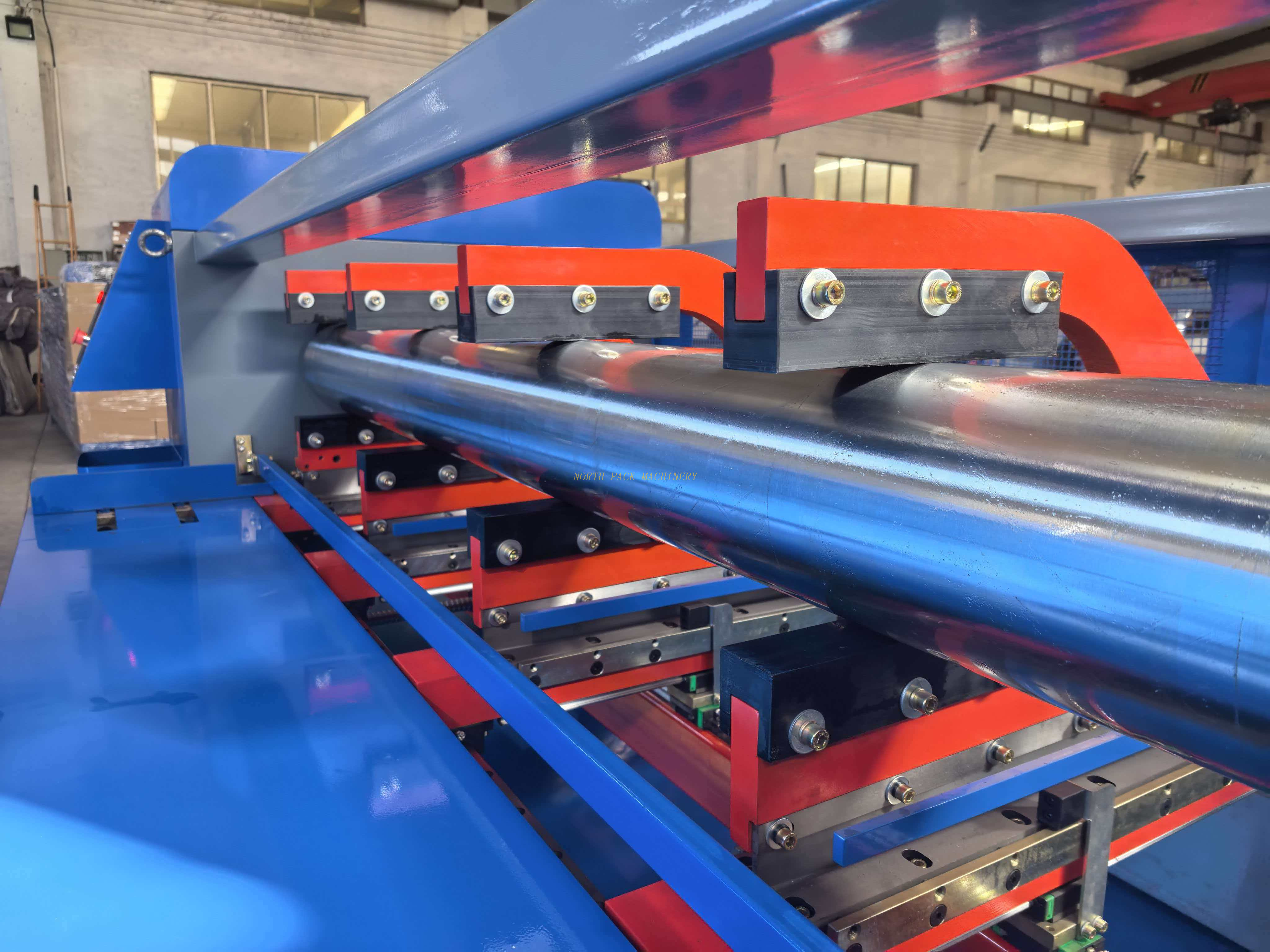

Minimum slot opening: 115 mm. The horizontal movement is by linear guide rail, and there is no need to reset or zeroing after power failure! There is no cumulative error! The error for changing sheets is ±0.5 mm. Slotting part: Uses high-quality knives from Nanjing, with long service life.

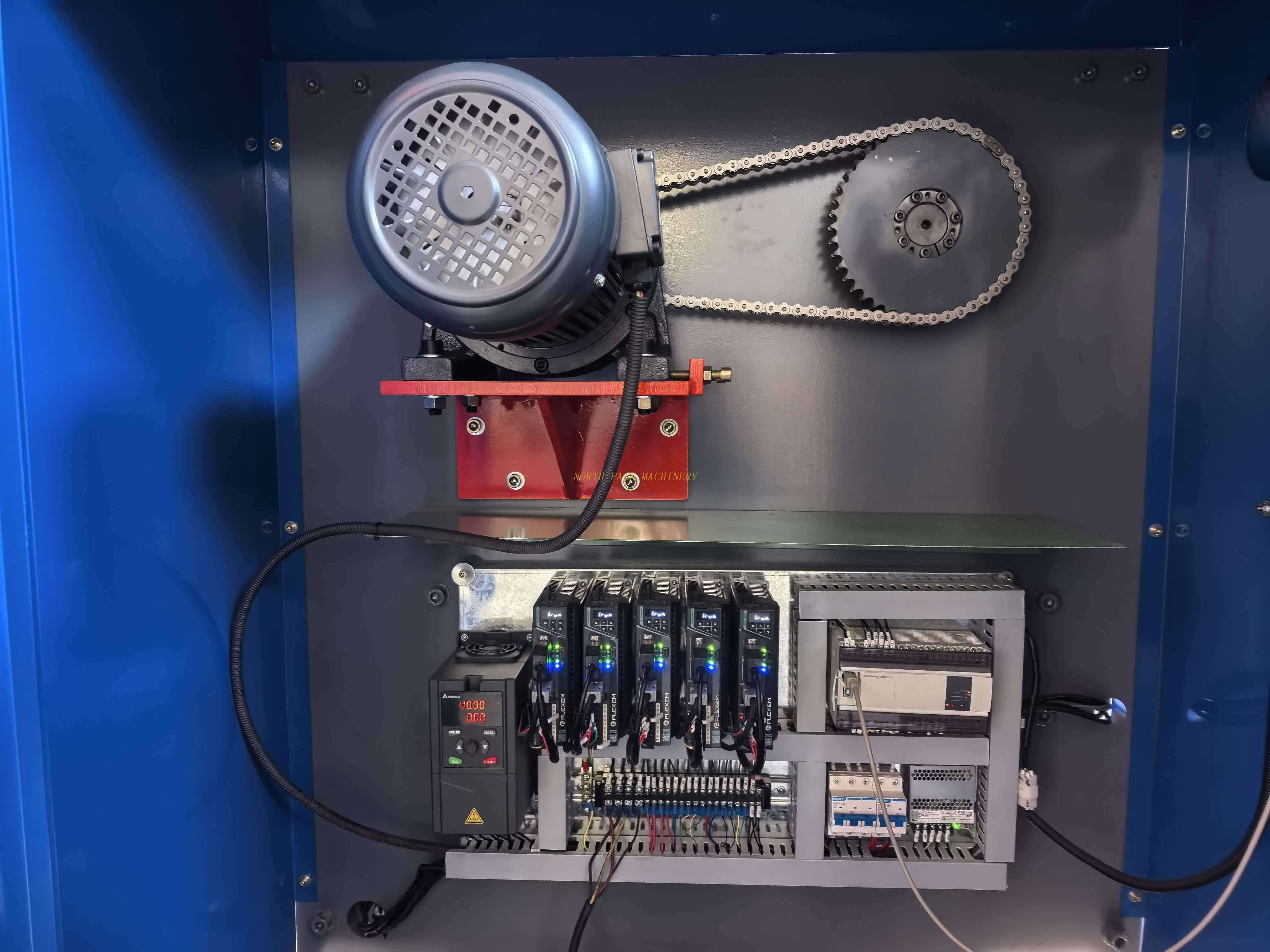

The main unit transmission uses sprocket and chain, which is sturdy, durable, easy to maintain, and convenient for repair.
The base is adjusted by a linear bearing slider, allowing smooth and effortless sliding. It can work while the main unit is rotating, improving work efficiency.
The electrical system uses imported brands or first-line domestic brands, with reliable performance.
Adjusting the size of the paper board can be operated by ordinary workers. It has low noise, easy maintenance, and high economic benefits.
