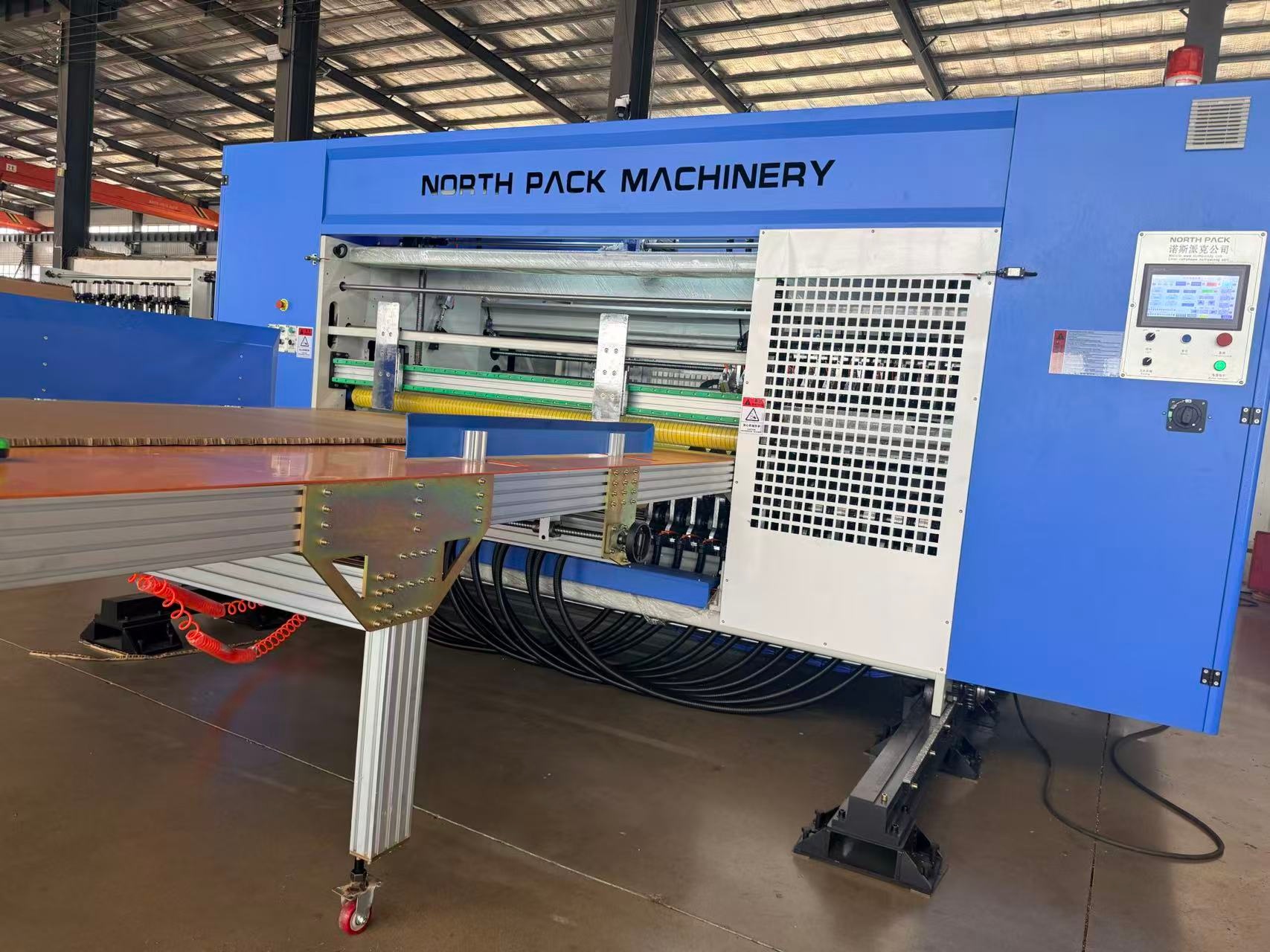

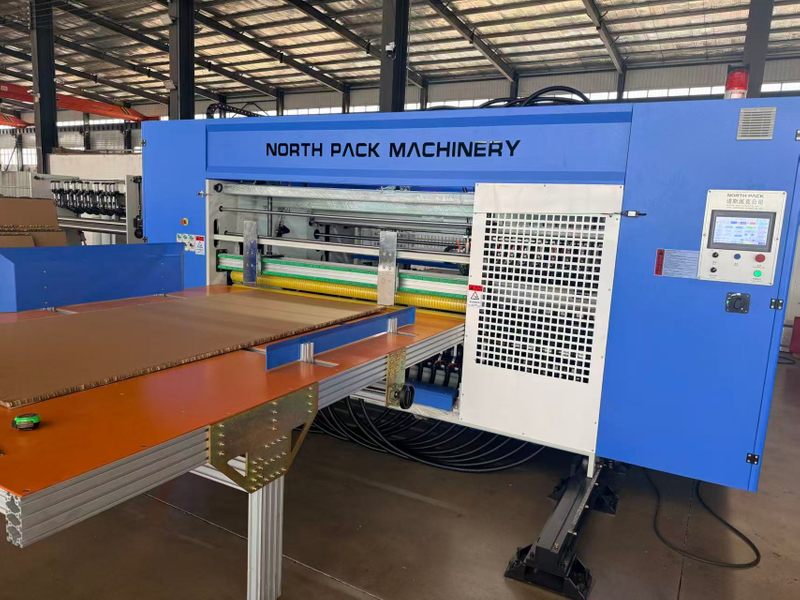

Our fully automatic honeycomb board cross & longitudinal cutting machine adopts PLC touch screen control and servo feeding, realizing one-time vertical and horizontal forming cutting. It features stable operation, high cutting precision, labor and material cost savings, widely used in packaging, furniture and logistics buffer board production. CE certified, factory direct supply.
This integrated longitudinal and cross cutting machine is specially developed for honeycomb cardboard processing enterprises, realizing automatic feeding, longitudinal slitting and cross cutting in one production line. It replaces traditional manual single-direction cutting, effectively solving the pain points of low efficiency, large dimensional error, high labor cost and potential safety hazards in honeycomb board cutting workshops.

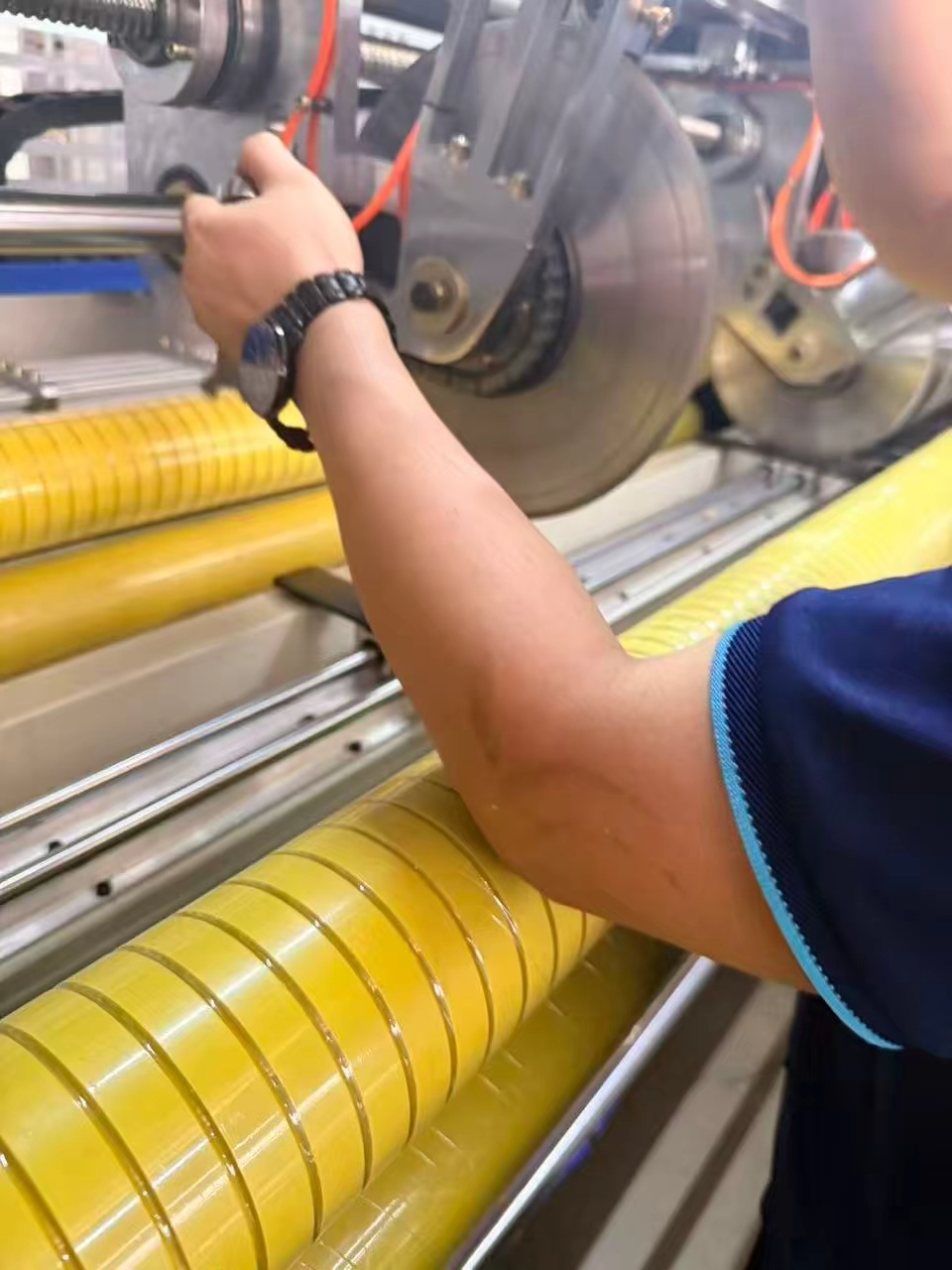

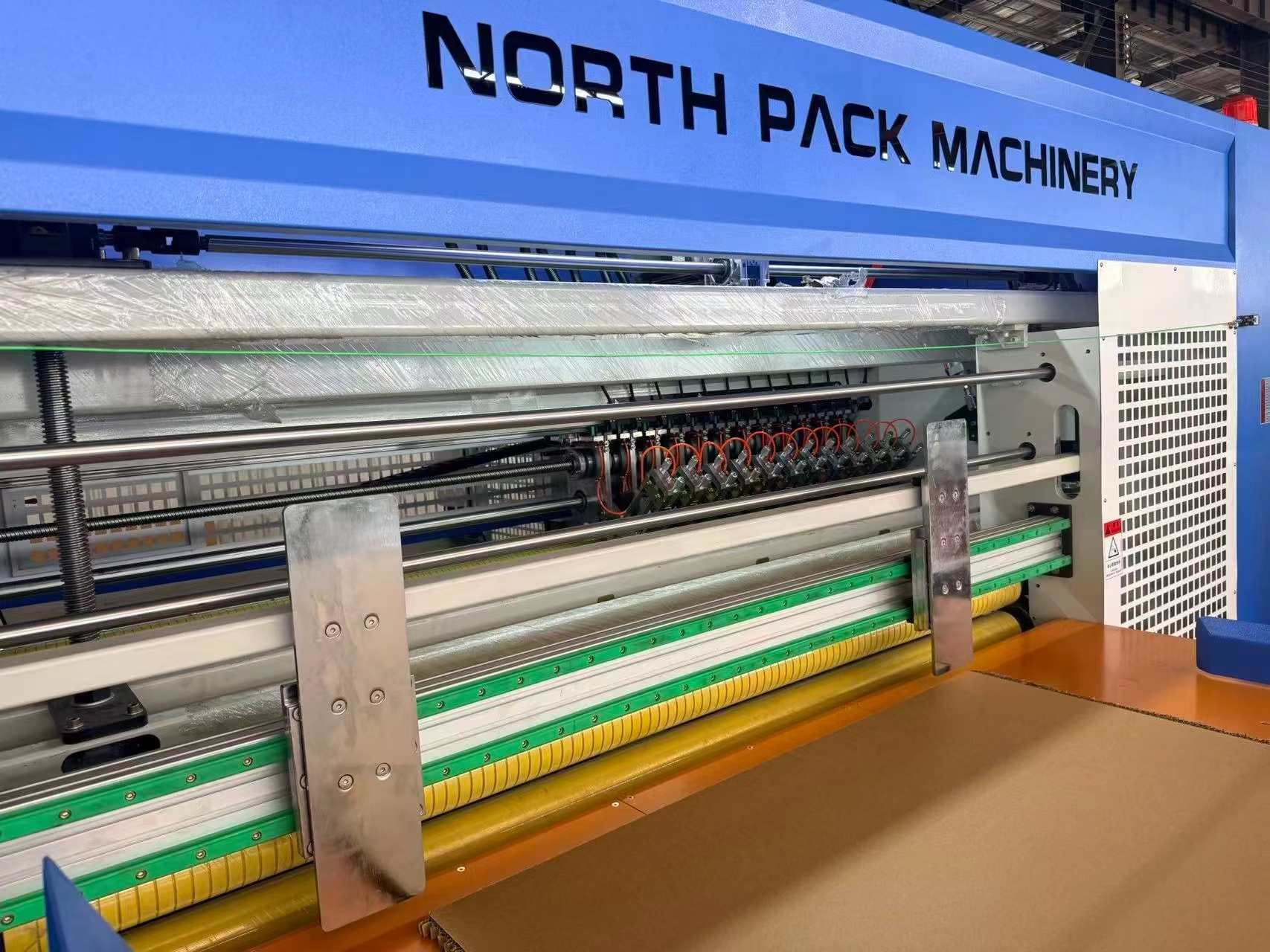

Equipped with high-precision servo drive system and intelligent PLC touch screen control, operators only need to set the cutting length, width and speed on the touch panel to complete one-key automatic sizing. The alloy circular cutting blade ensures smooth, burr-free cutting surface without board deformation or edge cracking, greatly improving finished product qualification rate and raw material utilization rate.
Core Advantages
1. One-Stop Automatic Processing
Integrate longitudinal slitting + cross cutting, automatic conveyor feeding, continuous uninterrupted production, production efficiency increased by over 60% compared with traditional single cutting equipment.
2. High Cutting Precision & Stable Performance
Servo synchronous feeding, positioning accuracy ±0.1mm, no size deviation for batch products; thickened heavy steel frame, stable operation under 24-hour continuous heavy-load work.
3. Intelligent Easy Operation

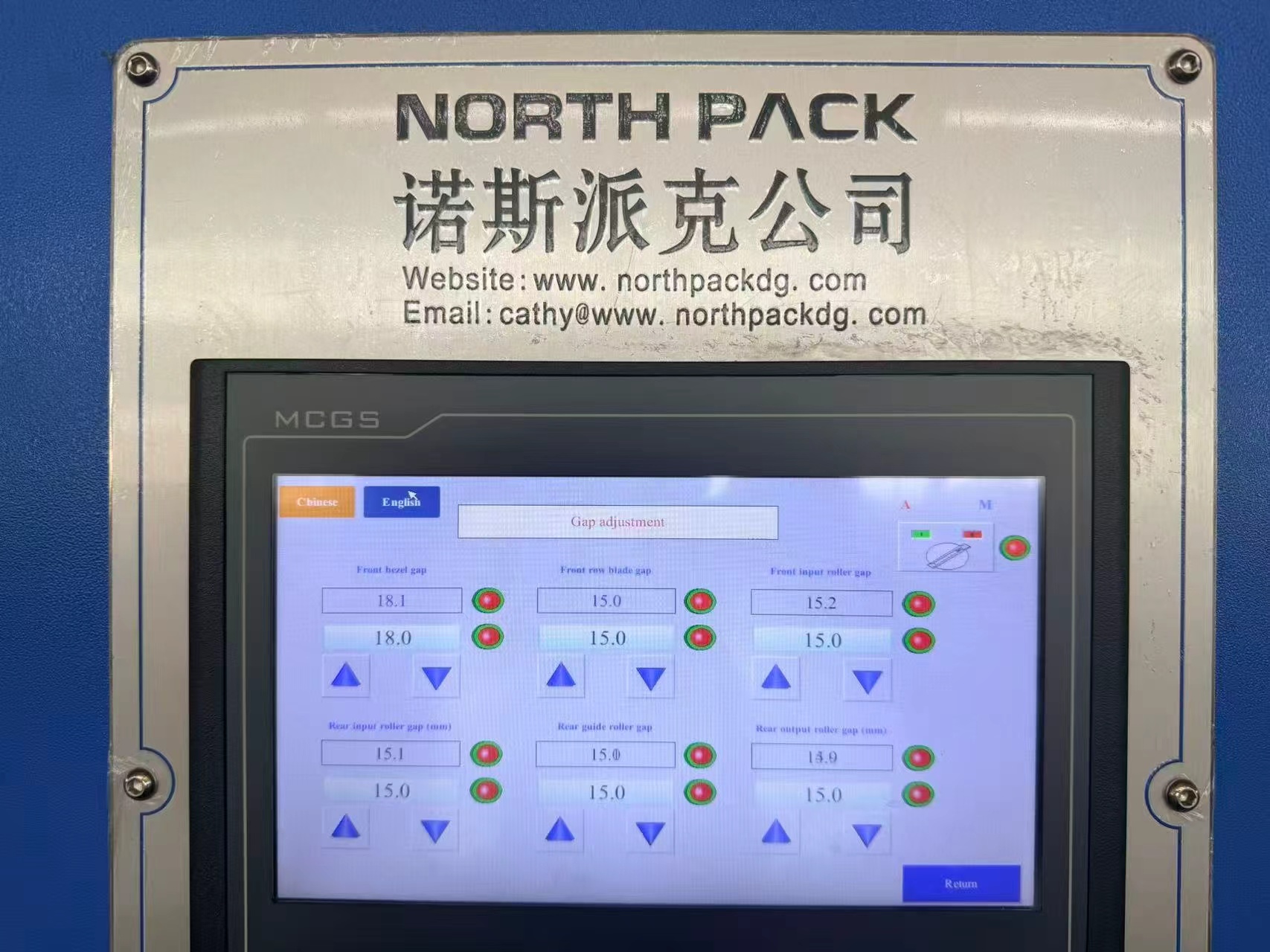

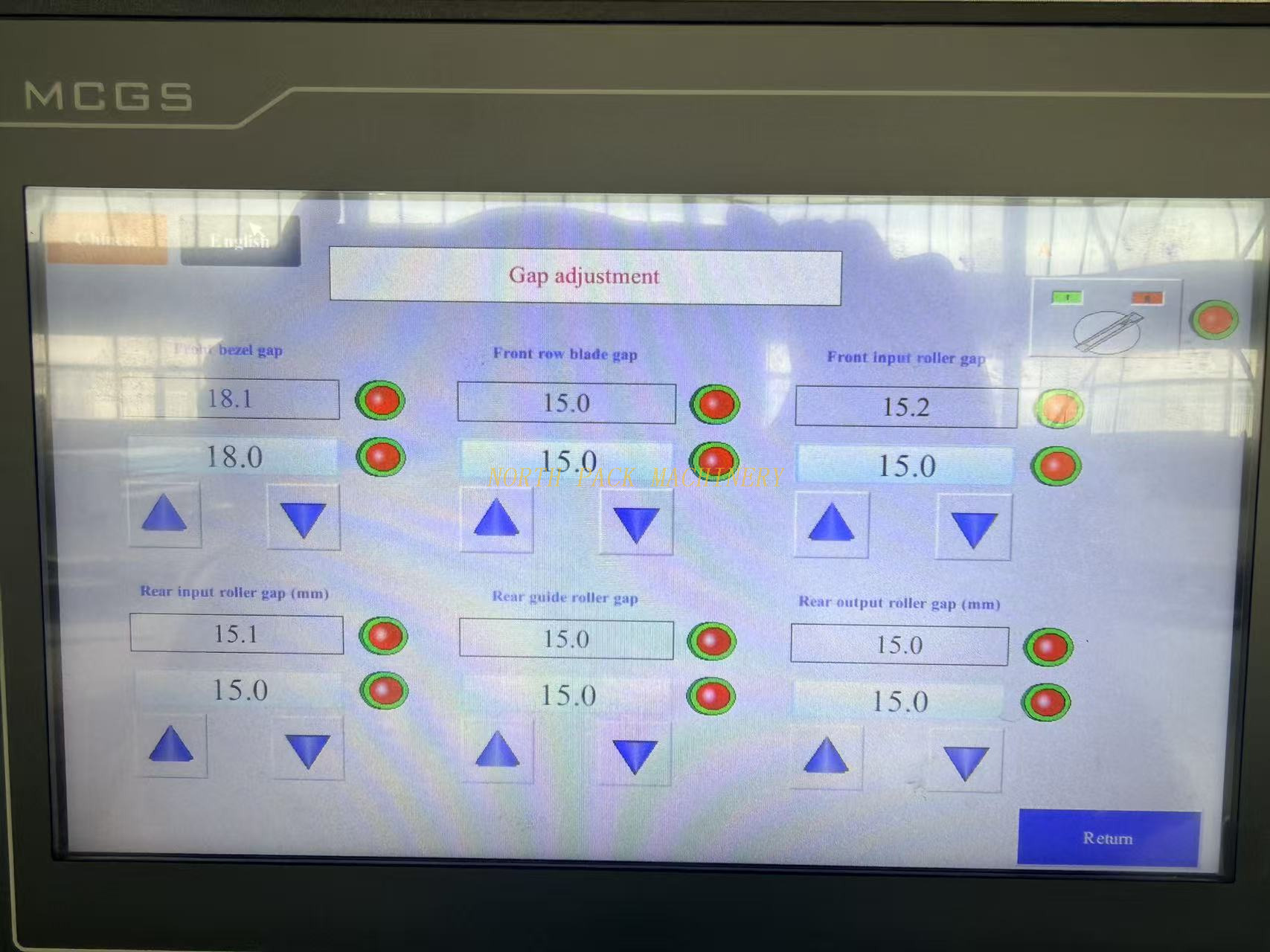

Humanized HMI touch screen, parameter memory function, one-click call for commonly used sizes; low training cost, ordinary workers can master operation within 30 minutes.
4. Energy Saving & Safe Production
Full safety protective cover + emergency stop device, conform to international CE safety standard; independent lifting of each cutting blade, convenient for tool sharpening and maintenance, low later maintenance cost.
5. Wide Application Range
Suitable for 10–60mm thick honeycomb board, minimum cutting width up to 15mm, widely used in logistics buffer packaging, furniture protective liner, electronic equipment cushion, exhibition display boards, automotive lightweight packaging industries.
Main Technical Parameters
FWHZ-2000 Technical Specifications
No.
Parameter
Specification
1
Max Effective Cutting Width
2000mm
2
Cutting Thickness Range
10–60mm
3
The qty of knife
Customize according to customer needs
4
Min Cutting Width
20mm
5
Cutting Speed
2–20m/min
6
Control System
PLC + Touch Screen, Servo Motor Feeding
7
Power Supply
380V / 50Hz / 3Phase
8
Total Power
5.5KW
9
Machine Weight
3800KG
High-efficiency honeycomb board automatic cross & longitudinal cutting machine, servo precise cutting, one-pass forming, save labor & material loss. CE certified factory direct supply, customized size available. Ideal for packaging buffer board, furniture liner, display board production. Get your free quote today!
