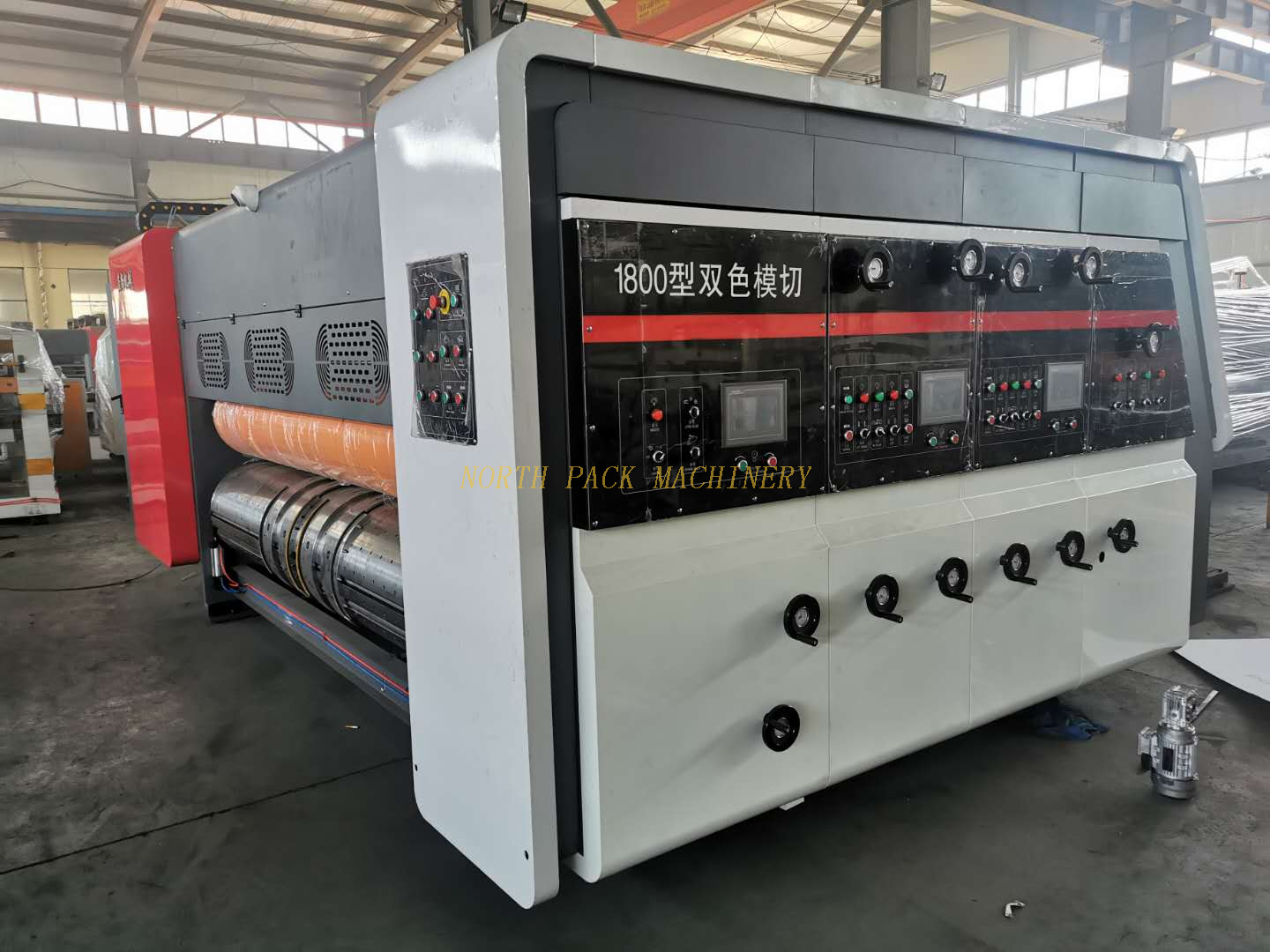

Corrugation Cardboard Packaging Machinery Flexo Printer Slotter Die Cutter Carton Box Machine

The total machine adopt PLC controlling system
Whole machine frame and important part are being aging treatment, tempering eliminate the stress of metallic; all of them come from high precision processing center, CNC grinding machining process. All the rollers are high quality steel, high precision Computer dynamic balancing correction of hard chromium plating, surface grinding.
Color:
Size:
Material:
Availability:
Quantity:
  • 1200*2400
  • NORTH PACK
  • 844130

Corrugation Cardboard Packaging Machinery Flexo Printer Slotter Die Cutter Carton Box Machine


a271d6fda71d981fb4f6b09e413ad6c

Main parameter:


Printing units Chosen according to users' needs
Printing Paperboard A.B.C.E   3/5/7 layer corrugated board
Machine Speed 120 sheets/min
Economy speed 80-100 sheets/min
Max. Paper Size 2200×3700 mm
Max. Printing Size 2200×3600mm
Max. die cutting size 2200×3600mm
Min. Paper Sizes 600*900mm
Max.slot depth 565mm
 Printing precision ±1mm
Printing-plate adjustment
left and right position
10mm
Standard Printing Plate Thickness 4-9mm
Cardboard thickness 2-12mm
Max. slit corner Width 50mm
Max. stack height 1600mm
Printing Roller
(Plus Printing Plate Thickness)
720mm



  1. The total machine adopt PLC controlling system

  2. Whole machine frame and important part are being aging treatment, tempering eliminate the stress of metallic; all of them come from high precision processing center, CNC grinding machining process. All the rollers are high quality steel, high precision Computer dynamic balancing correction of hard chromium plating, surface grinding.

  3. The transmission gear adopt 40 CrMnTi high quality alloy steel which is grinded and after the heat treatment ,it can up to six precision, Its surface with rockwell hardness HRC58-62, make color more accuracy.

  4.  Units separate is electrical controlled and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.

  5.   Every unit of machine with emergency stop switch, so the machine can be stopped between the unit, it can ensure the workers safe (remark: every unit moving is drag by feeder unit)

  6.  All the machine electric parts application keyless connecting ring, eliminating the gap generated by the traditional connection, keep the long-term precision of printing chromatic.

  7. The machine lubrication system uses a spray automatic lubrication, and with the device impermeable to oil spills institutions.


Sample for reference:

NORTH PACK the flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.
印刷后纸板

Packaging & Shipping

 After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
装车

About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.

NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
工厂车间CE


Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
展会

Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.


FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.

3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.

4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.

Display of related machines:

机器展示
