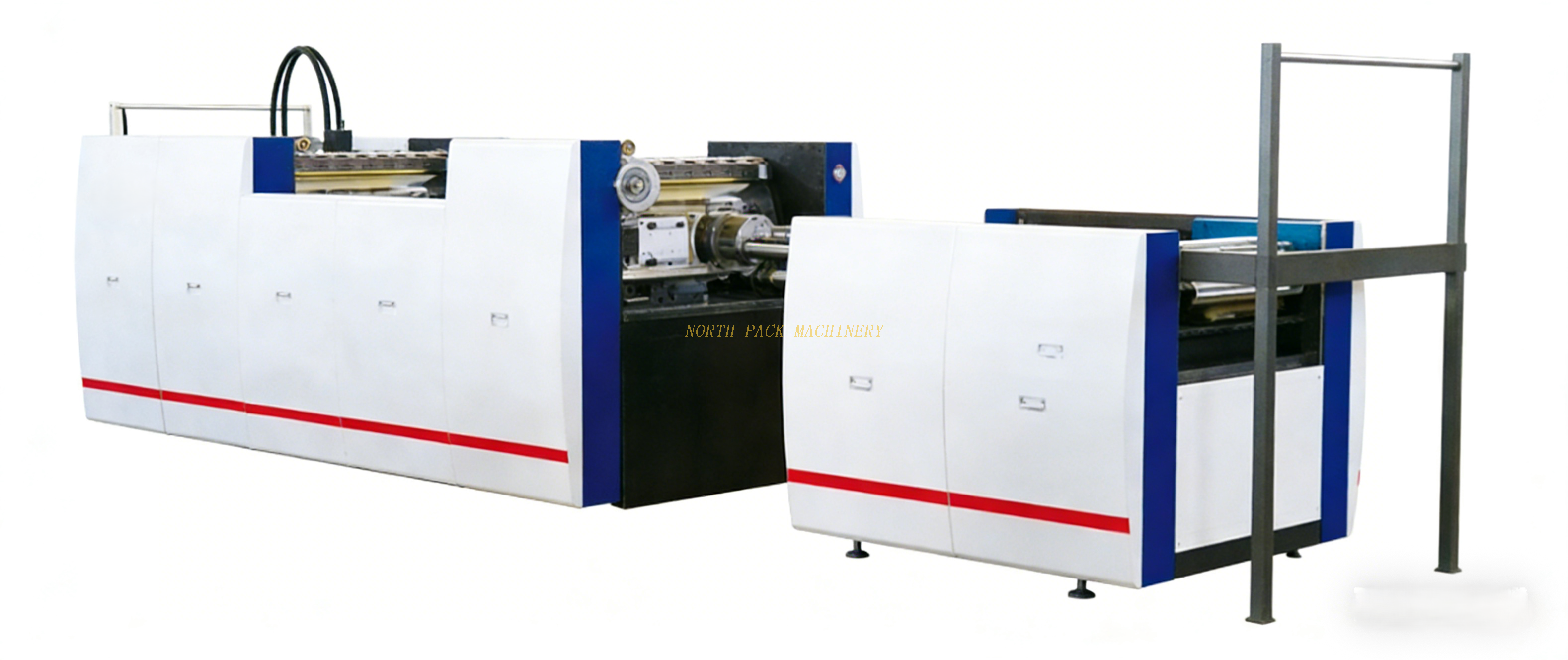

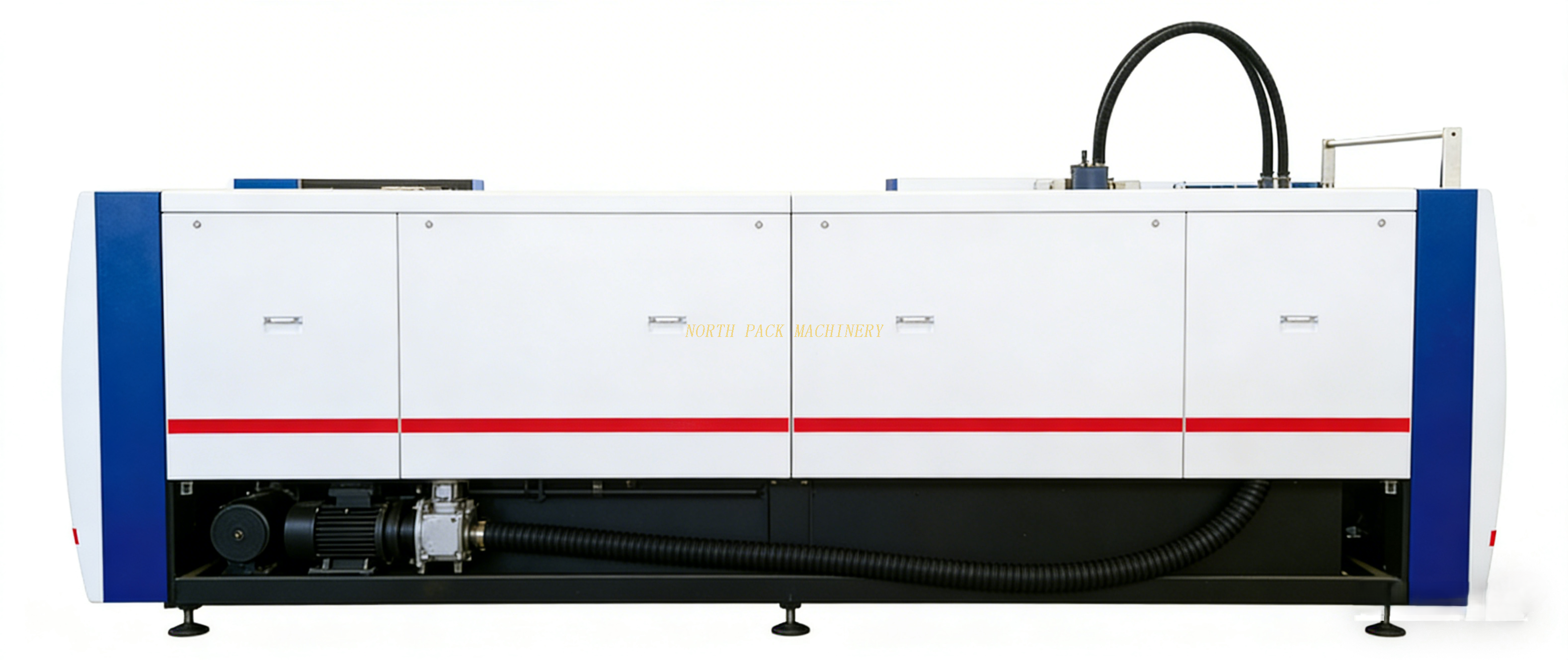

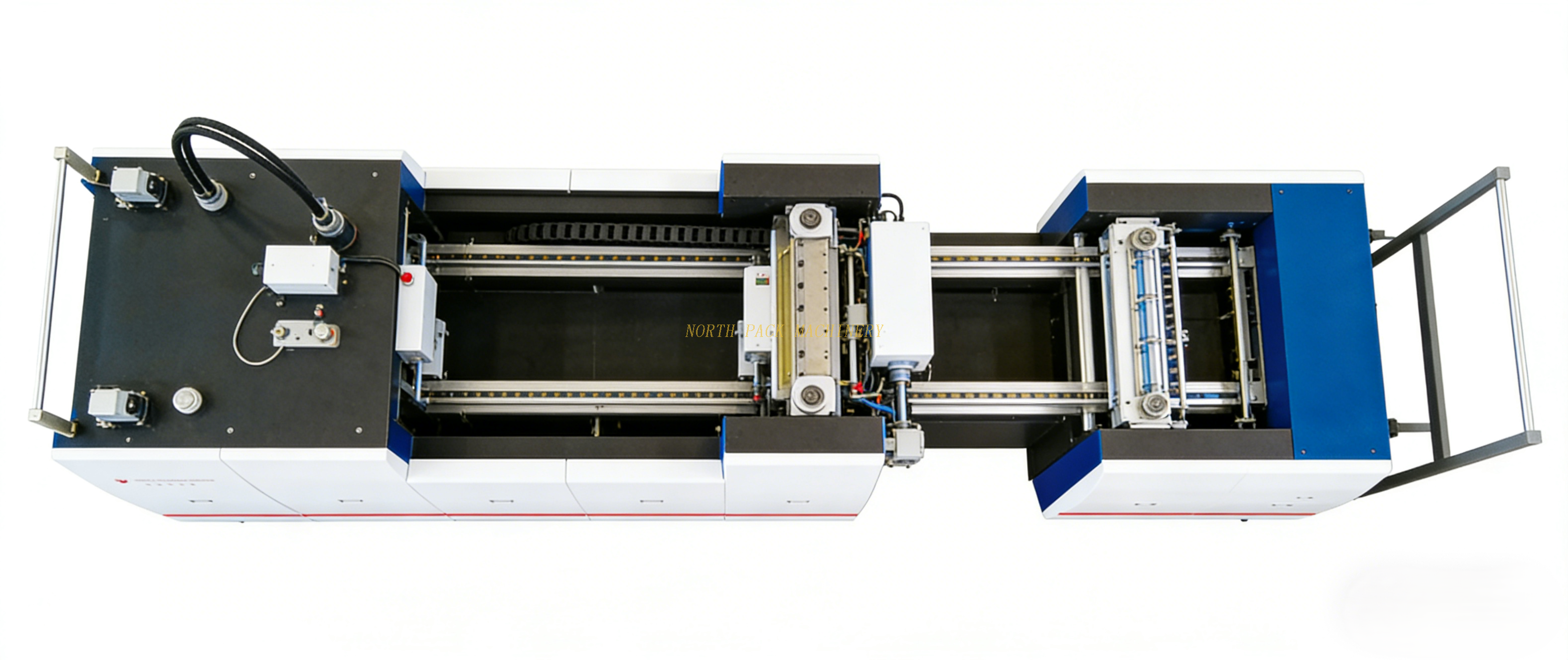

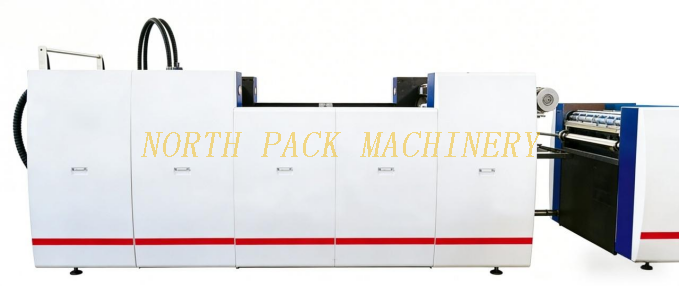

Fully Automatic Pre-coated Film Laminating Machine

Machine Introduction

Fully Automatic Pre-coated Film Laminating Machine is a high-end post-press processing equipment for printing and packaging industries, specially designed for pre-coated film process. The machine integrates fully automatic processes including feeder feeding, servo deviation correction, constant temperature hot-press lamination, automatic slitting & breaking, and automatic material collecting, without frequent manual intervention. It firmly laminates pre-coated films such as BOPP and PET onto the surface of paper and cardboard, forming a waterproof, wear-resistant, high-gloss/matte protective layer, which greatly improves the texture and durability of printed products. It is an ideal choice for laminating color boxes, albums, gift boxes and other products.

Core Features

• Full-process Automation, High Efficiency

  Adopts oil-free vacuum pump feeder, supports non-stop paper feeding; automatic deviation correction, lamination, slitting & breaking, material collecting, with a speed up to 60-80m/min. Auto-stop for paper/film shortage, supports single-person efficient operation.

• High-precision Lamination, Stable Quality

  Large-diameter constant temperature hot-press steel roller, temperature control accuracy ±1℃, uniform roller temperature difference, bubble-free, wrinkle-free, delamination-free with qualified bonding strength, compatible with various pre-coated films (glossy/matte/laser/touch film).

• Wide Format Compatibility, Multi-purpose

  Maximum effective lamination width 1120mm, compatible with 100-500g/m² paper and cardboard, meeting the lamination needs of color boxes, albums, gift boxes and other products.

• Intelligent Temperature Control, Energy-saving & Eco-friendly

  Independent multi-stage temperature control system, uniform heating, fast temperature rise, more energy-efficient than traditional models; solvent-free pre-coated film process, environmentally friendly, meeting green production requirements.

• User-friendly Operation, Safe & Reliable

  Color touchscreen HMI, one-key Chinese-English switch, one-key parameter storage, fault self-diagnosis; fully enclosed safety guard, safe operation and convenient maintenance.

• Sturdy Structure, Stable Operation

  Heavy-duty frame design, imported key components, smooth operation, low noise, long service life, suitable for 24-hour continuous production.

Technical Parameter

Application Scenarios

• Post-press Printing Processing: Book covers, albums, posters, flyers, handbags — enhance gloss, water resistance and folding endurance.

• High-end Packaging: Food gift boxes, cosmetic boxes, medicine boxes, tobacco/alcohol packaging, color boxes/cartons — improve product texture and protection.

• Special Paper Products: Business cards, greeting cards, certificates, tags, vouchers — improve stiffness and durability.

• Advertising & Labels: Self-adhesive labels, outdoor posters, display boards, light box films — enhance weather resistance and image clarity.

                                                                                   THANK    YOU !

Sample for reference:

This kind of flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.

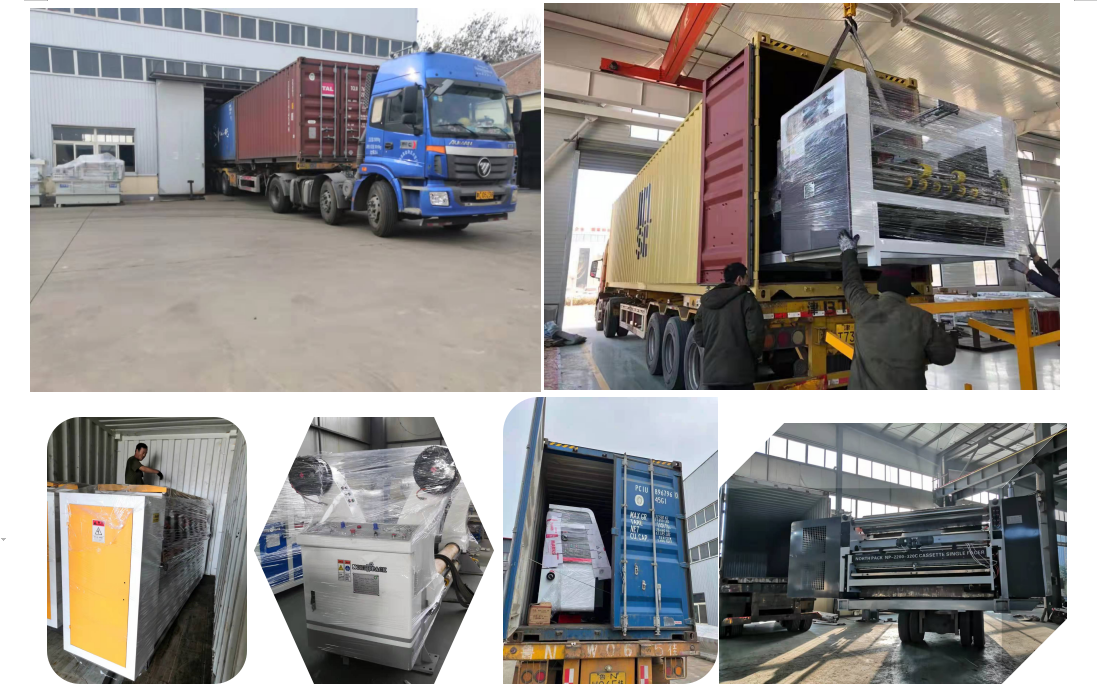

Packaging & Shipping

 After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.

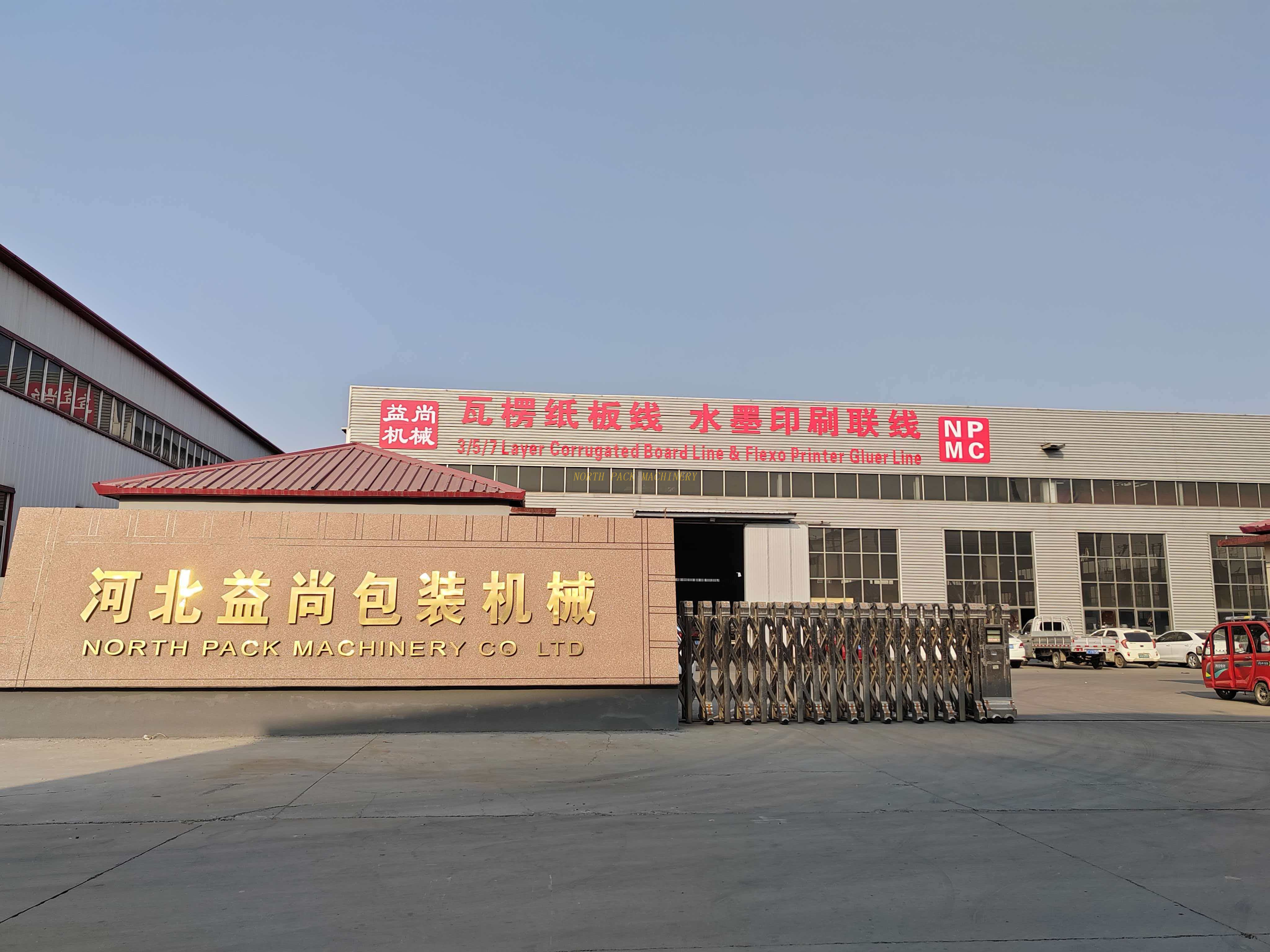

About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.

NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.

Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.

Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.


FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.

3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.

4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.

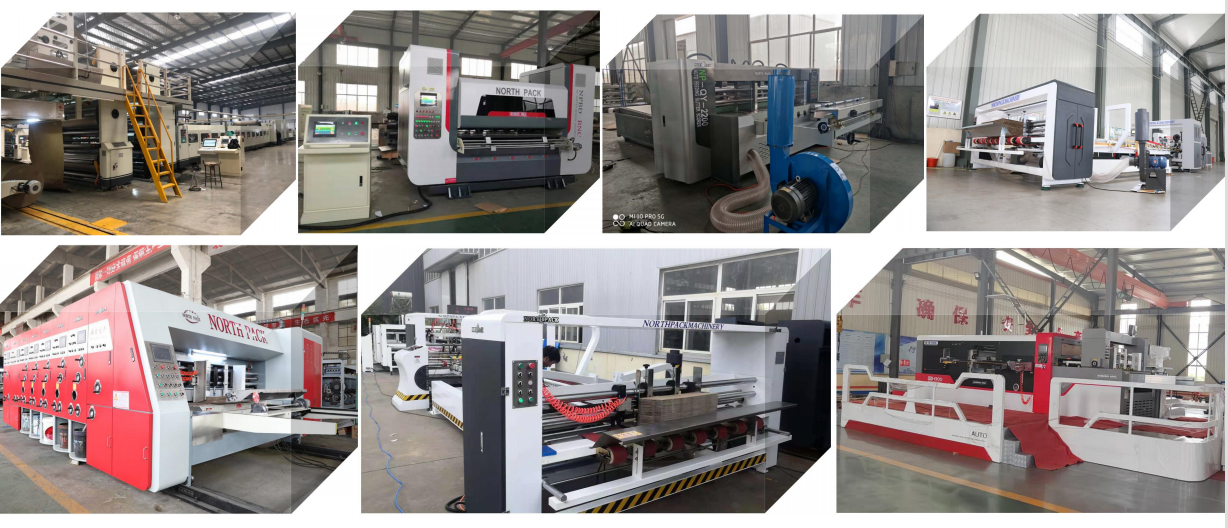

Display of related machines:
