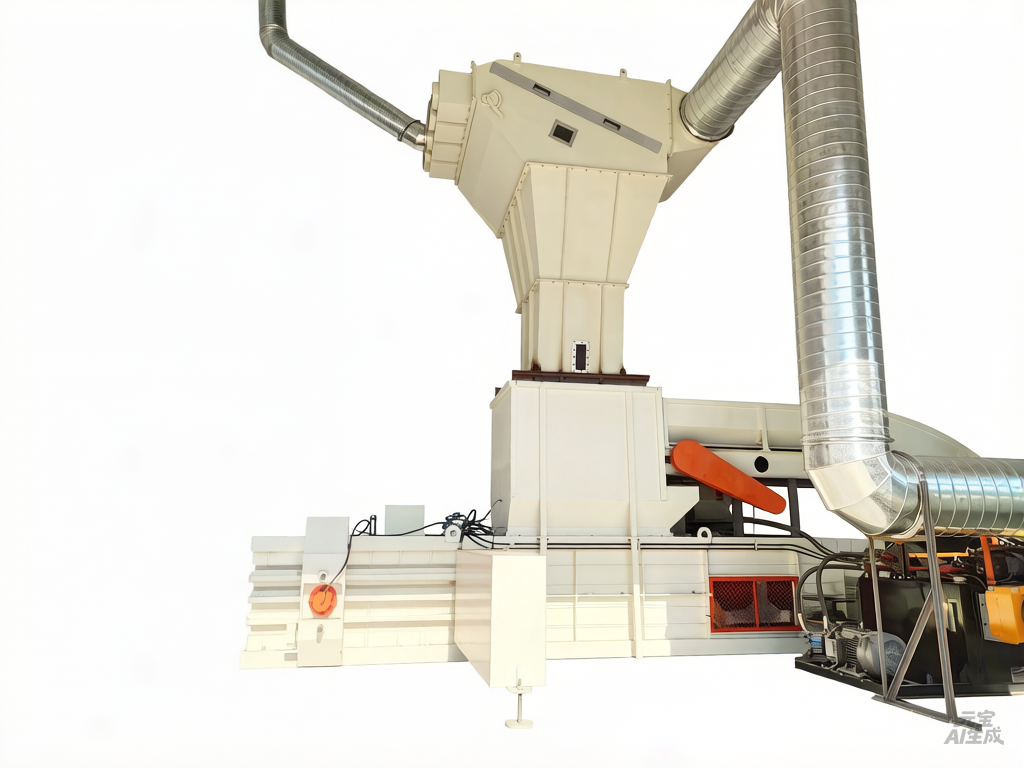

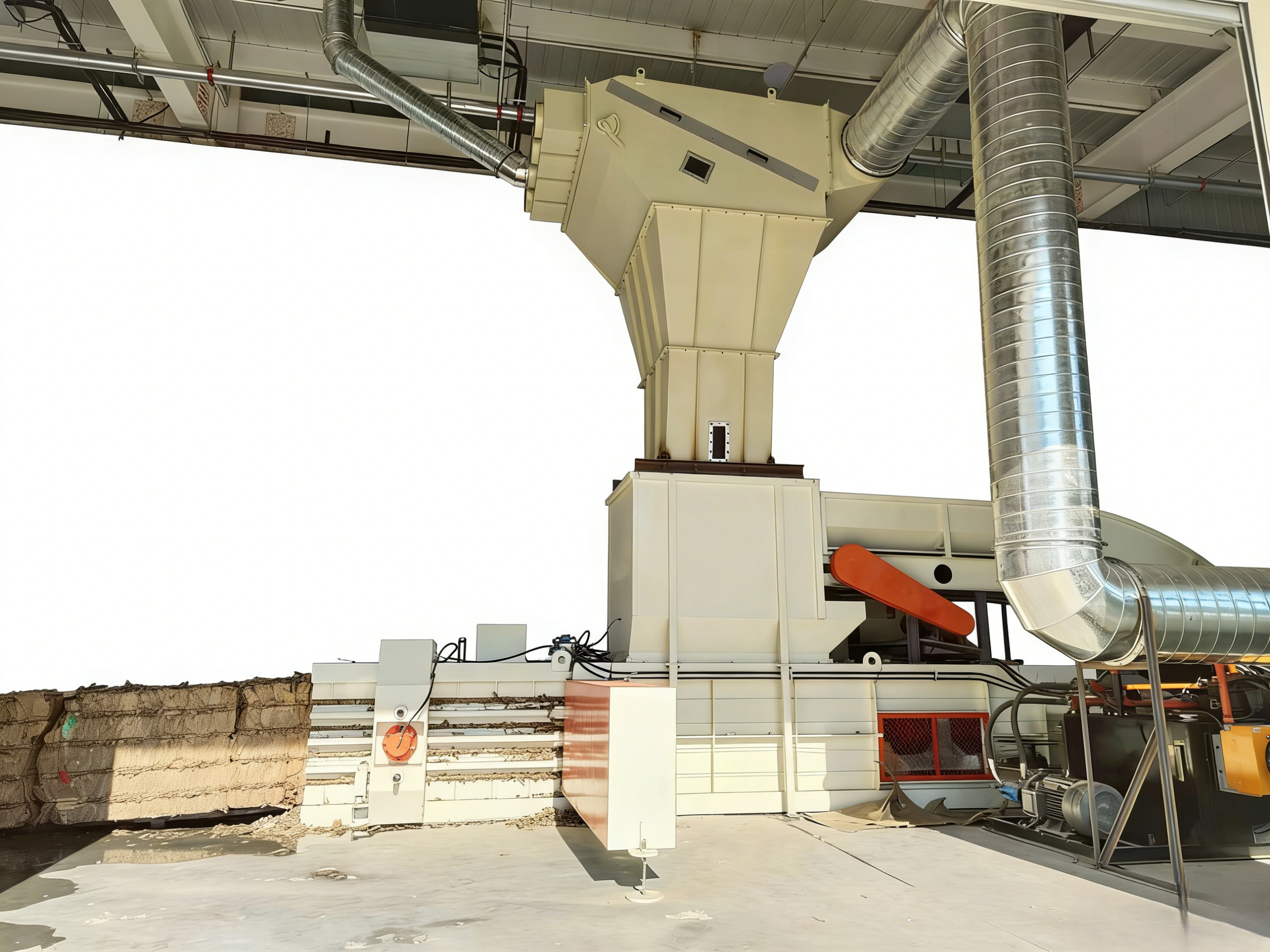

Horizontal Automatic Hydraulic Baler: The Core of High-Efficiency Balancing for Large-Scale Production
The Horizontal Automatic Hydraulic Baler is a high-end baling equipment designed for large-scale loose materials such as waste paper, plastic, metal, straw, and textiles. Adopting a horizontal compression structure, the equipment generates ultra-large thrust through the hydraulic system to achieve high-density compression, automatic bundling, and continuous discharging of materials. Compared with traditional vertical models, it improves baling efficiency by 5-10 times, significantly reducing labor costs, warehousing, and logistics costs. It is an essential device for large-scale production in packaging, recycling, logistics, and agricultural fields.
Core Advantages
Efficient Full-Automatic Operation: One-key start, covering the entire process of feeding, compressing, bundling, and discharging. It can work 24 hours uninterruptedly to meet large-scale production capacity needs.
Ultra-High Compression Ratio: Customized hydraulic system with a compression ratio of up to 1:10. The material density is greatly improved, reducing warehousing space by more than 60% and lowering logistics and transportation costs.
Durable and Robust Design: Heavy-duty steel frame body + wear-resistant alloy pressure head. Core components are from well-known international brands, ensuring stable equipment operation and long service life.
Intelligent and Safe Control: Equipped with PLC touch screen control system, which can accurately adjust compression pressure and baling size; multiple safety protection devices are installed to ensure operator safety.
Multi-Material Compatibility: Suitable for various materials such as waste paper, waste plastic, waste metal, straw, cotton, and industrial 边角料，meeting diverse production needs.
Factory Direct Customization: Supports customizing bale size, pressure tonnage, production capacity, and feeding port size according to customer requirements, adapting to different production scenarios.
Application Scenarios
✅ Paper Mills: Baling waste paper and cardboard 边角料
✅ Waste Recycling Stations: Baling waste plastic bottles, waste cartons, and metal scrap
✅ Textile Mills: Baling cotton, waste cloth, and textiles
✅ Agricultural Bases: Baling crop straw, hay, and rice straw
✅ Chemical/Logistics: Baling bulk materials such as plastic films and woven bags
Product Parameters
NO.
Parameter Name
1
main oil cylinder pressure
180mm
2
Pressure
60T
3
Hydraulic system operating pressure
20MPA
4
Feed Opening size
700*1200*1000
5
Bale Size
W750*H750* ( L can be adjustable）
6
Bale Density
≥200KG-300KG-/m з
7
Baler line
Wire tie
2.6/3mm 3Line
8
Power system
High and low pressure combination of hydraulic system
9
Motor power
15kw+5.5kw
10
Oil Pump model
Adopt advanced plunger variable pumps
11
Oil cylinder model
Displacement 150ml / Pressure20Mpa
12
Knife Material/
5Wsicv
13
Design system pressure
20Mpa
14
power source specification
3PH380V
15
Throughput
1.5 Tons / hour.
16
Control system
PLC special probe automatic control system manual button control operating system
Why Choose Us]
✅ 10+ Years of R&D and Manufacturing Experience in Packaging Machinery
✅ Full CE/ISO Quality Certification, Products Exported to More Than 50 Countries Worldwide
✅ Support Installation, Debugging, Operation Training, and After-Sales Maintenance Services
✅ Perfect Supply Chain System, Short Delivery Cycle, Customizable Production
✅ Dedicated Foreign Trade Team, Providing Full-Process Business Support and Technical Docking
