1400*2600
NORTH PACK
844130

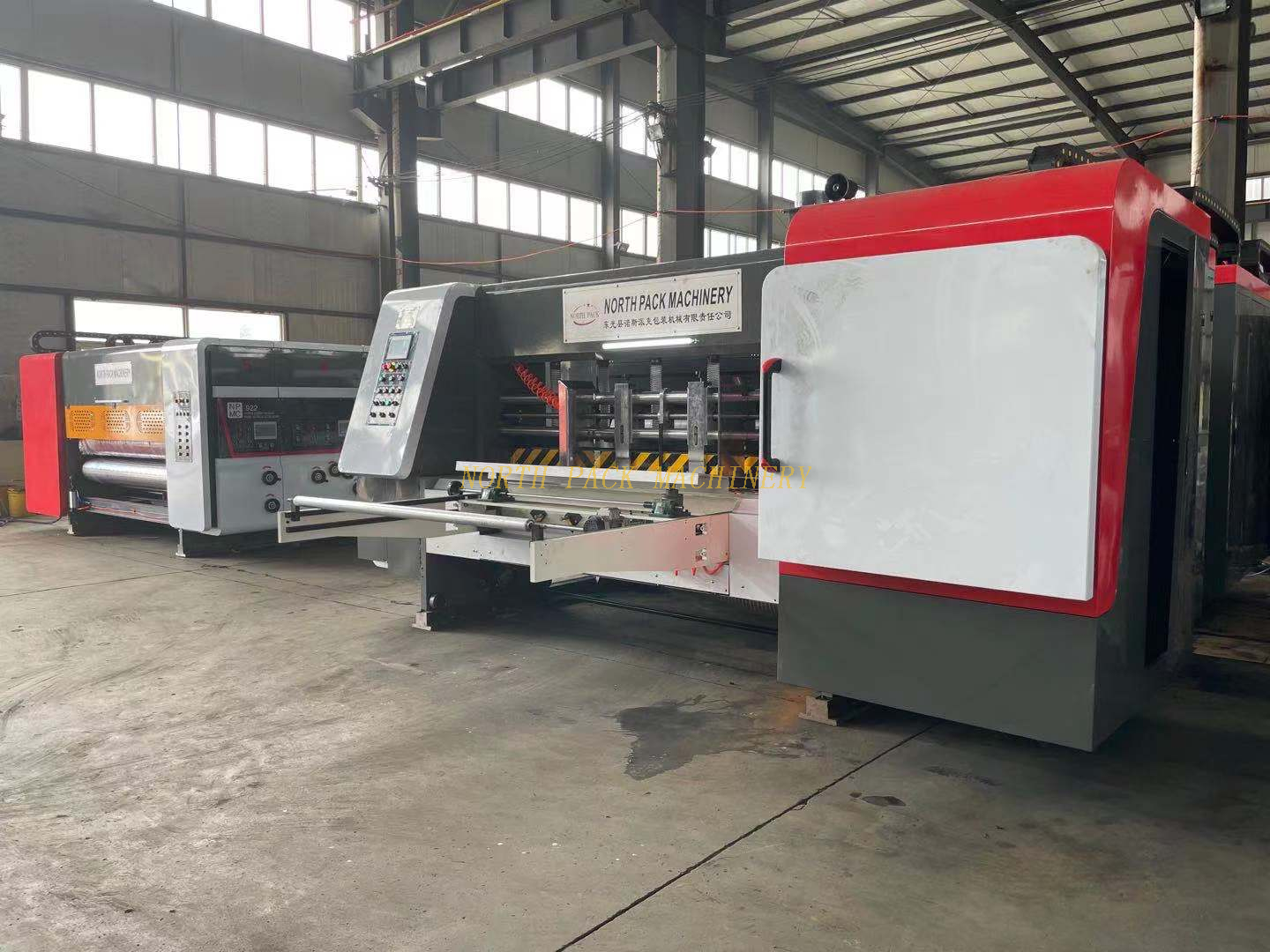

Corrugated Cardboard Flexo Ink Printer Slotter Die Cutter Carton Box Make Packaging Machinery
Machine features and functions:
Adopt PLC control the phase adjustment of each printing unit, operate easily.
All transmission rollers are made of high quality steel, plate with the hard chromium, surface is ground.
Driving gears are made of 40Cr high grade alloy steel and ground, the Rockwell hardness is ≥ 50 after the heat treatment.
Each unit adopt electric separating and pneumatic locking and whole locking. The alarm rings during the walking to ensure the safety of the operator. Different type of alarm sounding for start and stop the machine.
Using two hands together to press the start to button to ensure the safety of the operator.
There is dead-stop button in the front, middle and back of the machine.
There is instruction light (LED three-color instruction light) for the equipment electrifying, awaiting working and in unusual condition.
There is a dead-stop button in each unit of printing machine, the operator can stop each unit when in the middle of each unit to keep the operator safety.
Functions of vibrator and stacker Unit:
Vibrator:
This machine combined with paper feeding and vibrating part, waste collect and output part, and moving lock part
Imported PU round belt conveying the paper, while passing the two high strength vibrating bar, the high vibrating force the waste paper drop down on the bottom out putting conveyor belt. Clean cardboard go to the stacking part. There are 4 rolling wheels to realize the vibrator's opening and combining with the main machine. Operation easy. Lock part have pneumatic and locking cylinder make the connection with the main machine.
Stacker:
1) The paper can then manually adjust automatically.
2) splicing speed and feed speed is synchronization, then the paper speed can be adjusted independently
3) The stack height of 1600 mm
4) bed units lifting strength chain drive.
5) The splicing platform equipped with anti-fall device to ensure operator safety.
6) take action paper hanging pressure plates stacked in cardboard to a certain height, then lift up out of cardboard board automatically.
7) plane wrinkle belt, to prevent the cardboard down.
8) received a separate paper to adjust the belt tension arm, without the belt length limit.
Main technological parameter(the size of the machine can be designed based on clients requirement)
NO. | Parameter | Model | |||
410-2600 | 480-3000 | 530-2600 | |||
1 | Inner width | mm | 2600 | 3000 | 2600 |
2 | Max. Paper size | mm | 1200x2600 | 1450x3000 | 1600x2600 |
3 | Max. Printing size | Mm | 1250x2400 | 1450x2700 | 1600x2200 |
4 | Interval feeding size | mm | 1400x2400 | 1600x2700 | 1900x2400 |
5 | Max. speed | Pcs /min | 150 | 120 | |
6 | Economic speed | Pcs /min | 0-120 | 0-100 | |
7 | Topping precision | mm | ±0.5 | ±0.5 | |
8 | Standard plate thickness | mm | 7.2 | 7.2 | |
9 | Cardboard thickness | mm | 2-11 | 2-11 | |
10 | Min. slotting interval | mm | 165x165x165x165 | 165x165x165x165 | |
11 | Max. slotting depth | mm | 320 | 380 |
Sample for reference:
This kind of flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.
Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.
NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
