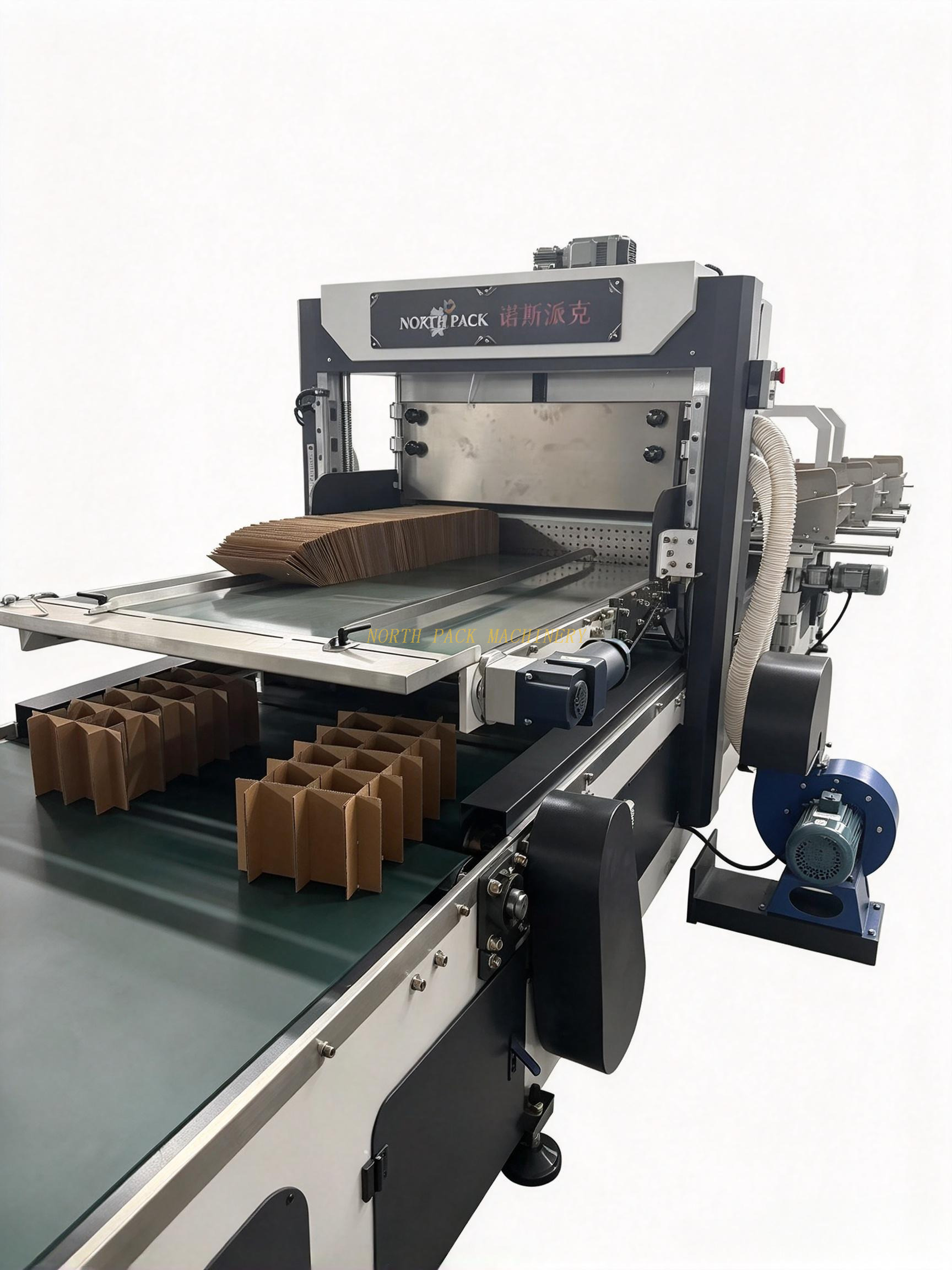

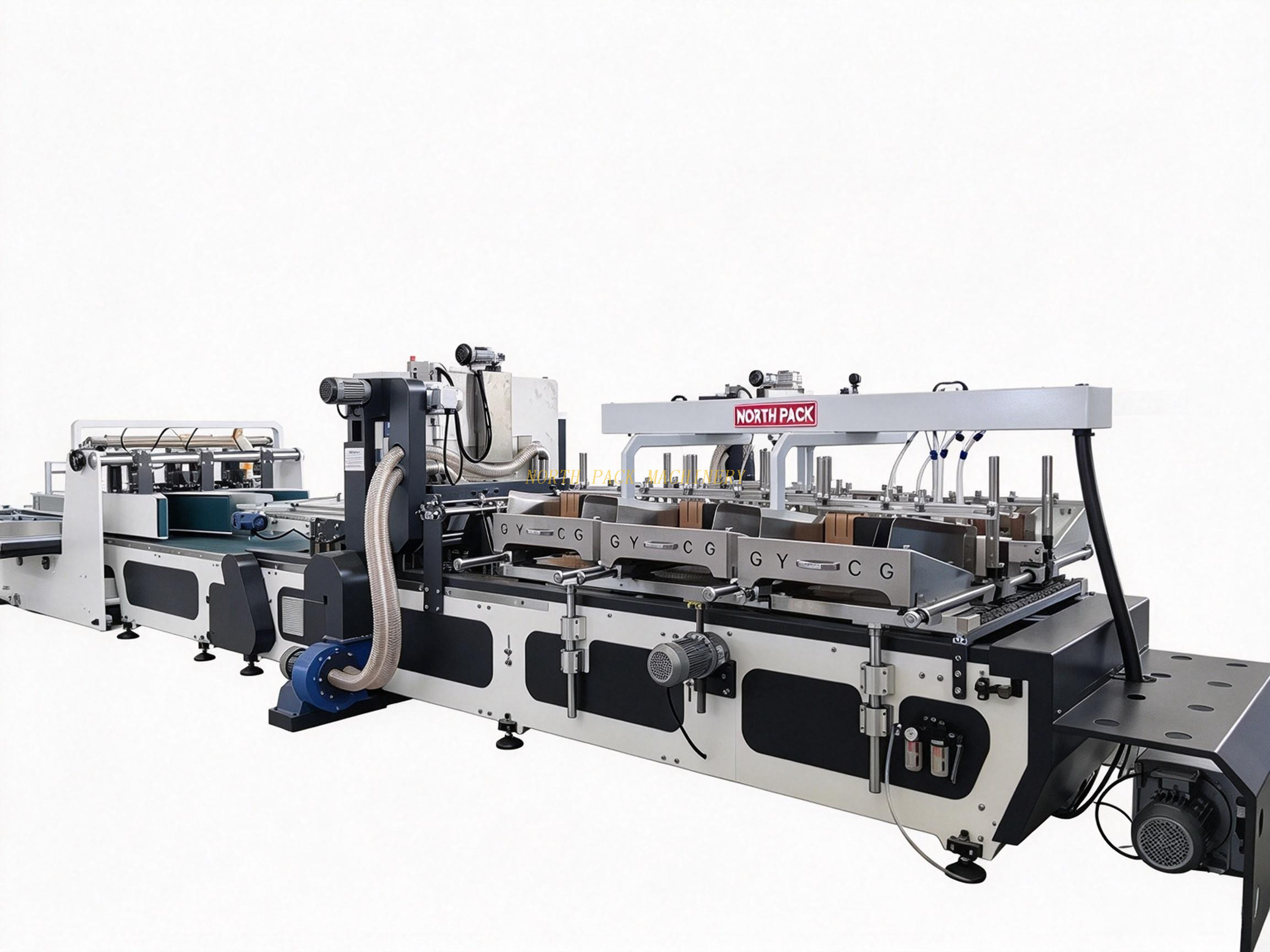

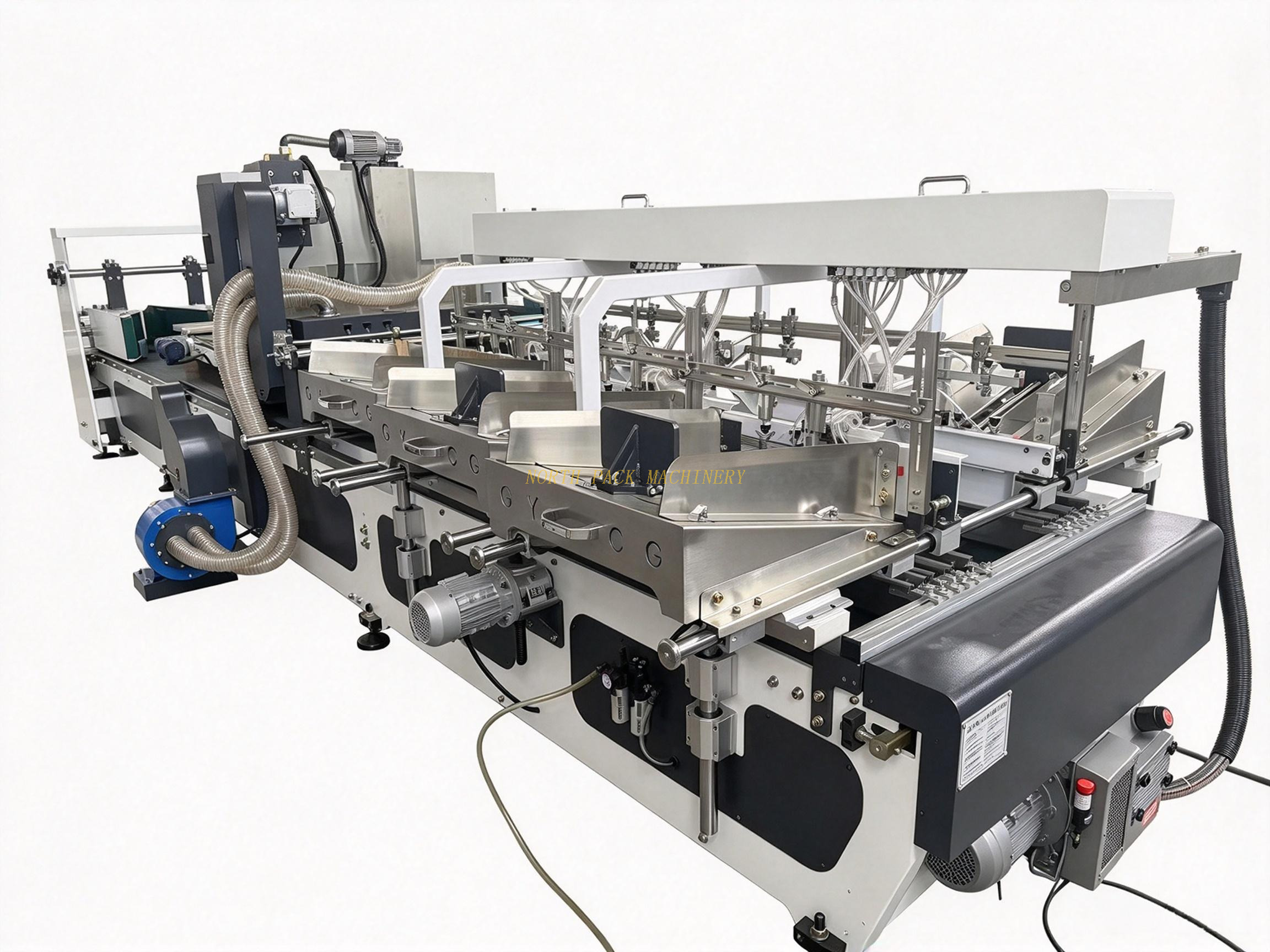

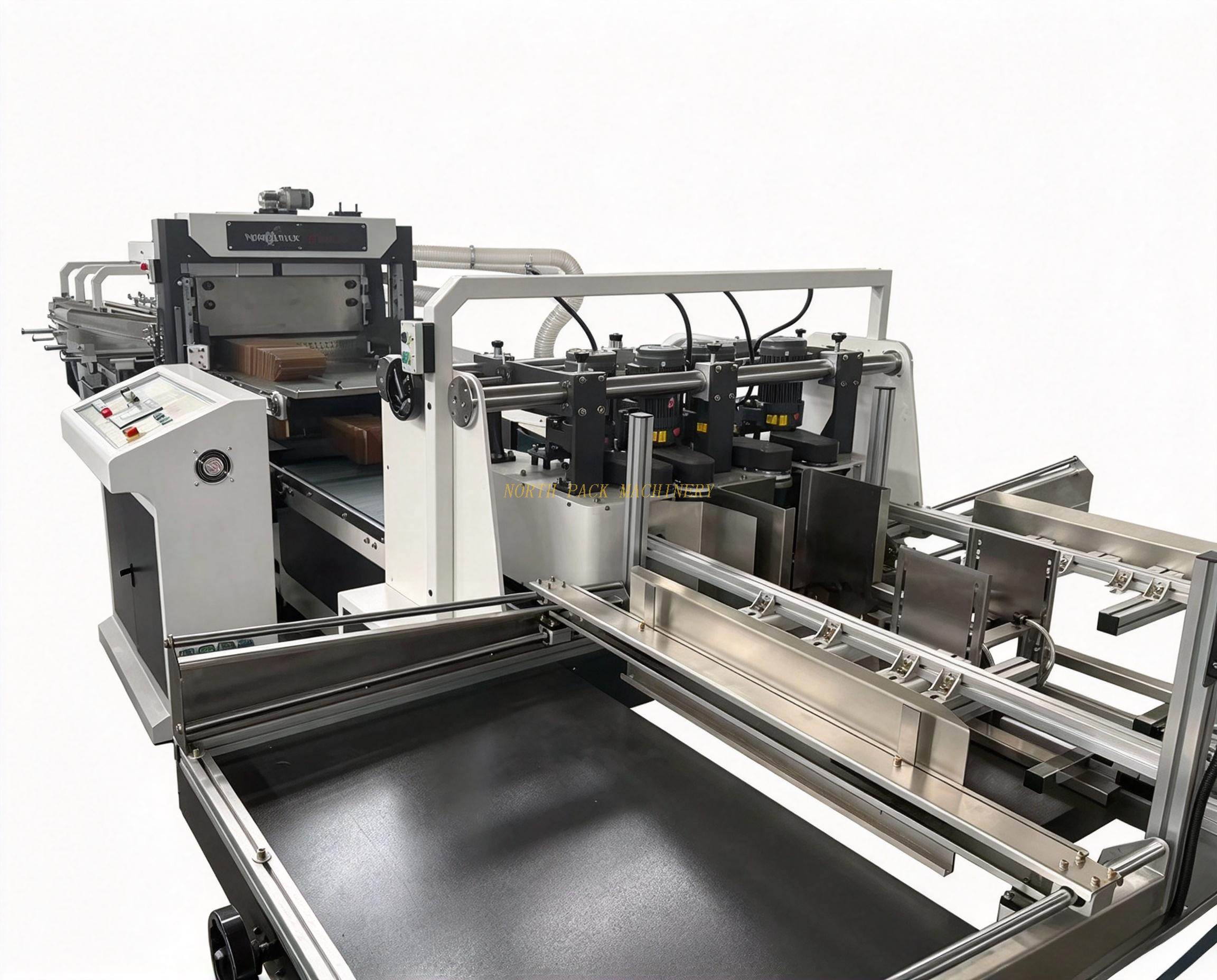

High-Speed Carton Partition Assembling Machine With Auto Collating For Corrugated Box Manufacturing
This automatic partition assembling machine with collector is engineered for corrugated box manufacturers. It combines automatic partition (divider) insertion, stable conveying and automatic stacking into one streamlined process. Controlled by PLC with a touchscreen, it delivers accurate, high-speed insertion and stable output, significantly reducing labor, lowering production cost and raising line automation. Each machine passes strict factory commissioning and inspection, and is backed by a successful third-party acceptance by a Colombian client — reliable quality for batch production and full-line integration.
One operator runs the whole line, cutting manpower on the inserting station and total labor cost.
Durable & reliable
Frame and drive components are built for continuous operation — rugged and easy to maintain.
How It Works
1) Feeding
Corrugated board / divider stock is loaded and positioned automatically.

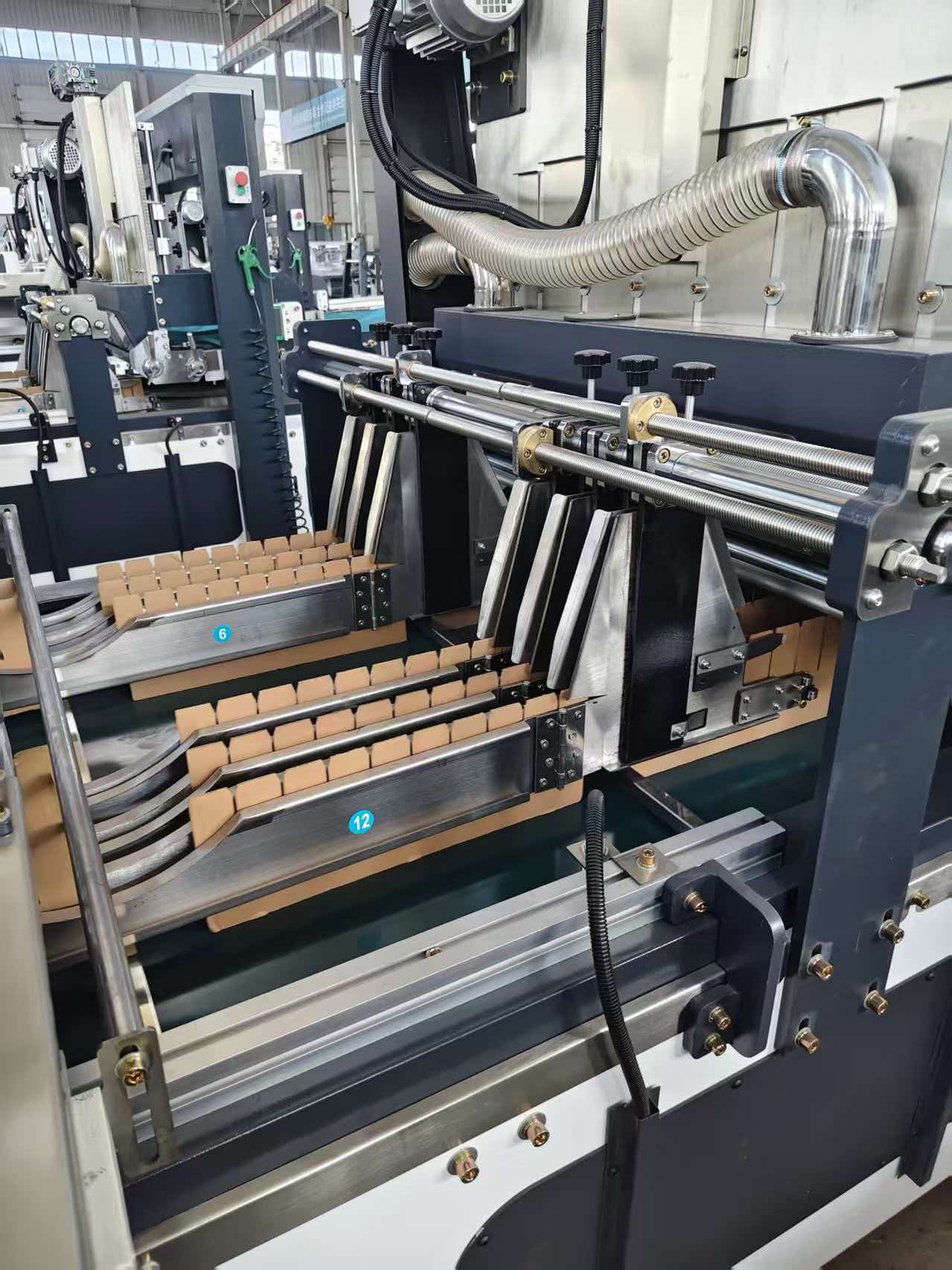

2) Automatic insertion
Dividers are picked and inserted into cartons precisely on the set cycle.
3) Conveying
Finished items flow smoothly through the conveyor unit at a steady pace.
4) Automatic stacking
Automatic collection, stacking and collating for neat output into the next process.
Technical Specifications
Item
Unit
CGJ450-3L
Horizontal inserting width: A
mm
120~900
Lengthwayssheetslength: B
mm
210~450
Clapboard Height: C
mm
70~300
Horizontal clapboard distance: D
mm
20~400
Lengthways clapboard distance:E
mm
45-850
LengthwayssheetsNo.
Pcs
1-6
Horizontal clapboard No.
Pcs
1-21
Carton inserting mouth width：F
mm
＞board thickness
Carton thickness:G
mm
1.5~8mm
Machine Dimension
m
7.3×2.0×1.9

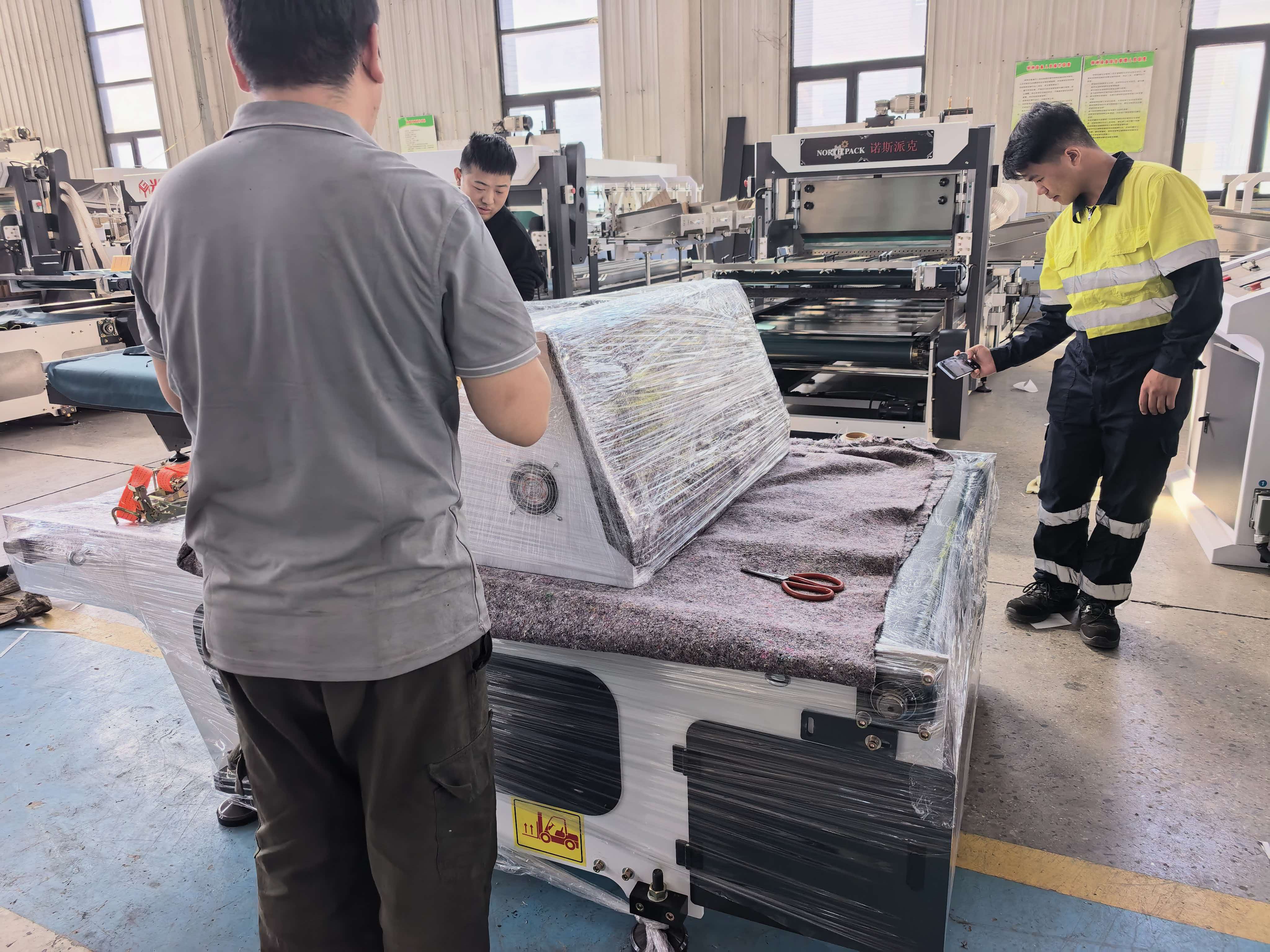

Third-party acceptance by a Colombian client — all went smoothly
This machine has been accepted on-site by a third-party acceptance team commissioned by our overseas client in Colombia. The acceptance went smoothly: stable operation, inserting accuracy and output all met the agreed acceptance criteria and won the client's approval.
A machine that stands up to rigorous third-party inspection is a machine you can trust — which is exactly why we insist on factory self-inspection and proactively support client acceptance.
