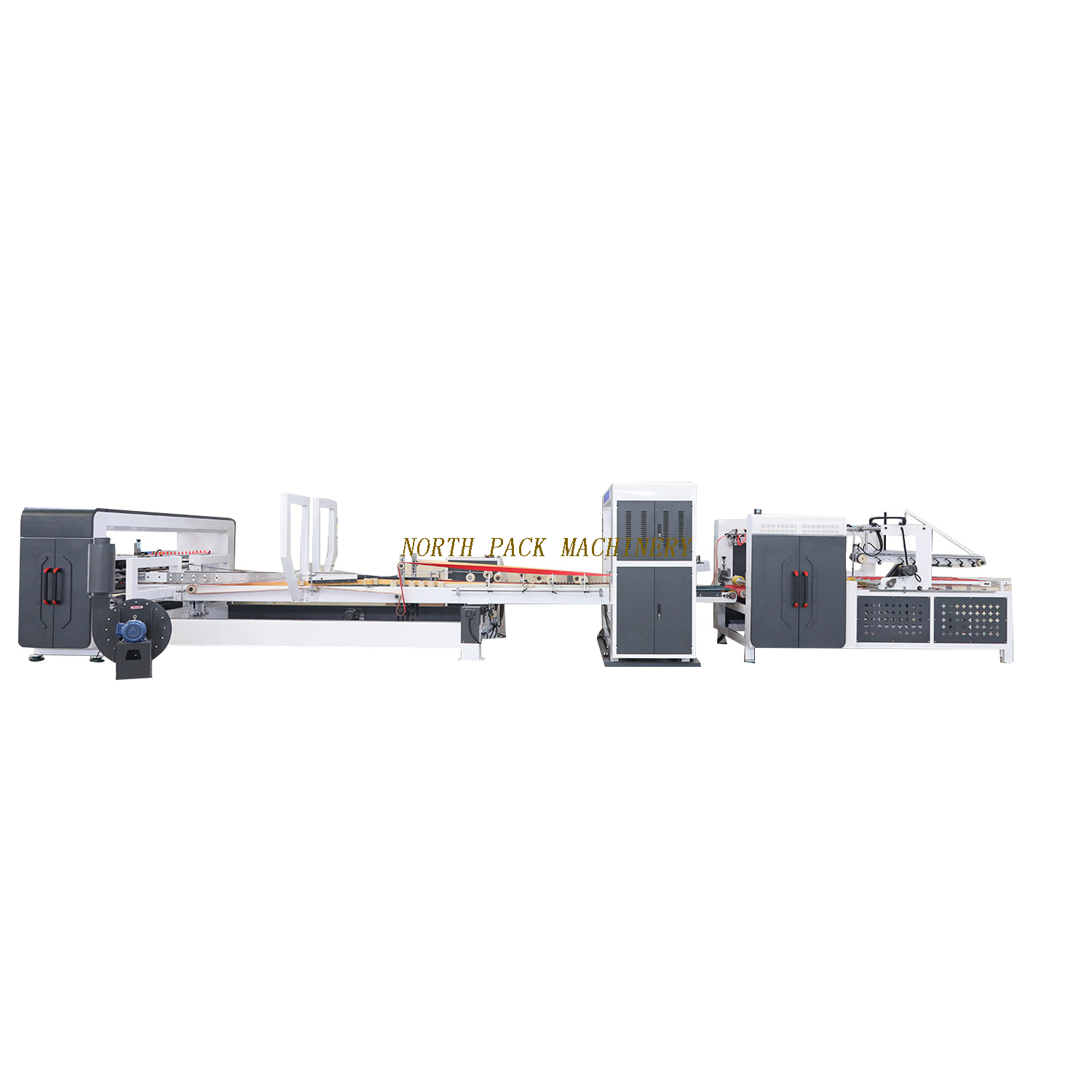

Corrugated Cardboard Automatic Folding Gluing Stitching Carton Box Packaging Machine

Automatic folder gluer and Stiching machine composed of t5 parts: vacuum feeding patr, glue & folding part,Stitching part , counting part & stacker part.
Availability:
Quantity:
  • 2600
  • NORTH PACK
  • 844130

Automatic carton box stitcher gluer bundler inline machine For Boxing Making


未标题-1_0062_6A1A4090

All the motors except frequency conversion motor adopt Taiwan motor.
Converter control the speed,PLC and Touch Screen for easy operation.
Max. gluing speed is 130m/min, average gluing speed is 100m/min
Max. Stiching speed is 60m/min, average gluing speed is 45m/min

Main Technological Parameter

Model NP-2400
Max. paperboard(mm) 900*2200
Min.paperboard(mm) 300*900
Dimensions(L*W*H)(mm) 11000*3000*1600
Total weight(kg) 5500
Power(kw) 11.5
Paperboard type 3/5 layer
Control PLC&Touch Screen


1. Feeding Part
 Suction feeding can adapt to the crooked cardboard easily
 With electromagnetic clutch and electromagnetic brake system, make feeding part can be separate controlled.
 Pressure wheel can be adjusted, board is suitable for 2-8mm thinkness.
 Second creasing mechanism, can creasing again for the paperboard which was not creased well

2. Glue & Folding Part
 Simple structure, glue quantity is adjustable, easy clean
 Stainless steel glue wheel, long lige and saving glue.
 Imported rubber belt, automatic folding
 With paperboard rectify device and creasing rectify device

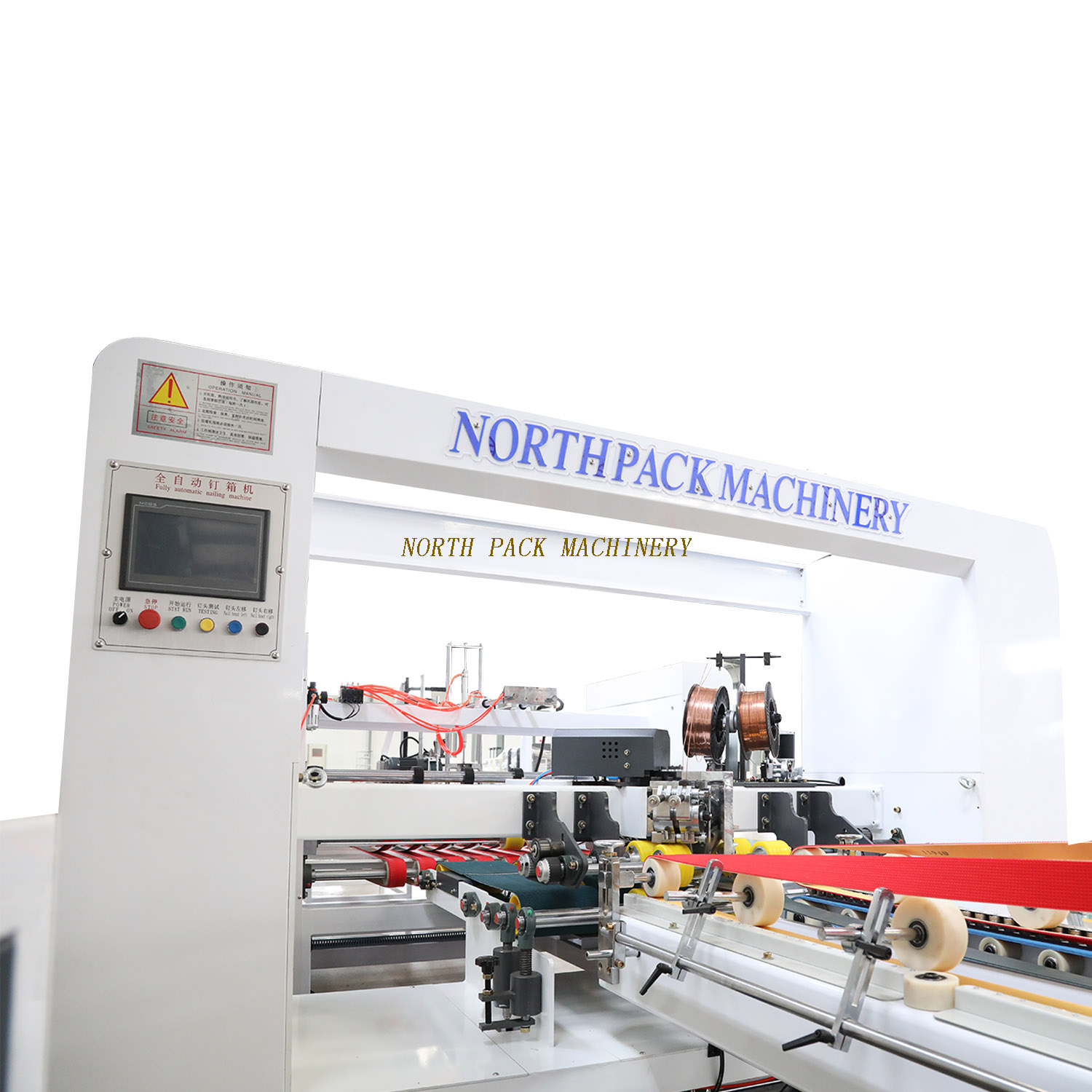

3. Stitching part
 Reliable stitching machine.
Computer control.
Stiching single nail, double nail, all setting from touch screen

4. Counter & Stacker Part
 Counter stacking is simple and reliable
 Digital control, easily operation, automatic counting, output accuracy

Sample for reference:

NORTH PACK the flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.
印刷后纸板


Packaging & Shipping

 After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
装车

About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.

NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
CE工厂车间


Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
展会

Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.


FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.

3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.

4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
