Fully Automatic 3 / 5 / 7 Ply Corrugated Cardboard Production Line High Speed Plant Machine

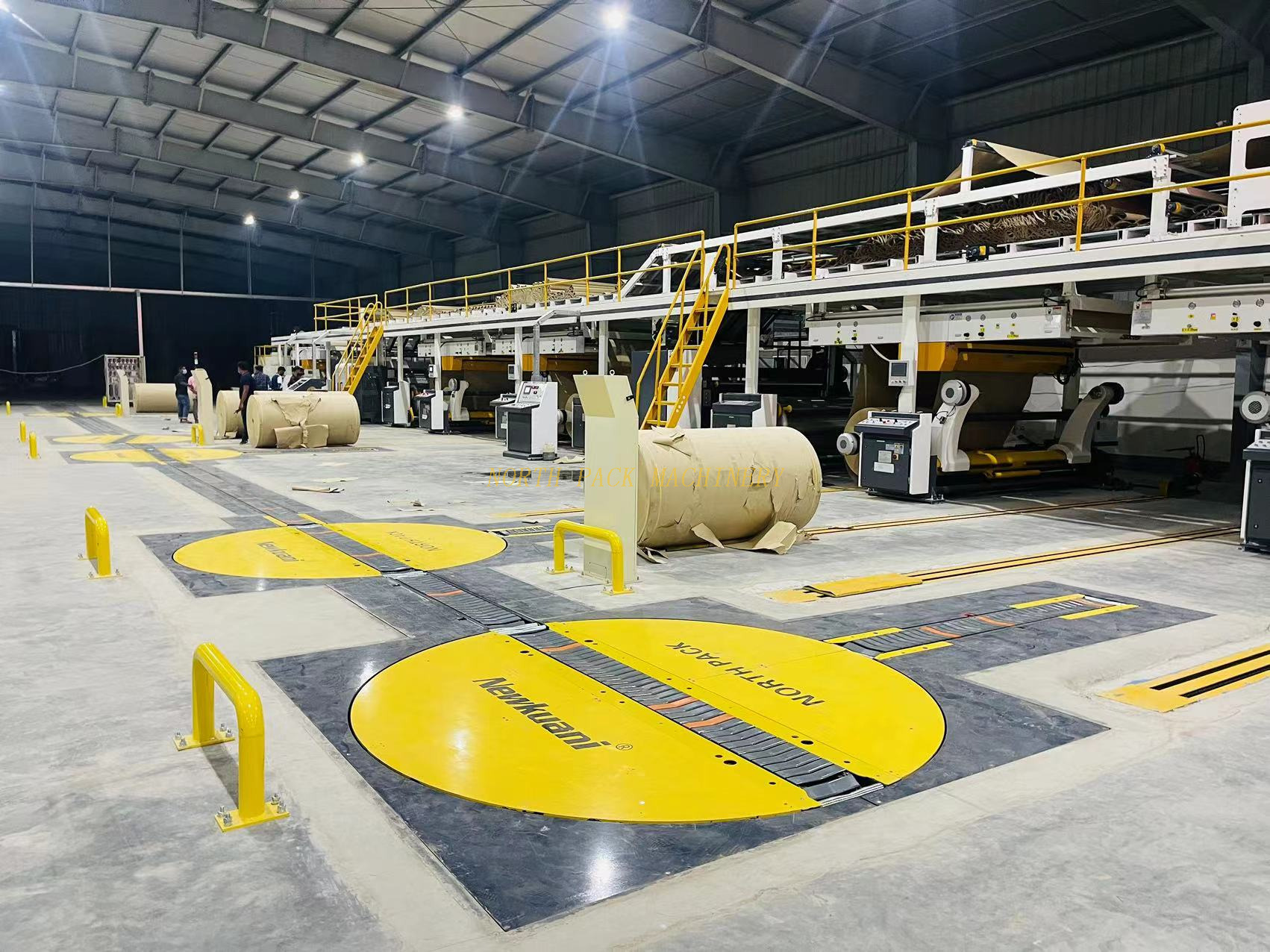

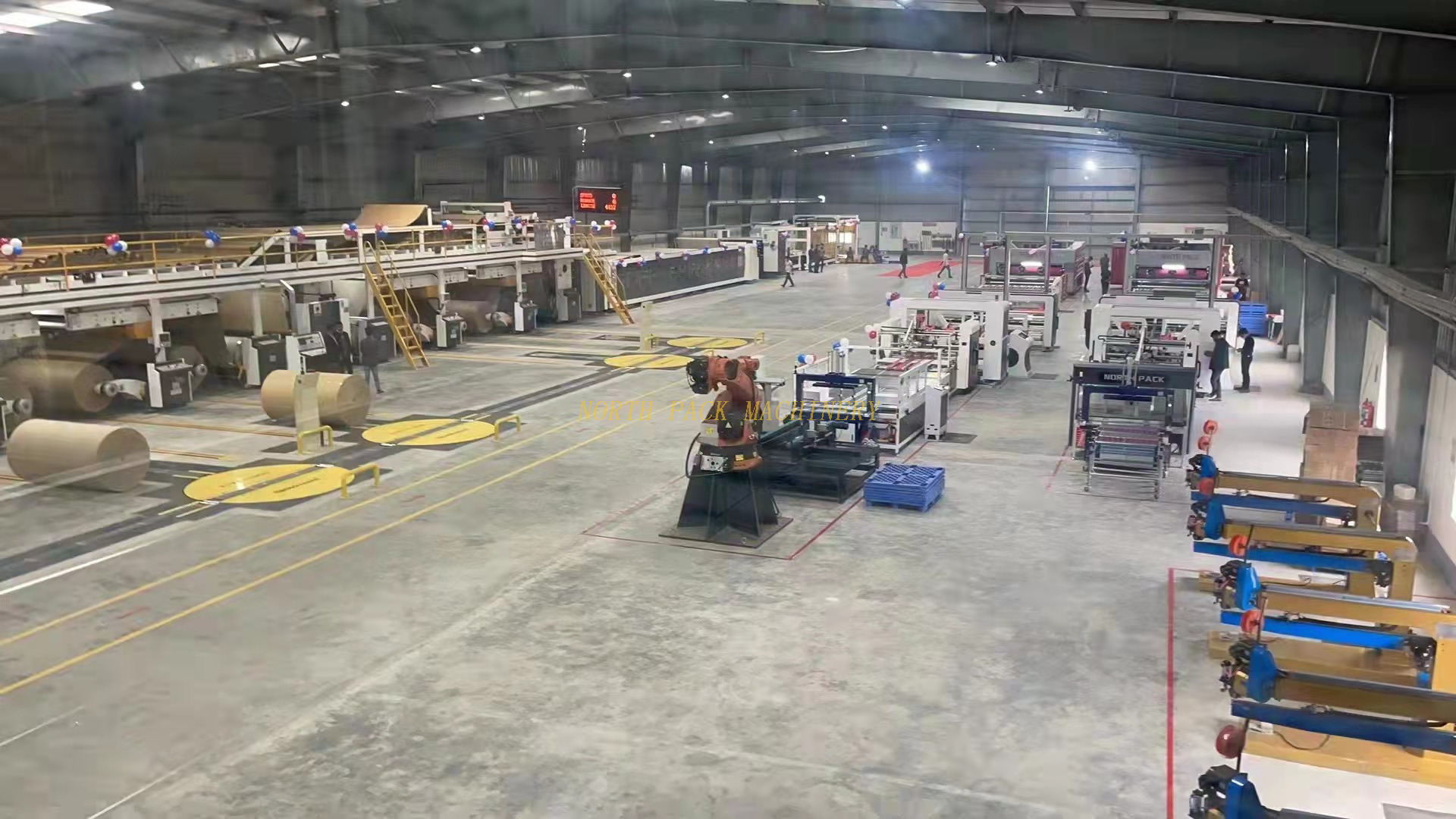

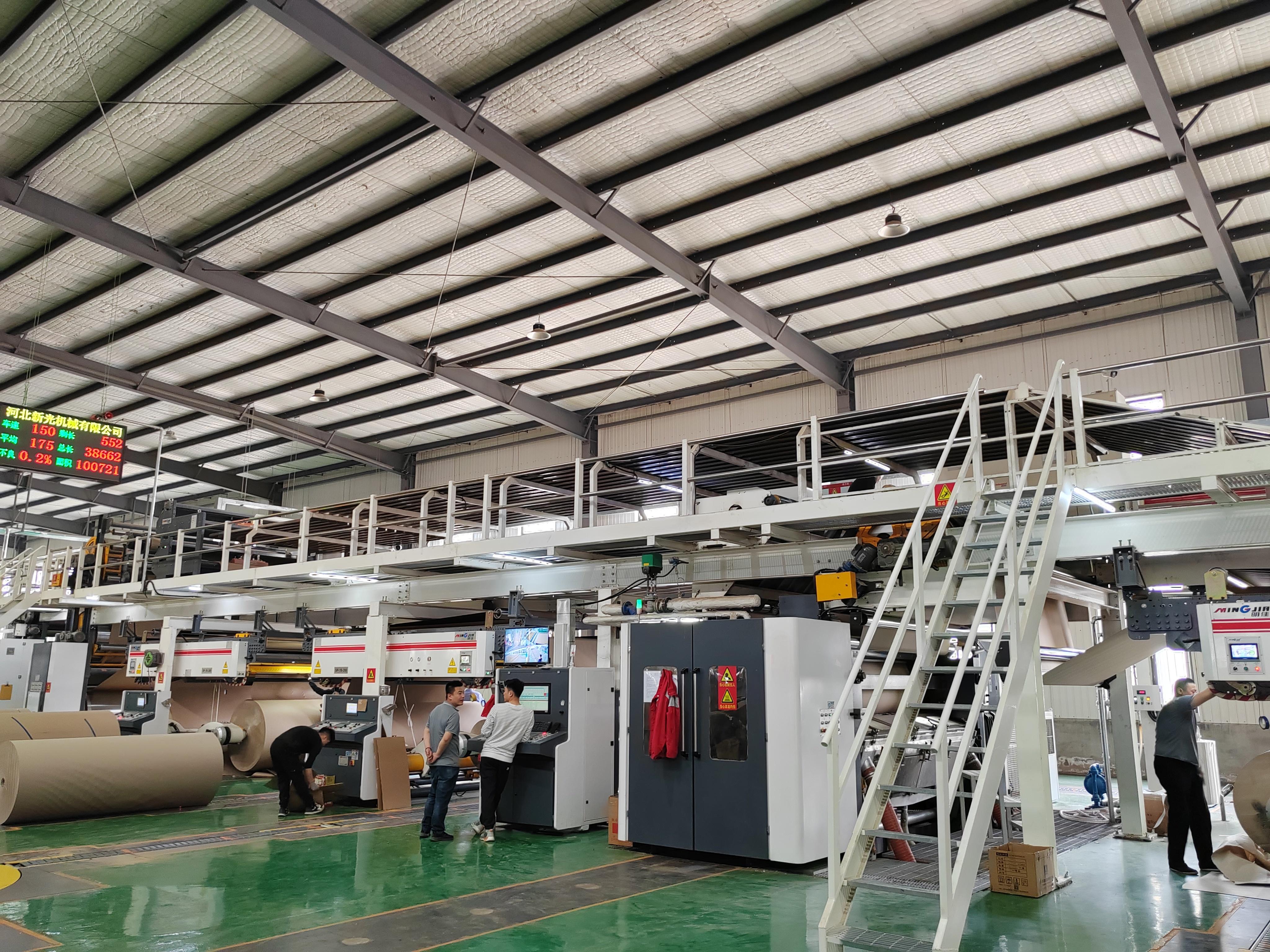

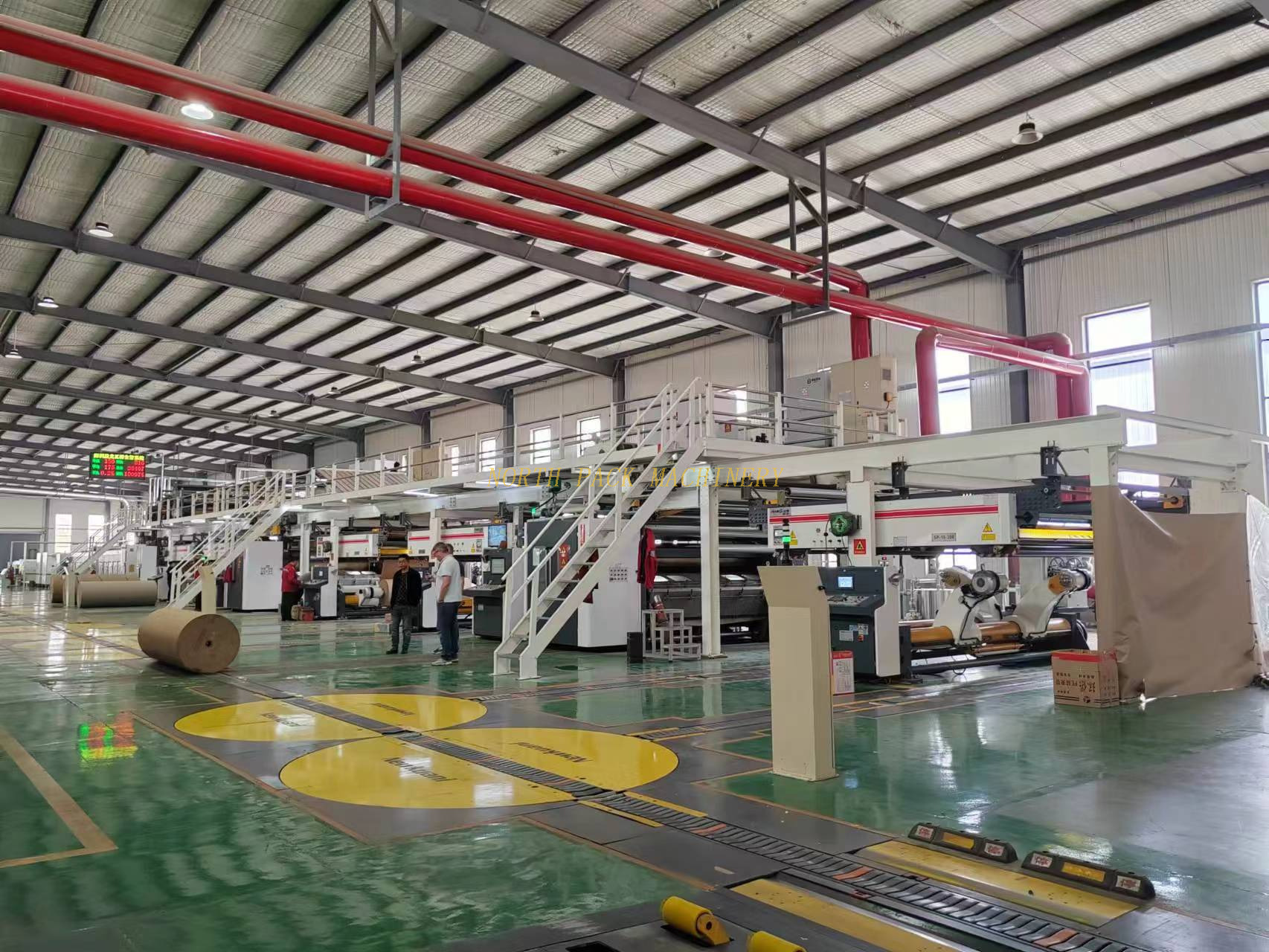

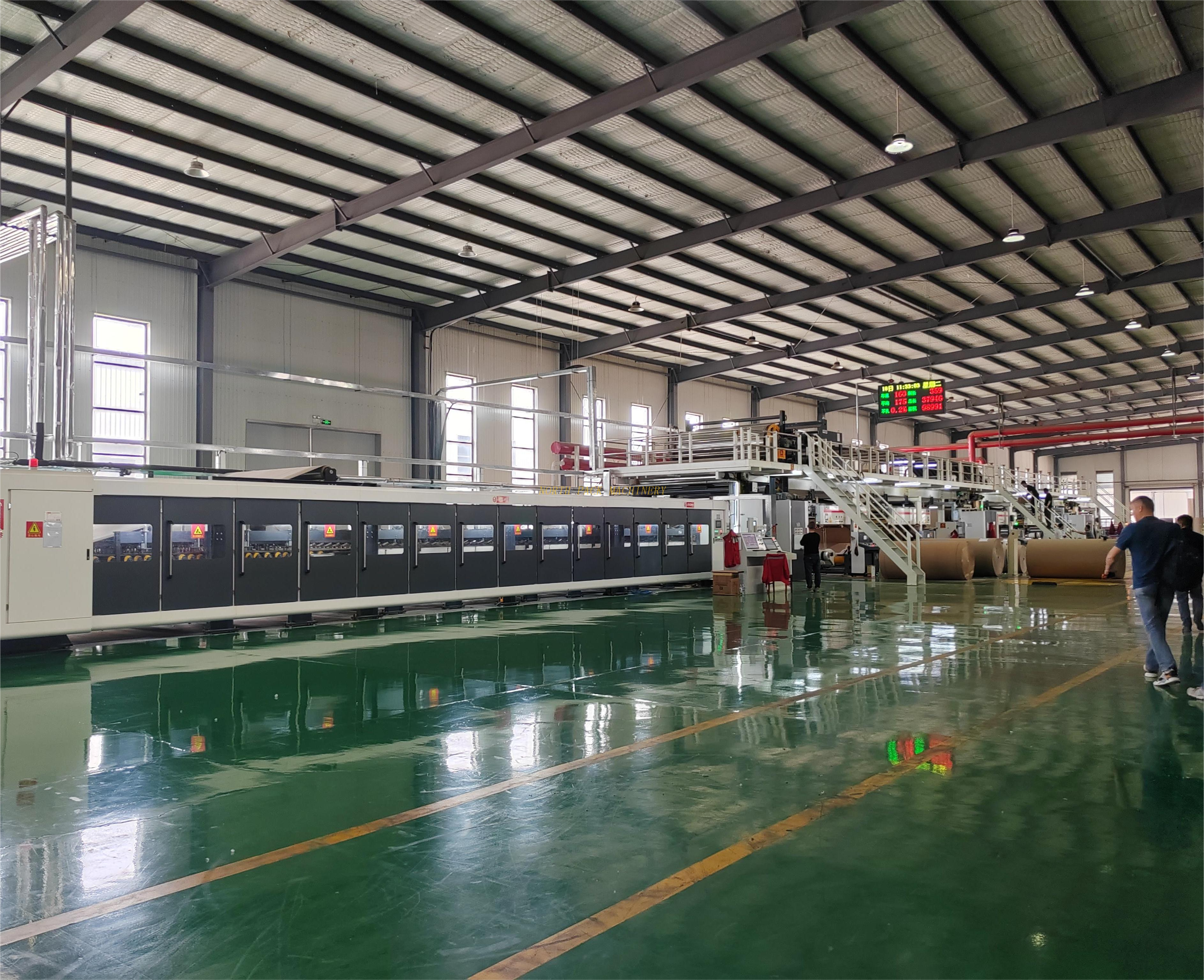

The whole line integrates full-process modules: hydraulic shaftless mill roll stand, preheating , single facer, bridge conveyor, gluing machine, double facer, slitter scorer, NC cut off , sheet stacker, glue making system and t emperature control system, realizing fully automatic continuous operation from raw paper feeding to finished cardboard output without frequent manual intervention. Adopting advanced technologies like variable frequency speed regulation, intelligent temperature control and closed-loop control, the line boasts stable operation, high productivity, firm cardboard bonding, high dimensional accuracy and extremely low waste. It helps packaging factories greatly improve capacity, reduce labor and consumable costs, making it an optimal choice for enterprises to expand production and upgrade high-quality packaging.
Full-process Automation: One-key start-stop and centralized intelligent control simplify operation, reduce labor dependence and cost, suitable for long-term continuous mass production, with production efficiency far exceeding traditional semi-automatic equipment.
High-quality Cardboard Output: Precision corrugating rolls and gluing system ensure regular flute shape and uniform glue coating. The cardboard features tight bonding, excellent compression and burst resistance, no quality defects such as degumming, deformation or flute collapse, complying with export packaging quality standards.
High-efficiency, Energy-saving & Low Waste: Optimized temperature control and transmission design reduce steam and power consumption; precise cutting and closed-loop glue control greatly minimize raw paper and glue waste, lowering unit production cost and improving production efficiency.
Strong Adaptability & Easy Adjustment: Supports quick switching of multiple raw paper grammages, widths and flute types, customizable equipment specifications, convenient model change, meeting diversified production needs of various cardboard types and specifications.
Durable, Stable & Easy Maintenance: The whole machine adopts thickened steel and high-quality accessories, with firm and anti-deformation structure, low failure rate and long service life; modular design facilitates daily maintenance and overhaul, reducing equipment downtime loss.
Main Equipment Composition:

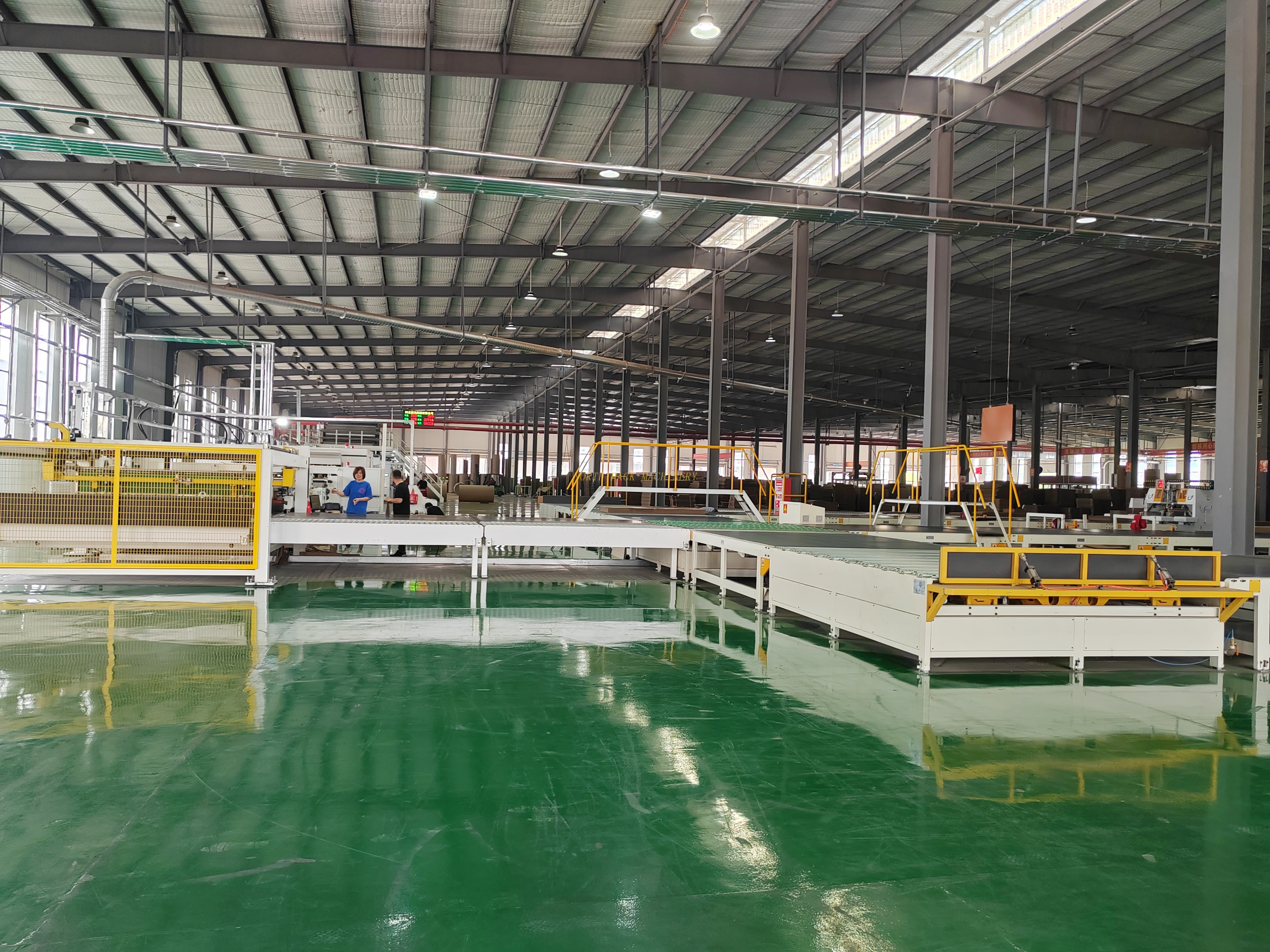

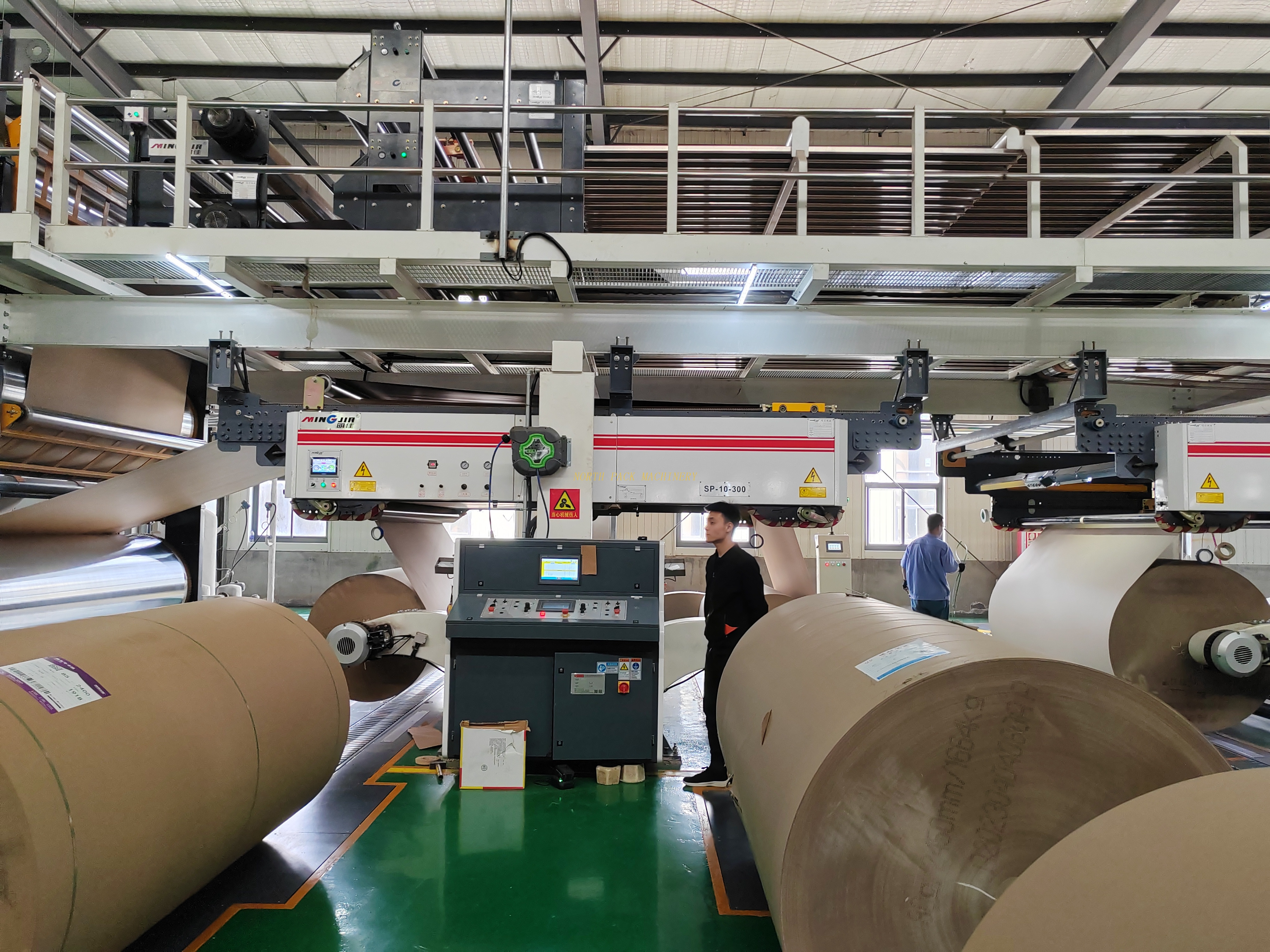

Hydraulic Shaftless Mill Roll Stand → Preheater → Single Facer → Bridge Conveyor → Double Gluing Machine → Double Facer → Slitter Scorer → Cross Cutter → Sheet Stacker → Automatic Glue Making System → Temperature Control & Pneumatic System.
| Parameter Item | Specification Details |
| Effective Width | 1600mm/1800mm/2000mm/2200mm/2500mm（can be customizable） |
| Design Speed | 120-3500m/min（Optional as Demand） |
| Flute Type | A/B/C/E/F/UV Flute, Custom Combined Flute Available |
| Raw Paper Grammage | 70-450g/㎡ |
| Control Mode | PLC Intelligent Touch Screen Control |
| Power Supply | 380V 50/60Hz 3P（can be customizable） |
| Steam Pressure | 0.8-1.3Mpa |
Widely applicable to various carton packaging enterprises, covering 5-ply corrugated cardboard production for e-commerce express, food & beverage, home appliances & hardware, agricultural & sideline products, pharmaceutical & chemical, industrial parts, export trade and other industries, meeting packaging needs of high strength, high load-bearing and high protection.
