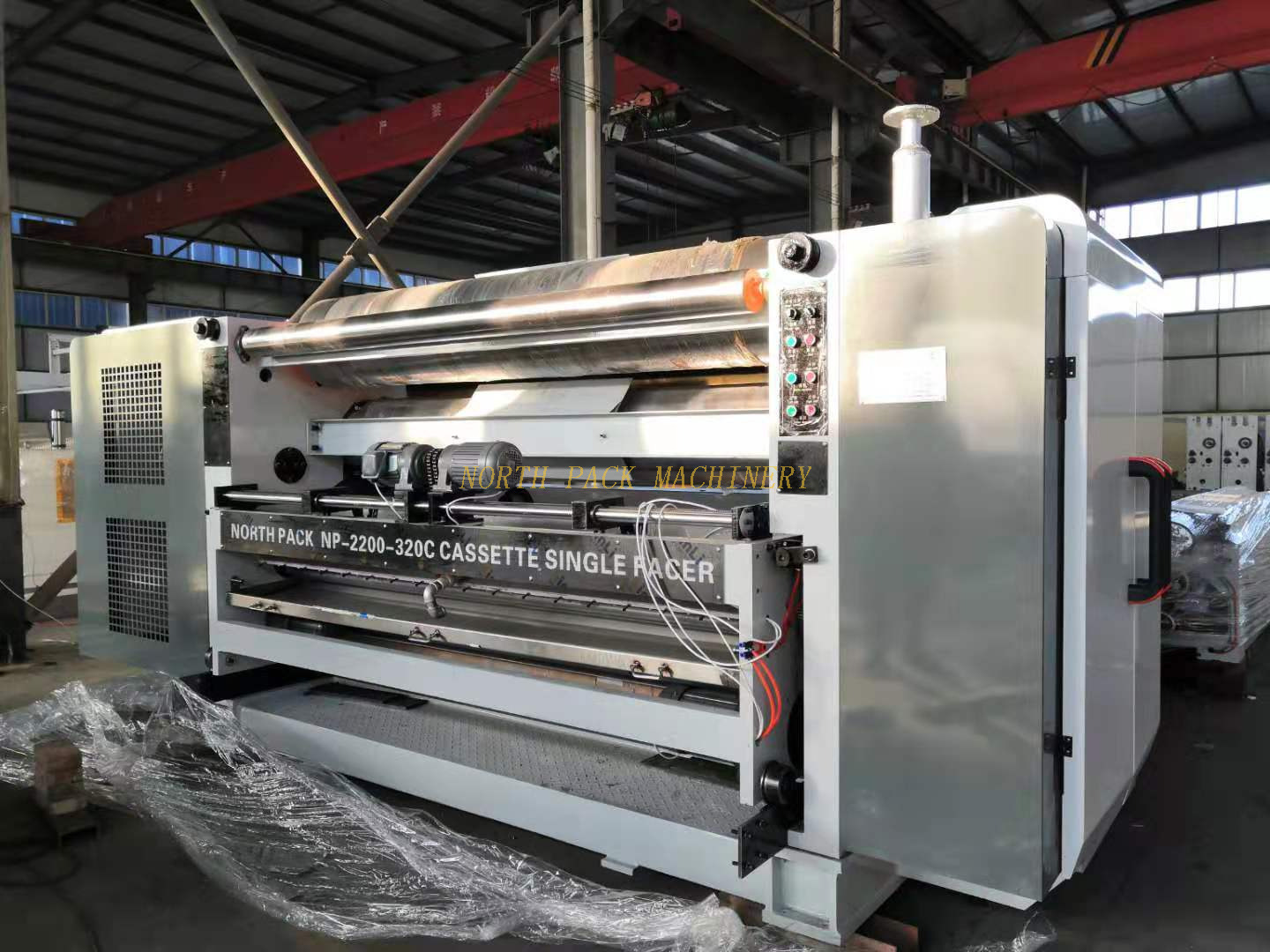

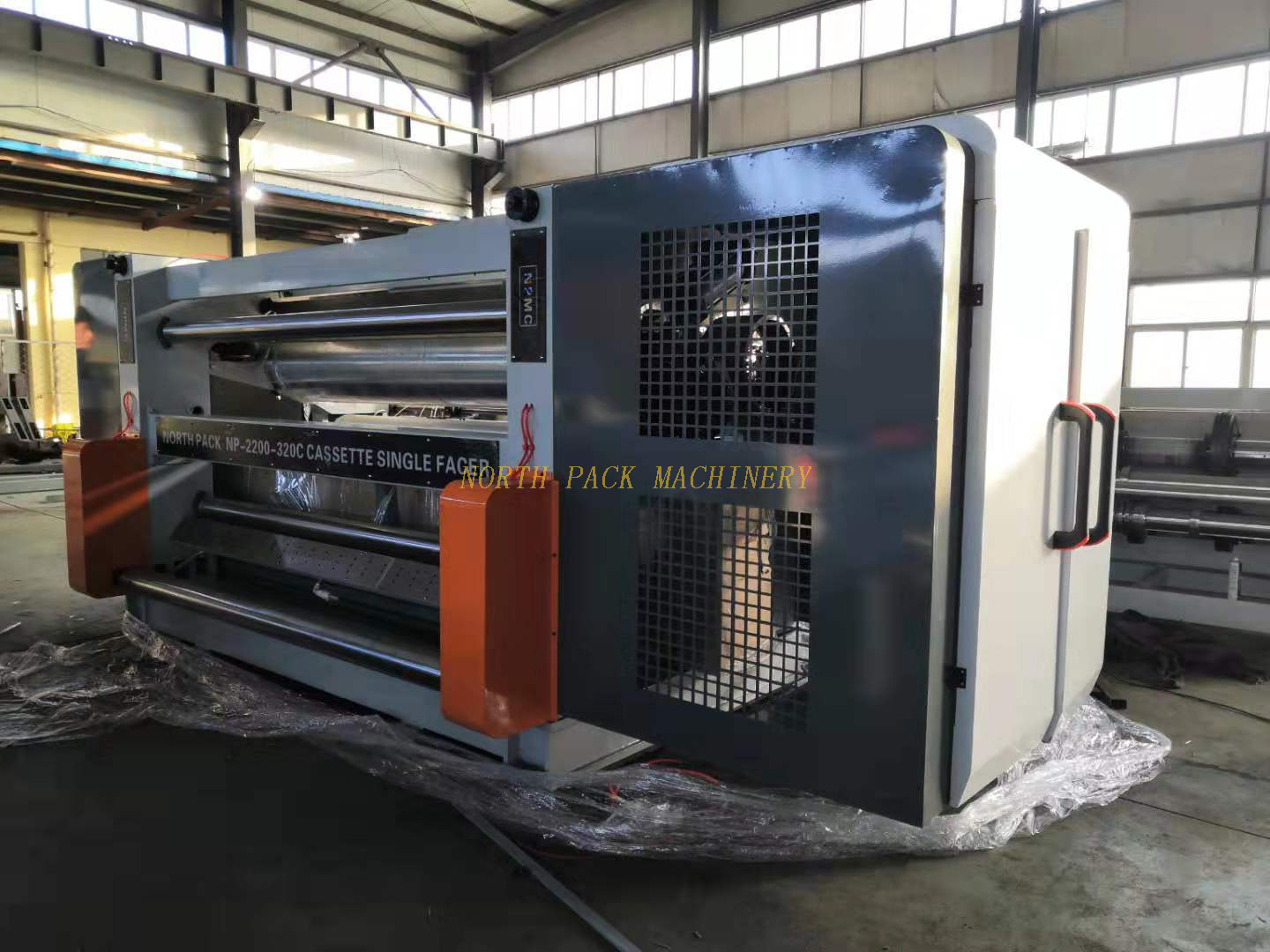

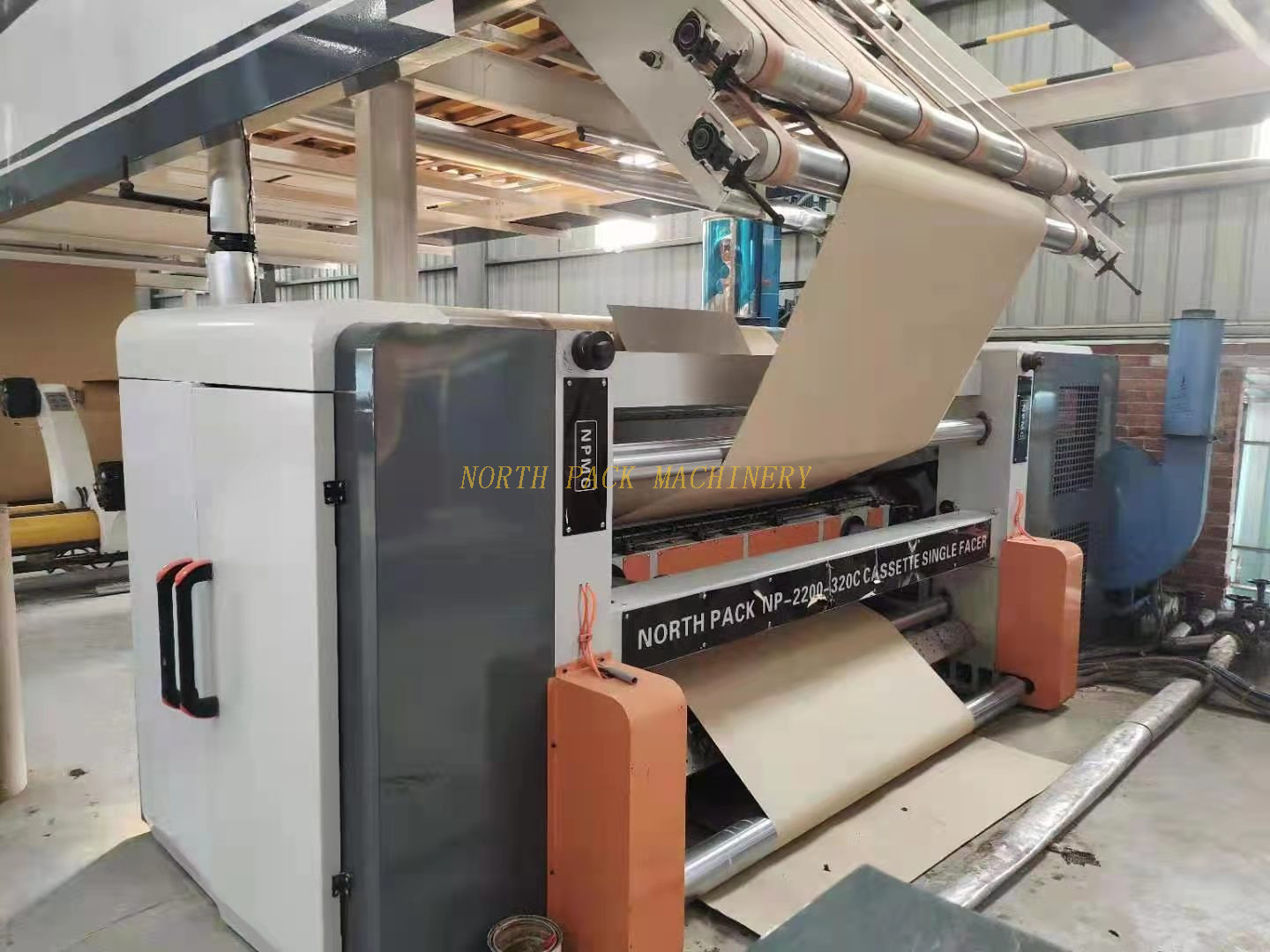

North Pack Cassette Single Facer Machine for Corrugated Cardboard Production Line Fast Change Roller
Structural feature：
Main corrugating roller：￠320mm（According flute differ），pressure roller￠370mm，preheat roller 400mm，gluing roller￠270mm，adjusting roller￠152mm.
★Using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.

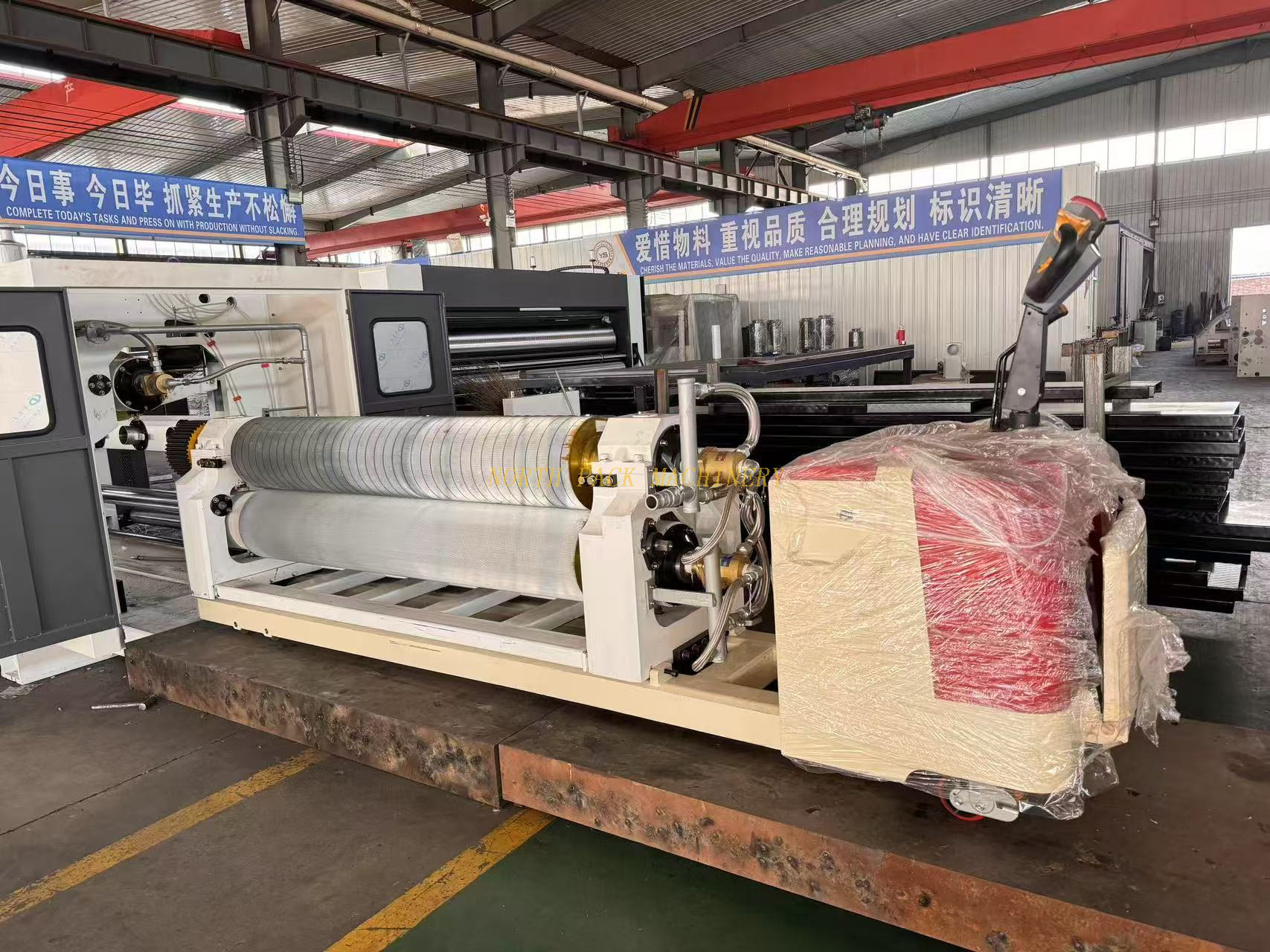

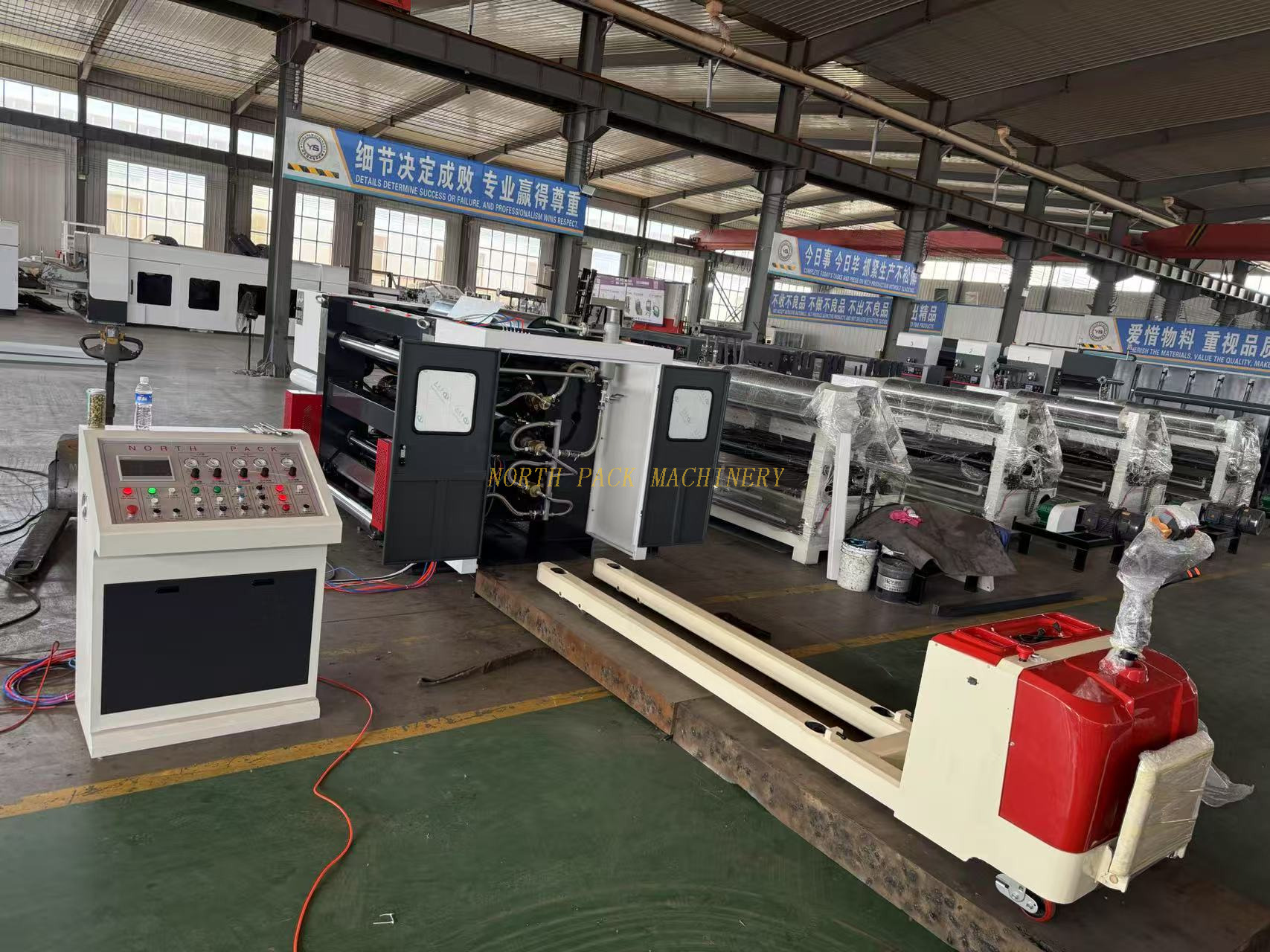

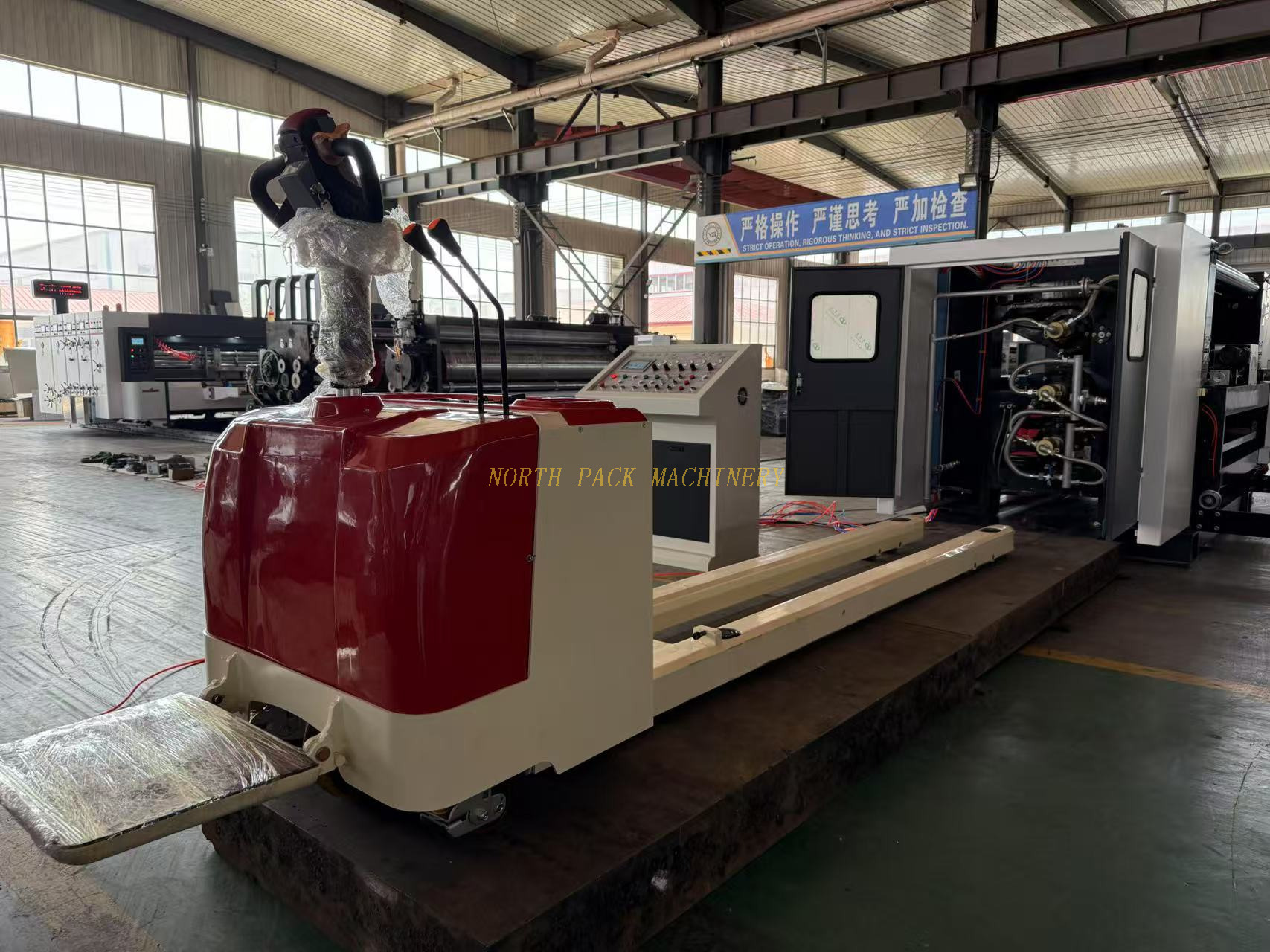

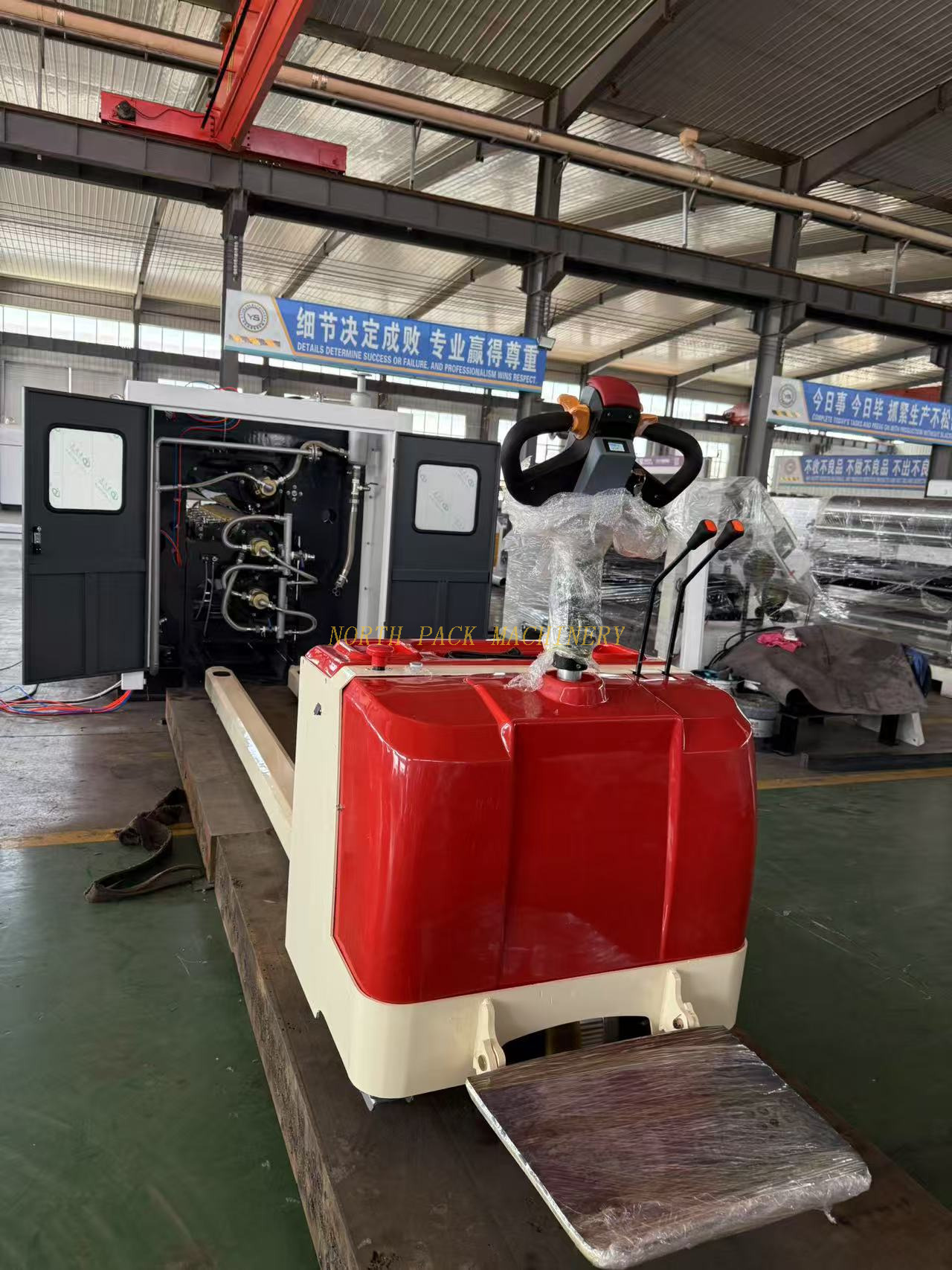

★Quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,put into the machine，and air pressure system will lock it,fixed to the machine base，only need a few buttons can complete the replacement quickly and easily.
★Corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment.
★Corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time.
★Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the motor stops,prevent glue exhausted.
★The moveable type glue unit is convenient to clean and maintain.
★Easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
★Built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
★Main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.
★Main, vice corrugating and pressure roller using HRB bearings, the cylinder is made of Airtac
Main component parameters：
Part name Craftsmanship | Specification | Material | Surface treatment |
Corrugated roller | Main roll￠320mm | 50CrMAo alloy steel |
|
Pressure roller | ￠370mm | 45＃ steel | Hardened round grinding chrome plating polishing |
Glue roller | ￠270mm | 45＃ steel | Round grinding and pressing pit mesh chrome plating |
Adjusting roller | ￠152mm | 45＃ steel | Round grinding chrome |
Preheat roller | ￠400mm | Q235B | Round grinding chrome |
Paper guide roller | ￠124 mm | 45＃ steel | Round grinding chrome |
Sample for reference:
NORTH PACK the flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.
Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.
NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
