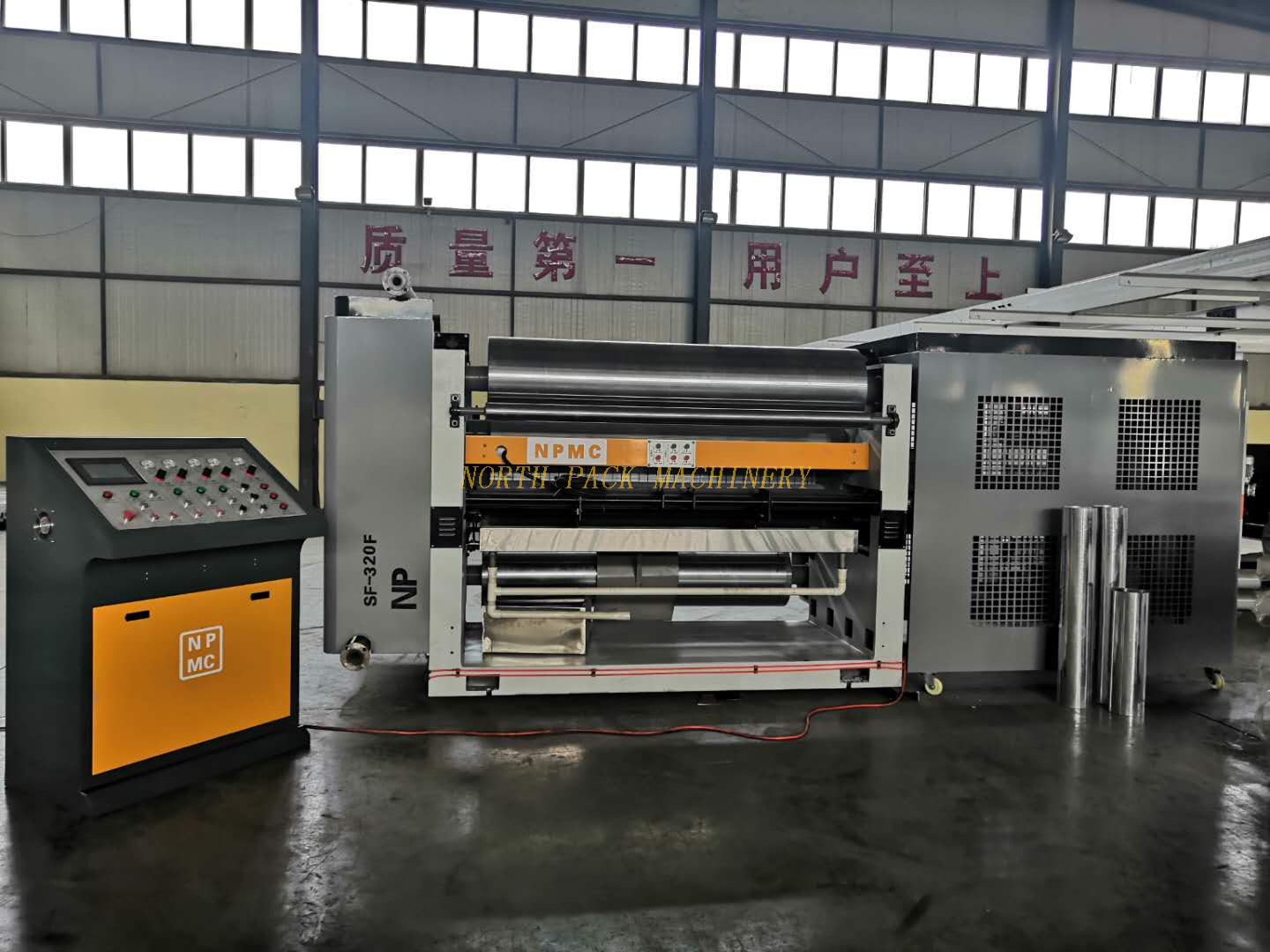

High Speed Automatic Single Facer Corrugated Roll Production Line Packaging Machine Automatic Plant
Feature：
High Efficiency: Production speed up to 100-250 m/min, meeting large order demands.
Stable & Reliable: Key components from world-renowned brands ensure low failure rate and long service life.
Energy Saving: Frequency drive and heat recovery system reduce energy consumption and operating costs.
Intelligent Control: PLC + touch screen interface with adjustable parameters and remote monitoring.
Flexible Configuration: Choose different widths, speeds, and add-ons based on capacity needs.
Premium Output: High flatness and precise flute formation, ideal for premium printing and fine packaging.

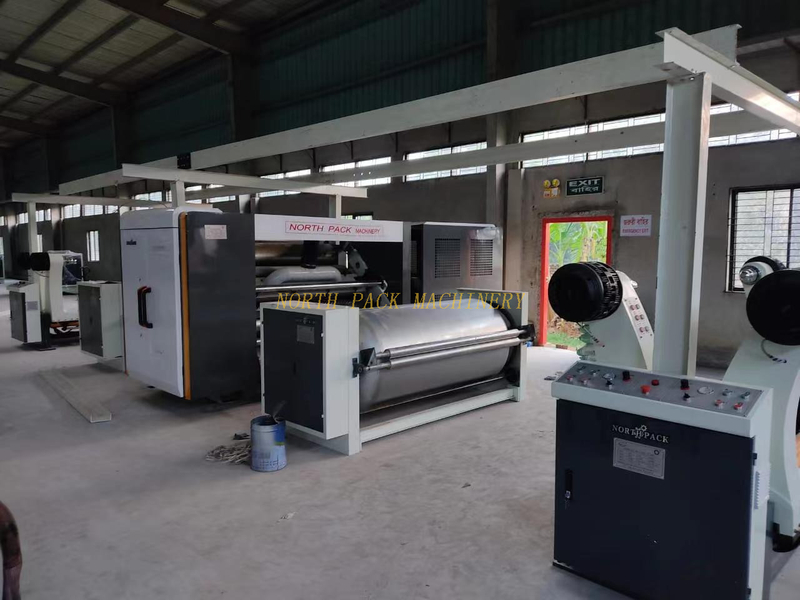

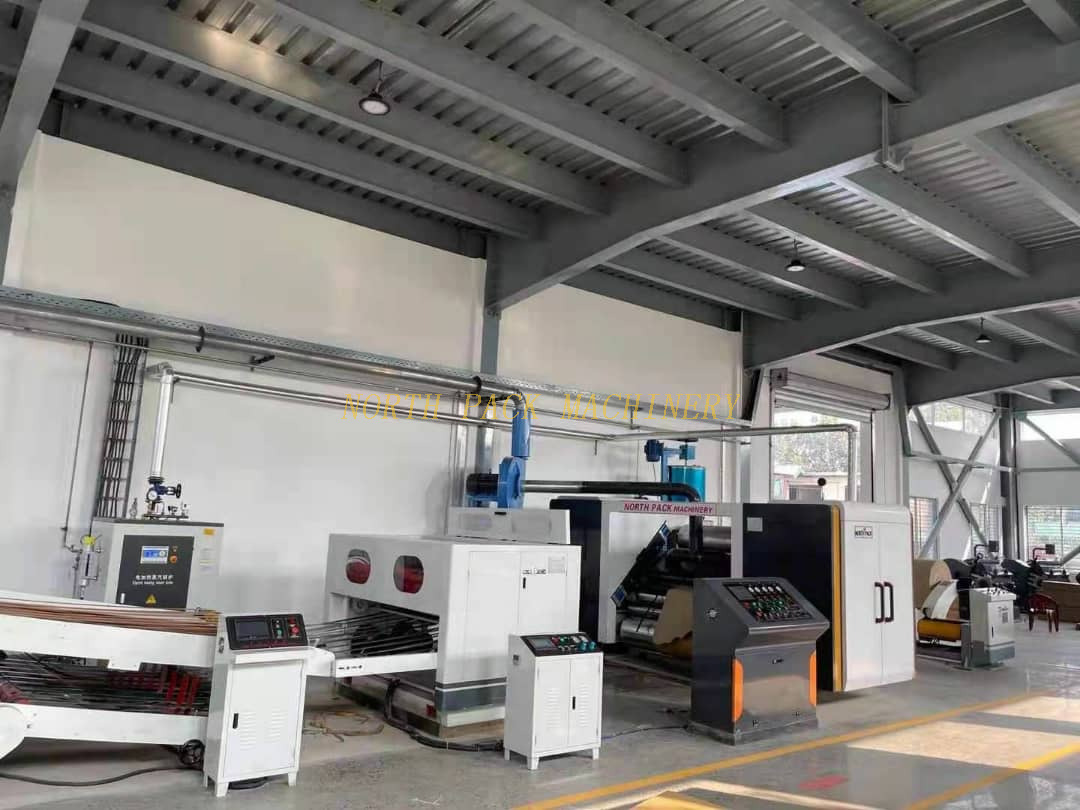

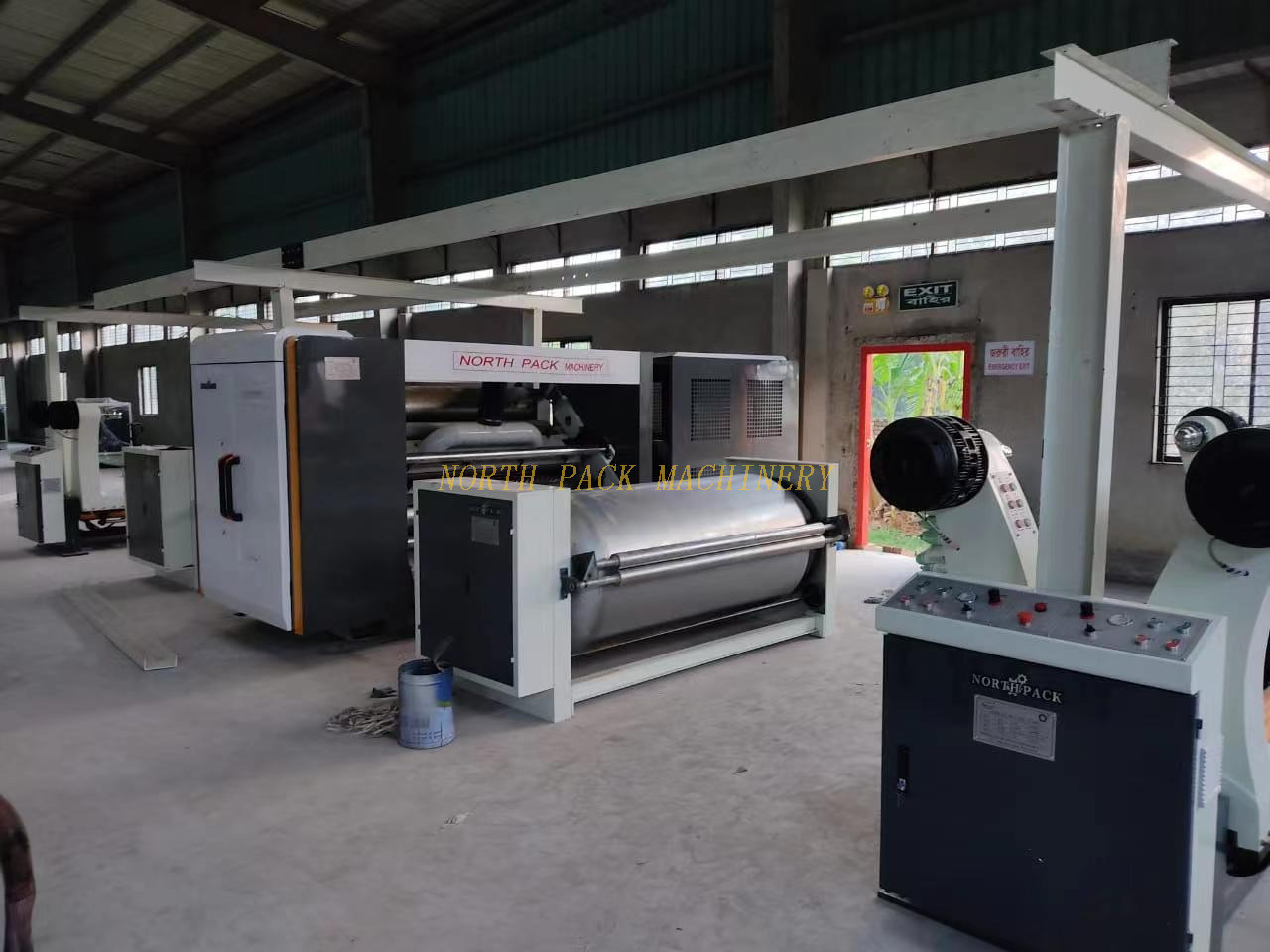

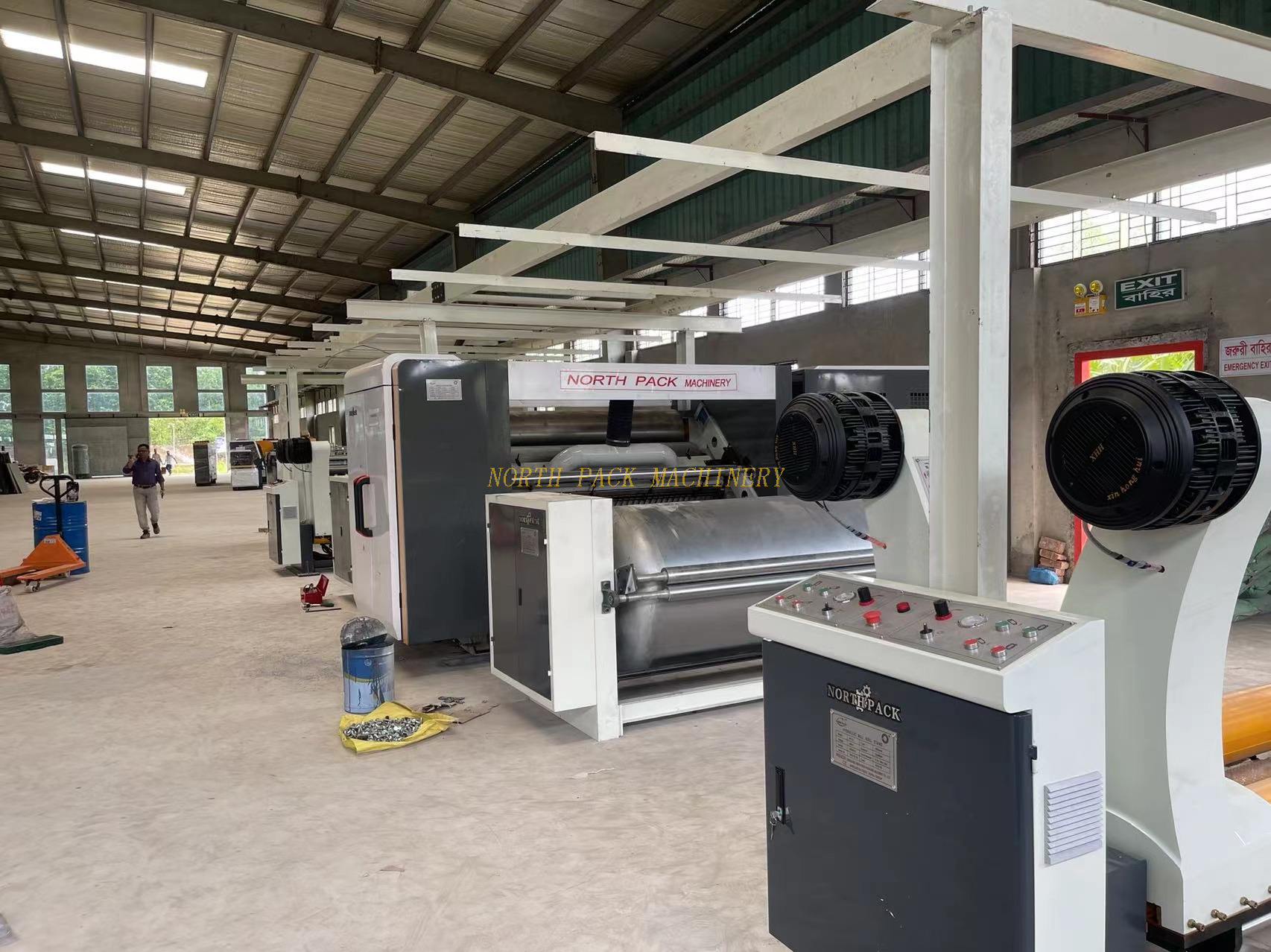

Ideal for small & medium packaging plants, the single facer corrugated line is designed to produce single-wall corrugated cardboard efficiently and stably. This compact production line integrates paper feeding, preheating, single facer forming, gluing, cooling, slitting, scoring and cutting into one complete system.
With stable operation, low energy consumption and easy maintenance, it supports common flute types including A, B, C, E, F flutes. The line features user-friendly control, high automation, small footprint and high output, helping manufacturers improve productivity while reducing labor and material costs.
Suitable for carton packaging, express packaging, food packaging, industrial packaging and more, it is a cost-effective solution for starting and upgrading corrugated cardboard production.
Main Parameter:
| No. | Item | Specification |
| 1 | Line Type | Single Wall Corrugated Board Production Line |
| 2 | Working Width | 1800 mm |
| 3 | Max Speed | 80 - 200 m/min |
| 4 | Flute Types | A / C / B / E |
| 5 | Paper GSM | 90 - 250 g/m²(facer paper & core paper) |
| 6 | Max Paper Roll Dia. | 1500 - 1600 mm |
| 7 | Heating Method | Steam / Electric |
| 8 | Control System | PLC + Touch Screen |
| 9 | Total Power | around 120 - 180 kW |
| 10 | Power Supply | 380V / 50Hz / 3Phase |

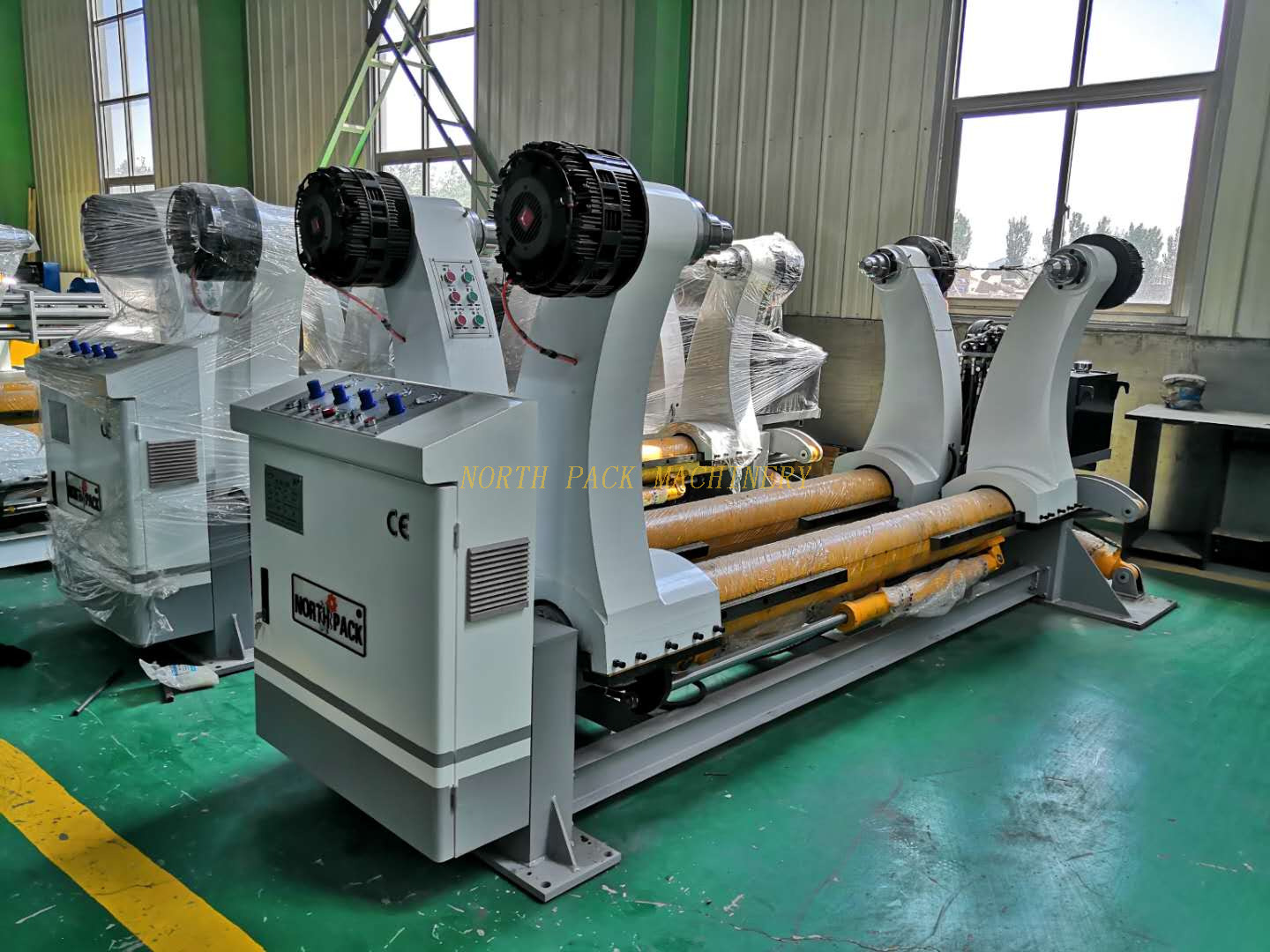

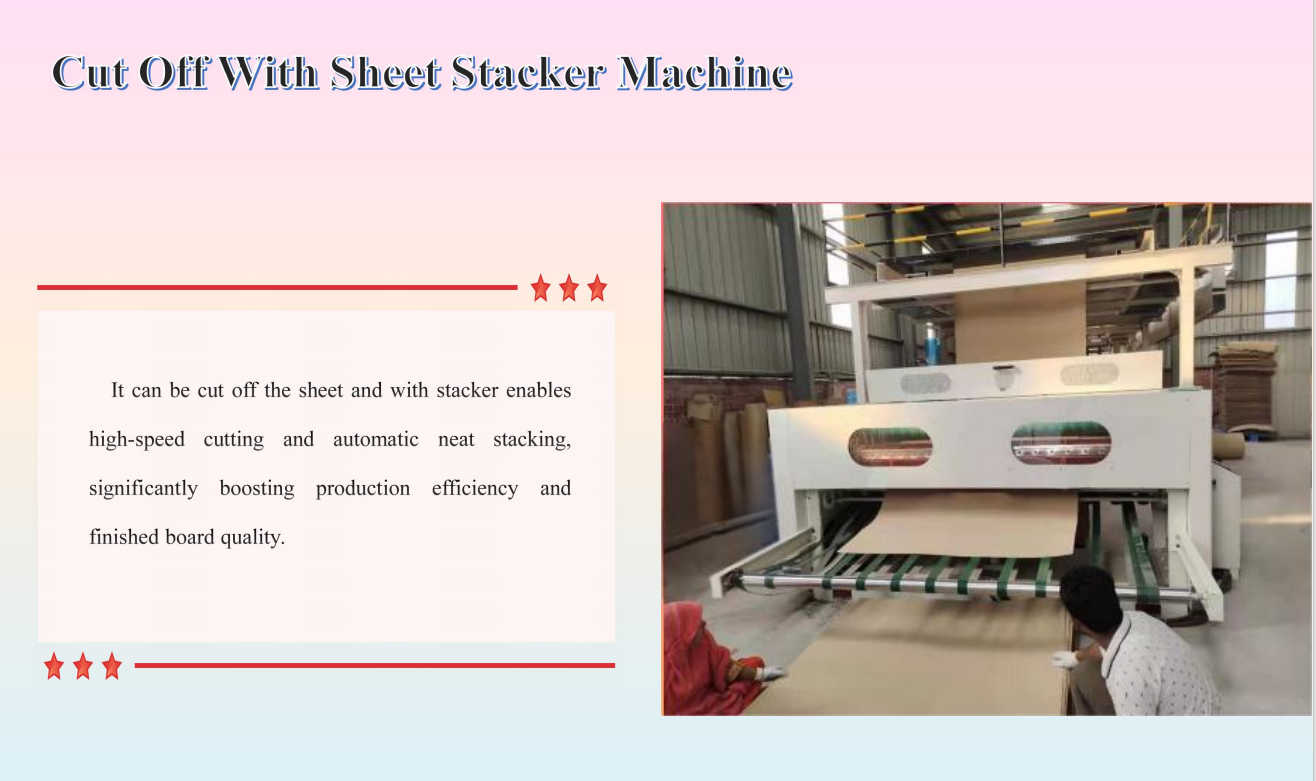

| 11 | Main Units | Mill stand → single facer → bridge → sheet cutter & stacker |
| 12 | Footprint | Around 25 ~ 35 m × 8 ~ 12 m |
| 13 | Capacity | Around 30 - 80 ten M3 / shift |
| 14 | Applications | Express packaging, food and beverage boxes, light industrial product packaging, display boxes, etc |
Sample for reference:
NORTH PACK the flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.
Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.
NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
