Automatic lead-edge feeding flexo printing slotting die-cutting machine
Function of Feeding Unit:
-Control faceplate function button is concentrated and simple with convenient operation
- Electrically-controlled connecting and separating every unit, with alarm to secure operator by consecutive ringing during its processing.
-The Left and right baffles ,kick feeding, back baffle adopt manual adjustment
-Brush and the dedusting device can clear away the impurity from paper face to improve the printing quality.
-The mainframe is controlled by the frequency conversion, with steady start-up and running , saving about 30% of the power.
-Infrared photoelectricity counter presets the order processing quantity.
- One lock function for whole machine avoids damage caused by error operation(The mainframe can't start up when every unit hasn't been connected.)
-Pressure model elastic feeding rubber roller,which can't to damage the strength of corrugated cardboard
-Outside baffle add the flap function,which made the cardboard orientation more exact,avoid to waste.
Functions of Printing Unit:
-All the axles and rollers are made of high-quality steel, rectified by computer dynamic balance, eliminating centrifugal force , plated with rigid chrome and grinded surface.
-Printing phases adopt the planetary gear surface and digital electricity 360oadjustment(both stopping and running can be adjusted.)
-Printing roller landscape orientation is controlled by hand of a scope of 10mm.
-Pneumatic septum pump supplies the ink and the ink cup shows the quantity
-Plate-hanging device with whole hanging and half hanging slotting notch, foot switching controlling the clockwise and anticlockwise rolling, convenient to fixing and taking down the plate.
- Fixed the oil interval ,printing pressing roller and leading roller interval are adjusted and fixed by self-lock worm wheel and worm device adjustment and fix.
-Printing phase fixing adopts pneumatic brake structure, the brake structure will stop the mainframe running when the every unit the free-spanner self-lock worm wheel and worm device adjustment and fix.
-Reposition function,before reposition ,company memory printing position ,it can automatic reset after reposition .
-Rubber roller and the surface wrapped wear rubber ,special grinding effect of transfer ink.
-Steel anilox roller , steel face chrome ,pressure the anilox and rigid chrome.
-Pneumatic plate-uplifting device functions as the anilox roller pneumatically separates with the stopping of the mainframe, automatically smoothing the oil to avoid dried oil.

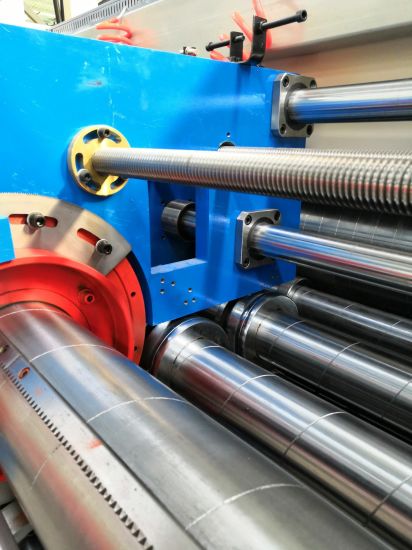

Functions of Slotting Unit:
-Slotting phases adopt the planetary gear surface and digital electricity 360o adjustment (both stopping and running can be adjusted.)
-Slotting tool rest, trace-pressing wheel and horizontal moving adopts manual mechanic joint adjustment
-The height of the box size was adjustment synchronous .
- Pressure interval was used the free-spanner self-lock worm wheel and worm device adjustment and fix. .
-The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
-The slotting knife is made of high-quality alloy steel, grinded after heat treatment, with excellent rigidity and tenacity and long life of using.
-It could be equipped with portable punching die holder.
-Option : Computer double shaft slotting adjustment.
Functions of Die Cutting Unit:
1.Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
2.Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don't die cut, this can lighten machine load and increase rubber roller and die knife life.
3.Matching with feeding system, it with auto up and down device, the mould roller will up when feeding paper. the mould roller will down when stop feeding paper. To make sure every paper die cut correctly.
4.The mechanical transmission rubber roller move 40mm in left and right side. It also with wear and tear regular could increase the life of rubber roller.
5.Die cut phase adopt phase device and electric digital 360 degree adjustment.
6.Machine with rubber amend device, the rubber roller can be used after many times amend. Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination. Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our FAQ
professional machine making team and strict QC team, we will
also send you our manual and video, what you need to do is just
learn some basic thing such as machine maintenance.
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
