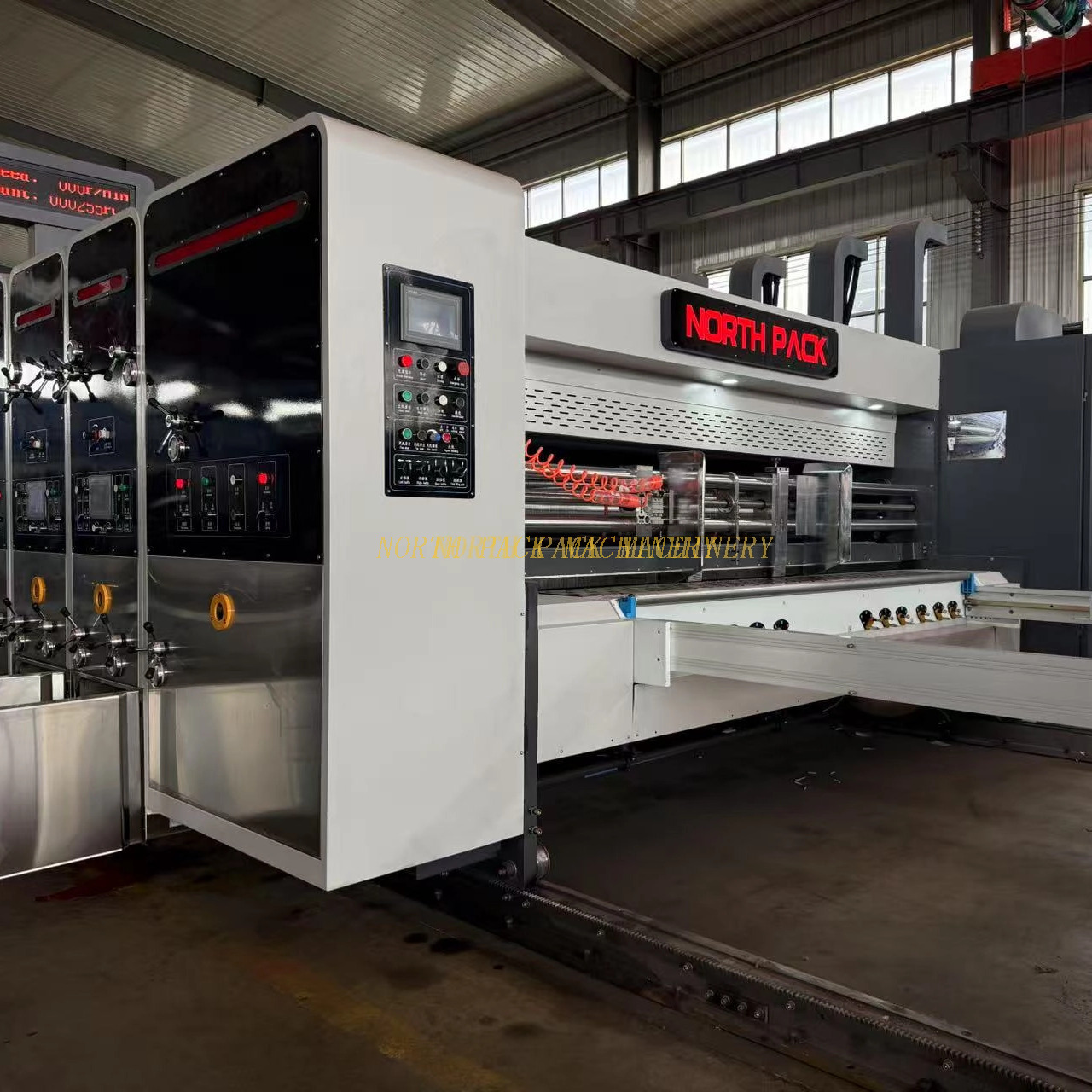

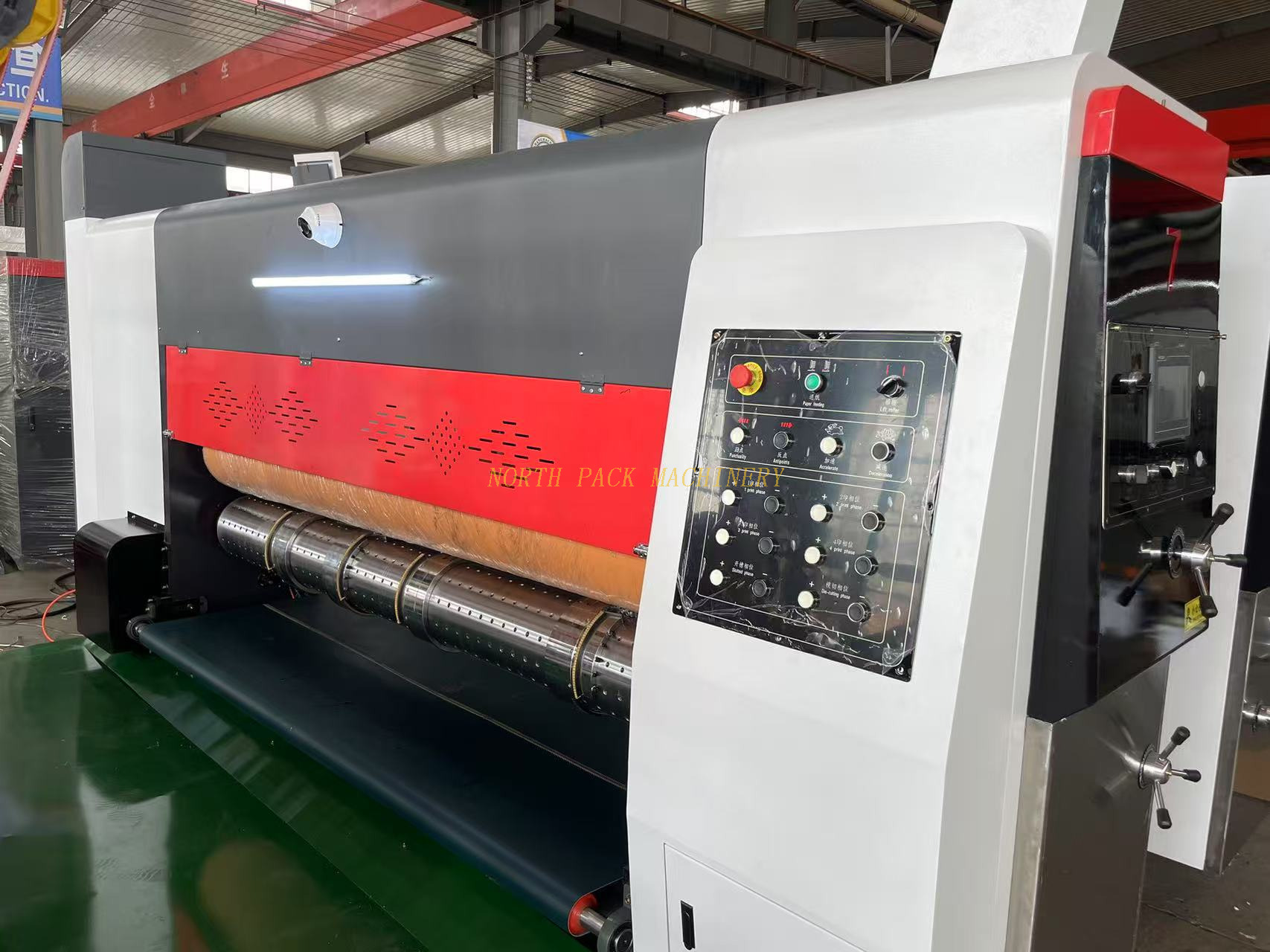

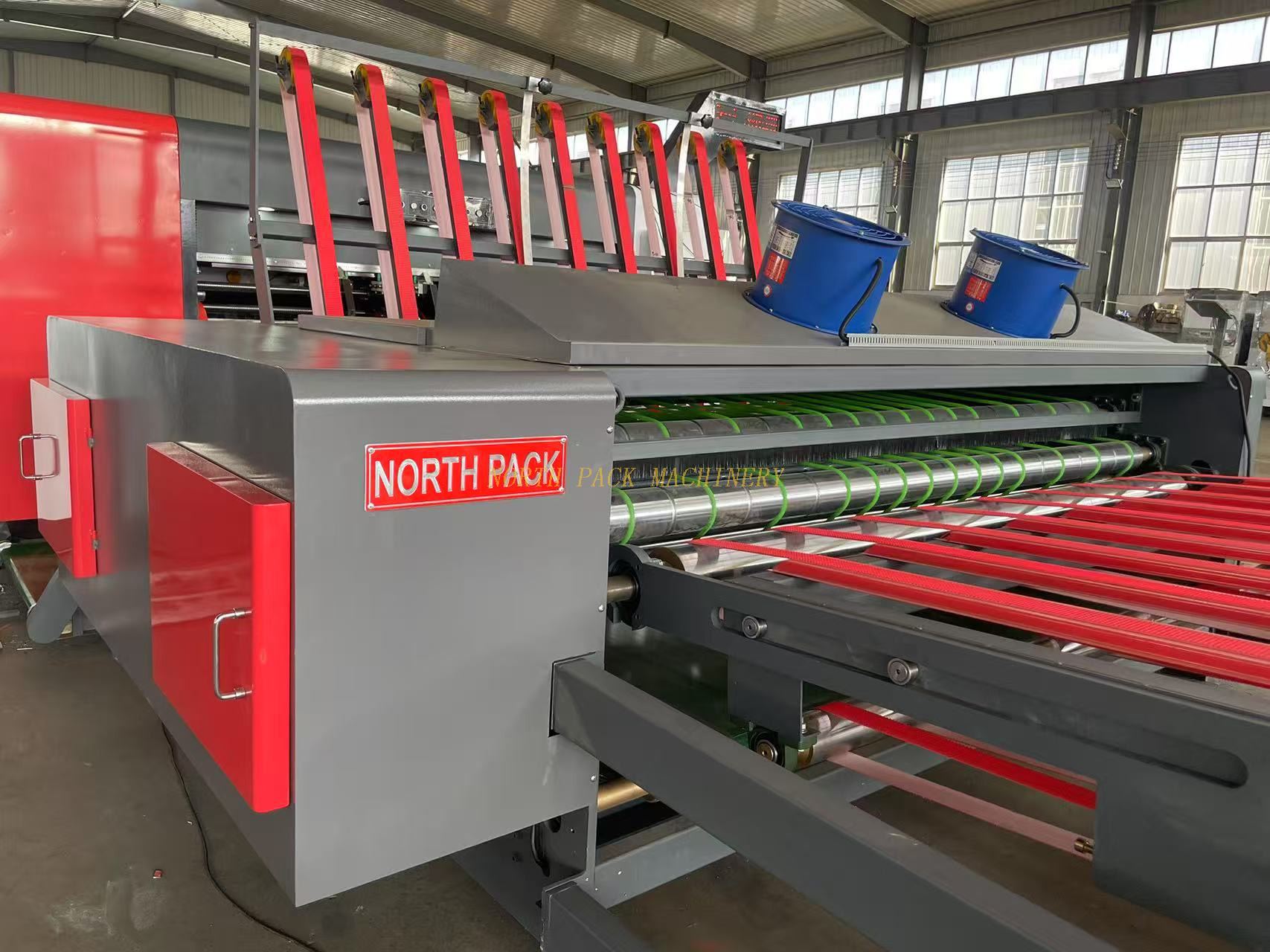

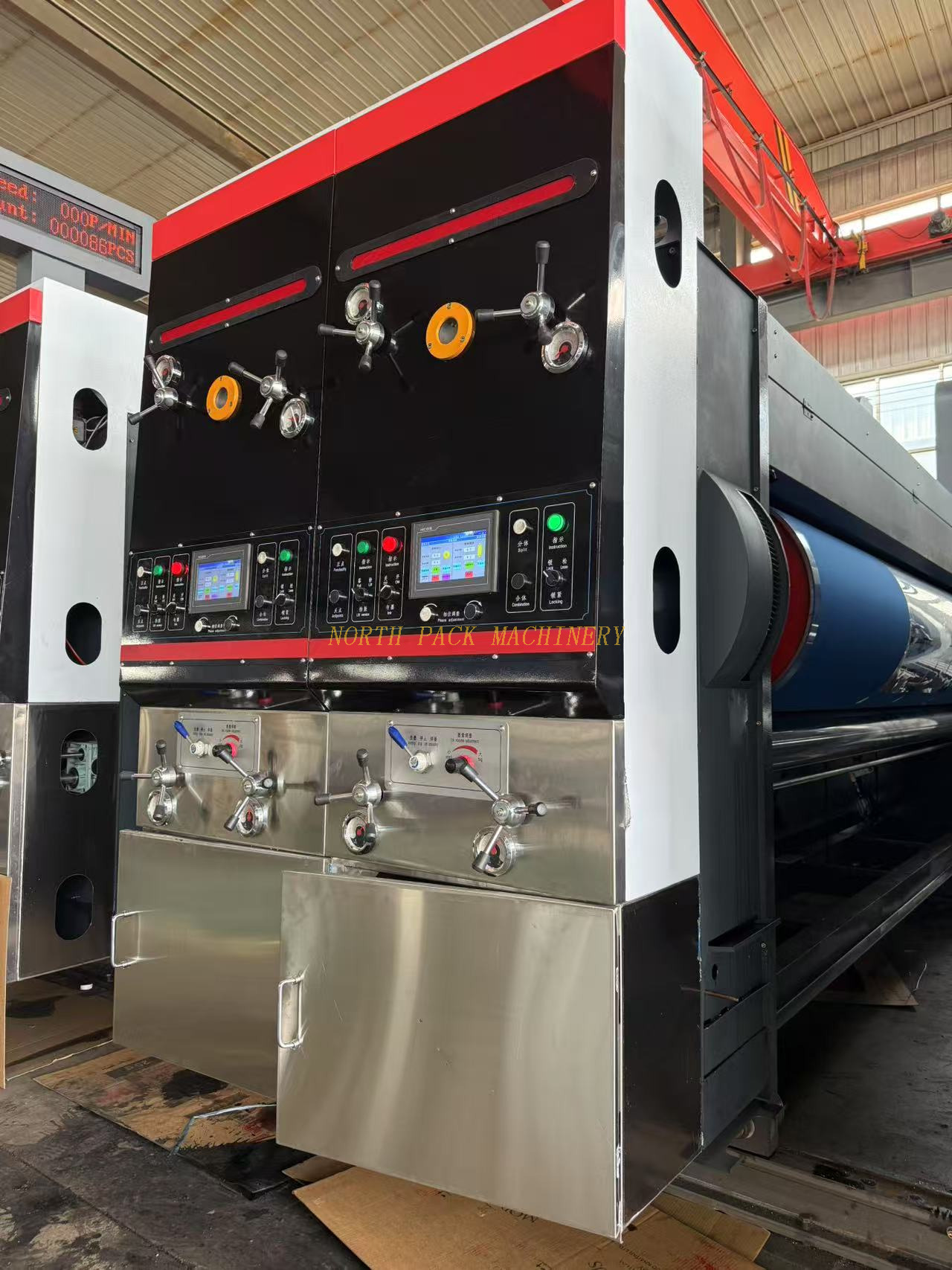

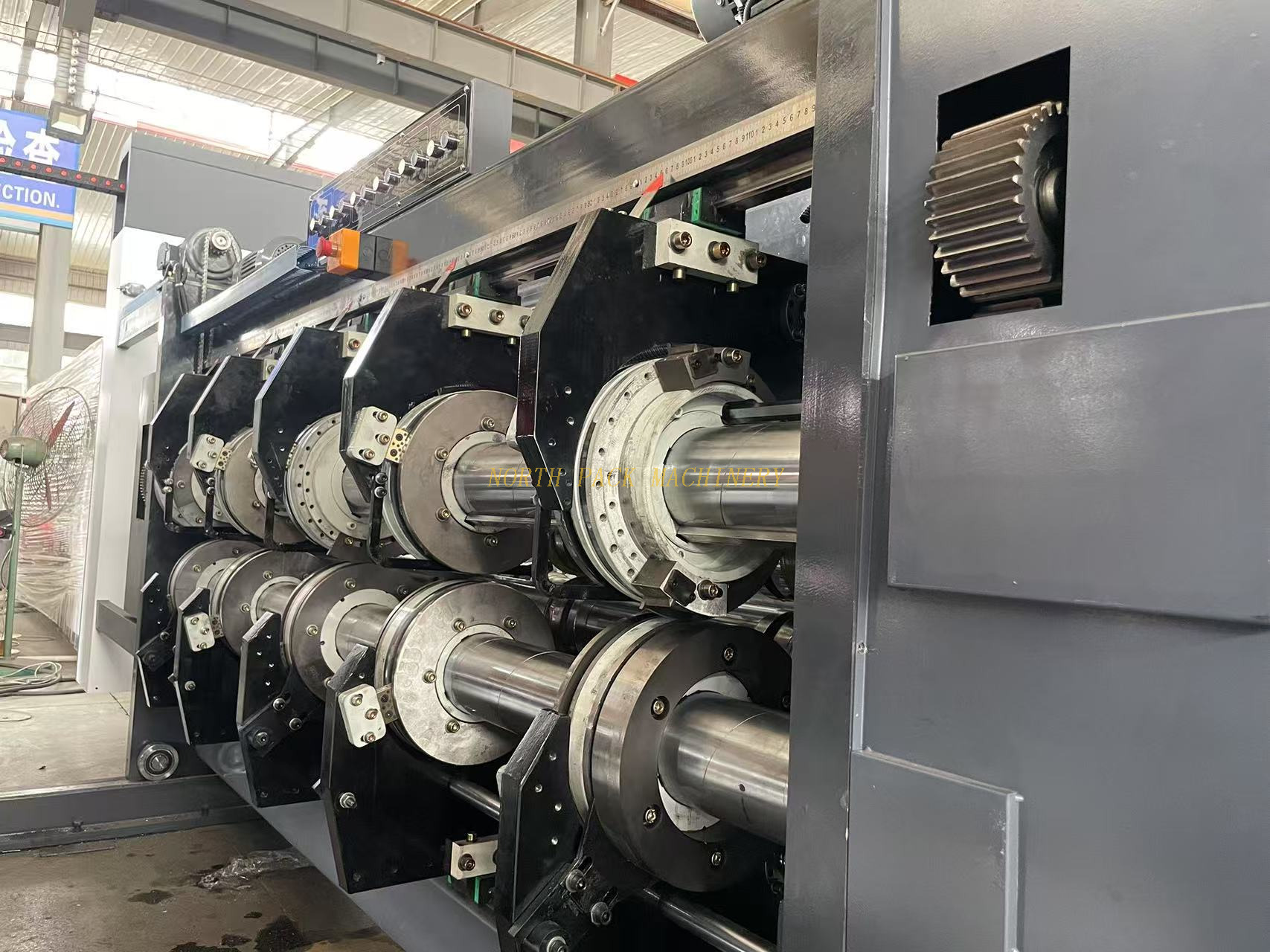

North Pack High Speed Flexo Printer Computer Slotter Die Cutter Machine With Vibrator Stacker
Feature:
⚫ Full computer control, remote maintenance, breakdown self-check.
⚫ Full computer slotter moving automatic adjustment system.
⚫ All electric element chooses Europe standard parts
⚫ All gears 80 thickness, material 20CrMnTi.
⚫ All roller two times balance treatment.
⚫ All wallboard and other part adopt processing center production
⚫ High quality anilox roller and rubber roller. Customer can choose ceramic roller with
doctor blade.
⚫ All printing units adopt short ink alarm system and press ink system.
⚫ Planet gear design, frequency control phase. Adjust fast and high precision.
⚫ All drive gear adopts free key link, eliminate gap.
Parameter:
MAIN PARAMETER |
Model | 920 | 1224 | 1228 | 1424 | 1428 | 1624 | 1628 |
Max.design speed(pcs/min) | 180 | 150 | 150 | 150 | 150 | 120 | 120 |
Working speed (pcs/min) (according cardboard size and printing) | 0-150 | 0-120 | 0-120 | 0-120 | 0-120 | 0-100 | 0-100 |
Max feeding size(mm) | 900x2000 | 1200x2400 | 1200x2800 | 1400x2400 | 1400x2800 | 1600x2400 | 1600x2800 |
Max printing size(mm) | 850x1800 | 1150x2200 | 1150x2600 | 1350x2200 | 1350x2600 | 1550x2200 | 1550x2600 |
Min.feeding size(mm) | 280x580 | 360x700 | 360x700 | 380x700 | 380x700 | 420x700 | 420x700 |
Min slot size | Reverse | 235x65 | 270x65 | 270x65 | 270x65 | 270x65 | 270x65 | 270x65 |
Positive | 135x135 | 155x155 | 155x155 | 155x155 | 155x155 | 155x155 | 155x155 |
Standard printing plate thickness | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm |
Sample for reference:
NORTH PACK the flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.
Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.
NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
